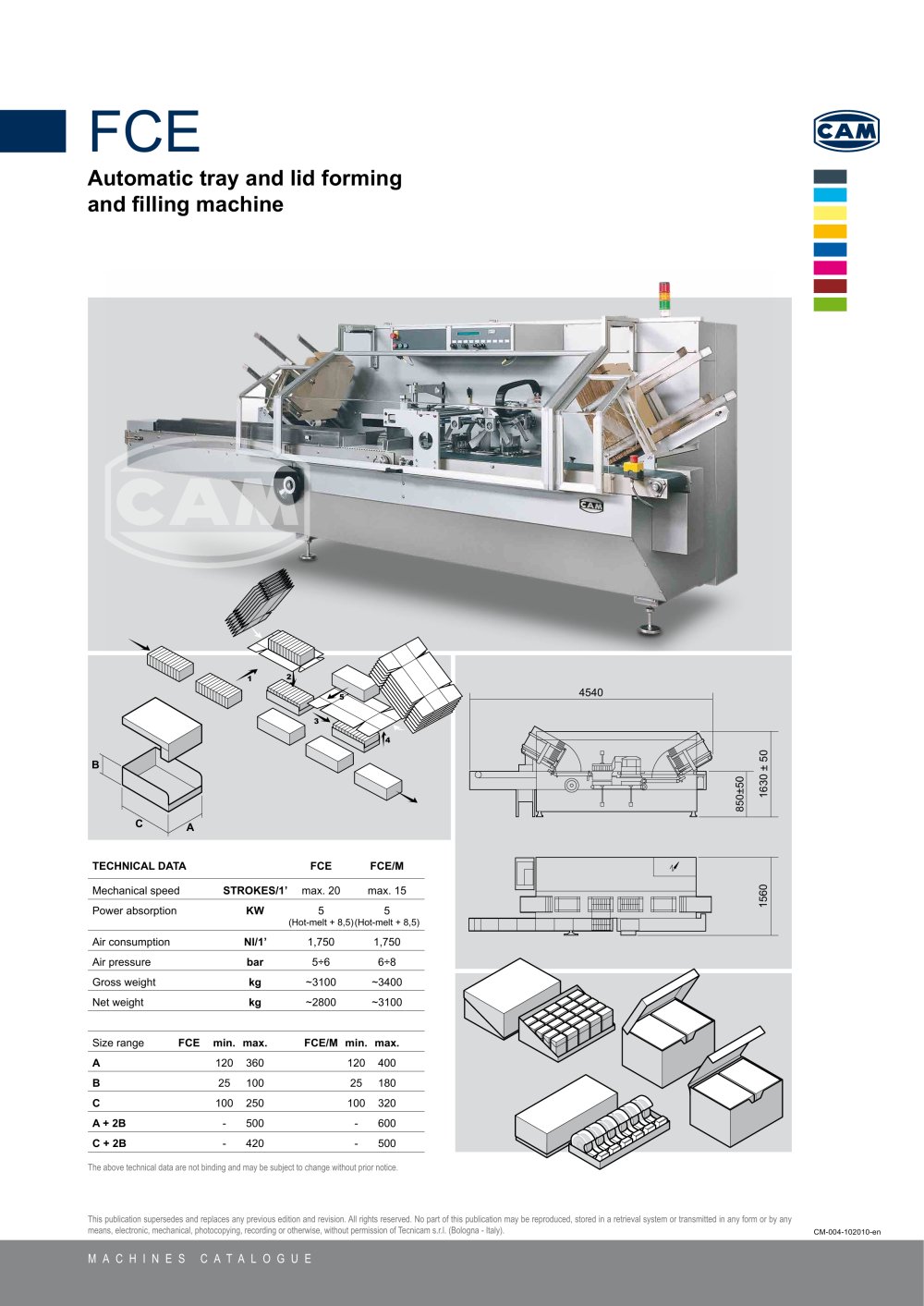

Mise en page 1 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:28.00pt "Arial", sans-serif; } .font5 { font:13.00pt "Arial Black", sans-serif; } FCE CAM Automatic tray and lid forming and filling machine TECHNICAL DATA FCE FCE/M Mechanical speed STROKES/1' max. 20 max. 15 Power absorption KW 5 5 (Hot-melt + 8,5) (Hot-melt + 8,5) Air consumption Nl/1' 1,750 1,750 Air pressure bar 5-6 6-8 Gross weight kg ~3100 ~3400 Net weight kg ~2800 ~3100 Size range FCE min. max. FCE/M min. max. A 120 360 120 400 B 25 100 25 180 C 100 250 100 320 A + 2B - 500 - 600 C + 2B - 420 - 500 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). CM-004-102010-en MACHINES CATALOGUE
