DA intermittent motion dosing/capping monobloc

DA intermittent motion dosing/capping monobloc

Product catalog summary
Technical Specifications:
  • Mechanical Speed: 90 strokes per minute
  • Power Absorption: 4.5 KW
  • Air Consumption: 200 Nl per minute
  • Air Pressure: 5 to 6 bar
  • Gross Weight: 1950 kg
  • Net Weight: 1400 kg
Size Range:
  • Dimension A: 20 to 70 mm
  • Dimension B: 15 to 80 mm
  • Diameter Ø: 15 to 80 mm
  • Dimension C: 35 to 180 mm
General Information:

This document provides technical data for an intermittent motion powder dosing and capping monobloc machine. The data is subject to change without prior notice, and reproduction of this document is prohibited without permission from Tecnicam s.r.l.

See more

Catalog excerpts

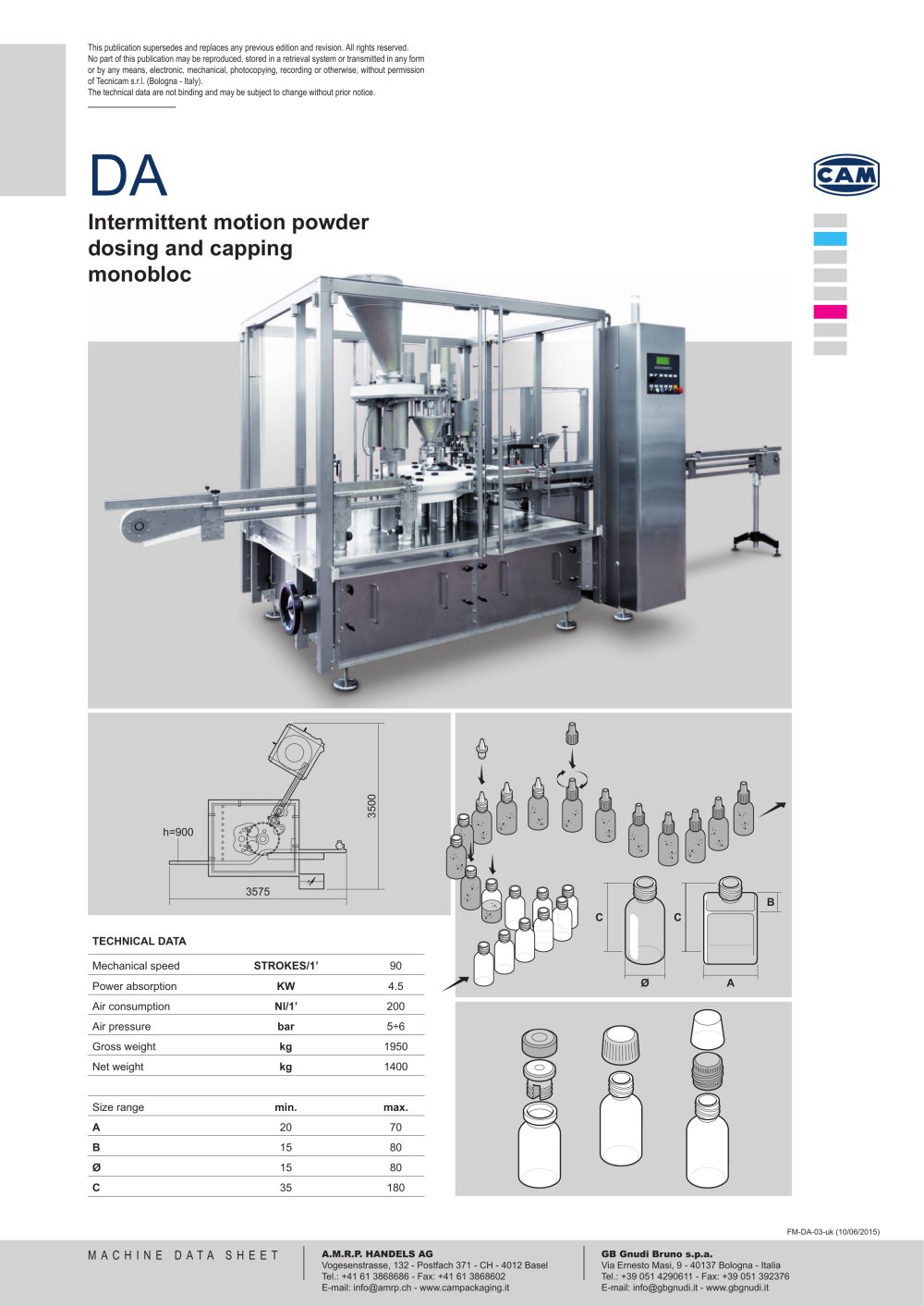

DA intermittent motion dosing/capping monobloc-1

This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). The technical data are not binding and may be subject to change without prior notice. Intermittent motion powder dosing and capping monobloc C TECHNICAL DATA Mechanical speed Power absorption Gross weight Size range MACHINE DATA SHEET A.M.R.P. HANDELS AG Vogesenstrasse, 132 - Postfach 371 - CH - 4012 Basel Tel.: +41 61 3868686 - Fax: +41 61 3868602 E-mail: [email protected] - www.campackaging.it GB Gnudi Bruno s.p.a. Via Ernesto Masi, 9 - 40137 Bologna - Italia Tel.: +39 051 4290611 - Fax: +39 051 392376 E-mail: [email protected] - www.gbgnud

 Open the catalog to page 1
