  3. AV intermittent motion vertical cartoner for manual or automatic feeding

AV intermittent motion vertical cartoner for manual or automatic feeding
1 /1Page

AV intermittent motion vertical cartoner for manual or automatic feeding

AV intermittent motion vertical cartoner for manual or automatic feeding
1 /1Page

Catalog excerpts

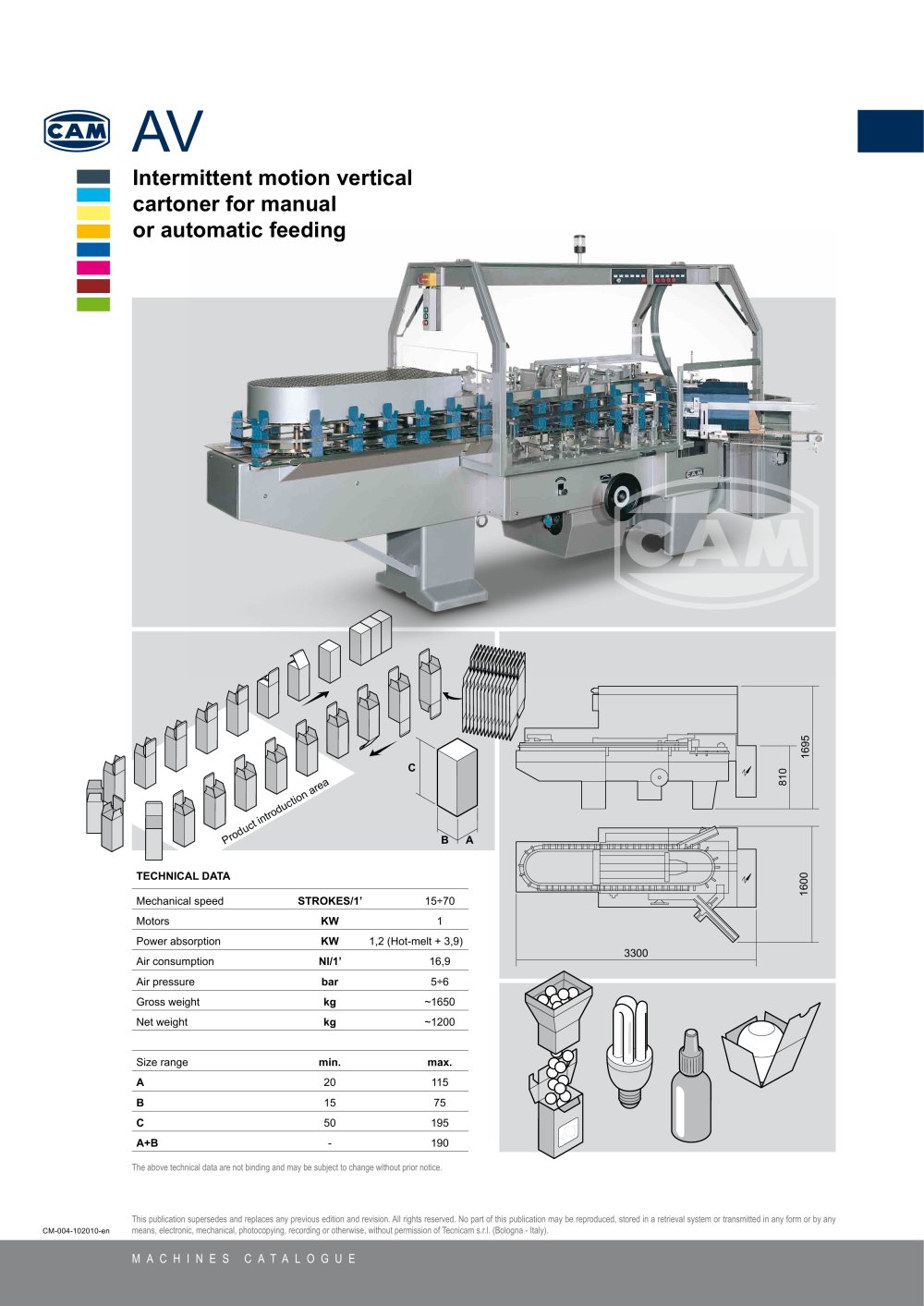

AV intermittent motion vertical cartoner for manual or automatic feeding-1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:25.00pt "Arial", sans-serif; } .font4 { font:35.00pt "Arial", sans-serif; } .font5 { font:17.00pt "Courier New", monospace; } CAM AV Intermittent motion vertical cartoner for manual or automatic feeding f- rT TECHNICAL DATA Mechanical speed STROKES/1' 15-70 Motors KW 1 Power absorption KW 1,2 (Hot-melt + 3,9) Air consumption Nl/1' 16,9 Air pressure bar 5-6 Gross weight kg ~1650 Net weight kg ~1200 Size range min. max. A 20 115 B 15 75 C 50 195 A+B - 190 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any CM-004-102010-en means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). MACHINES CATALOGUE

 Open the catalog to page 1
