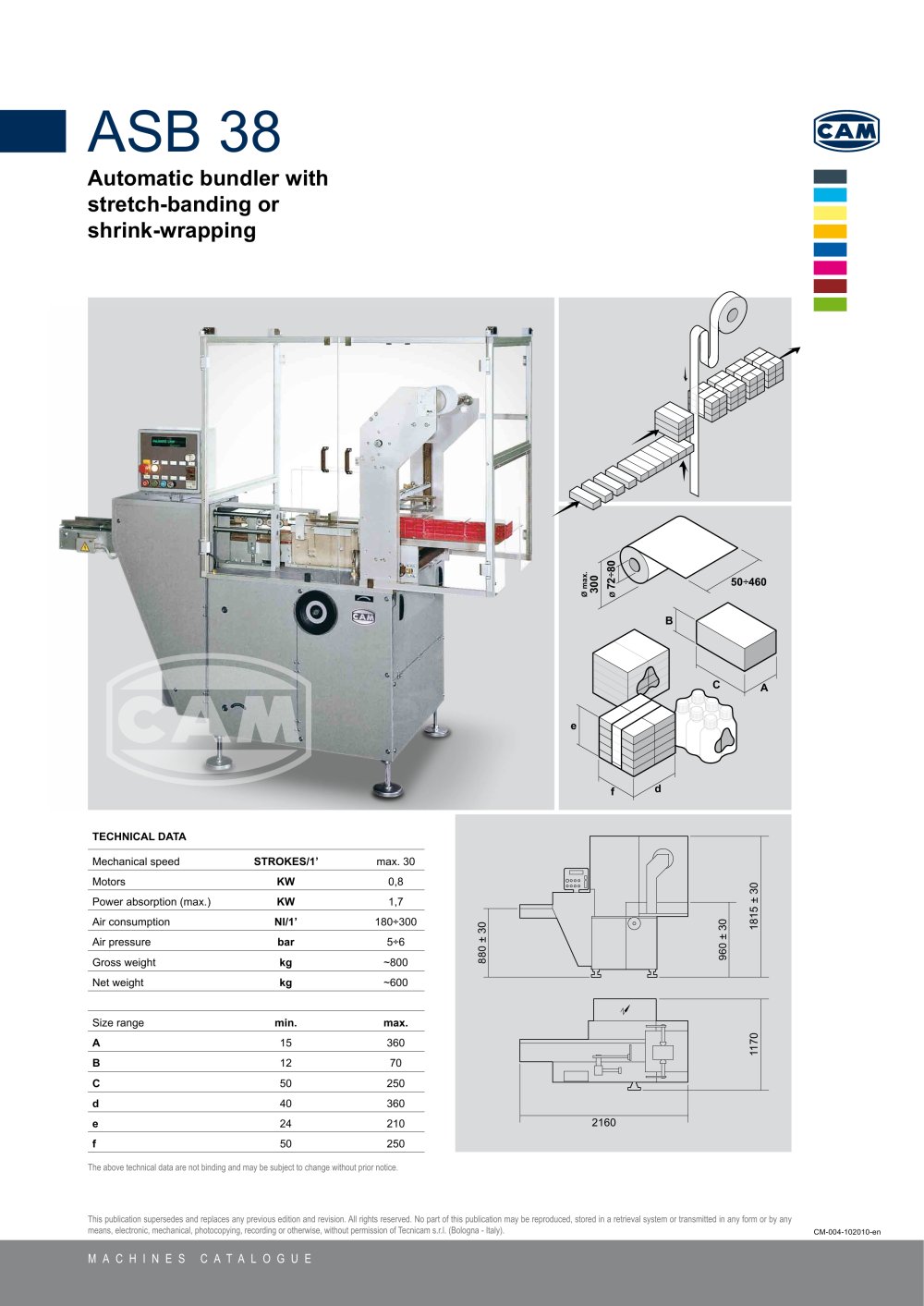

ASB38 automatic bundler with stretch-banding or shrink wrapping - CAM - #1

Text version of the page

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:35.00pt "Arial", sans-serif; } .font5 { font:44.00pt "Trebuchet MS", sans-serif; } ASB 38 Automatic bundler with stretch-banding or shrink-wrapping CAM TECHNICAL DATA 1 1 0 3 -u r 1815 : 960 ± 30 Mechanical speed STROKES/1' max. 30 Motors KW 0,8 Power absorption (max.) KW 1,7 Air consumption Nl/1' 180-300 Air pressure bar 5-6 Gross weight kg ~800 Net weight kg ~600 Size range min. max. A 15 360 B 12 70 C 50 250 d 40 360 e 24 210 f 50 250 y 2160 0 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). CM-004-102010-en MACHINES CATALOGUE
