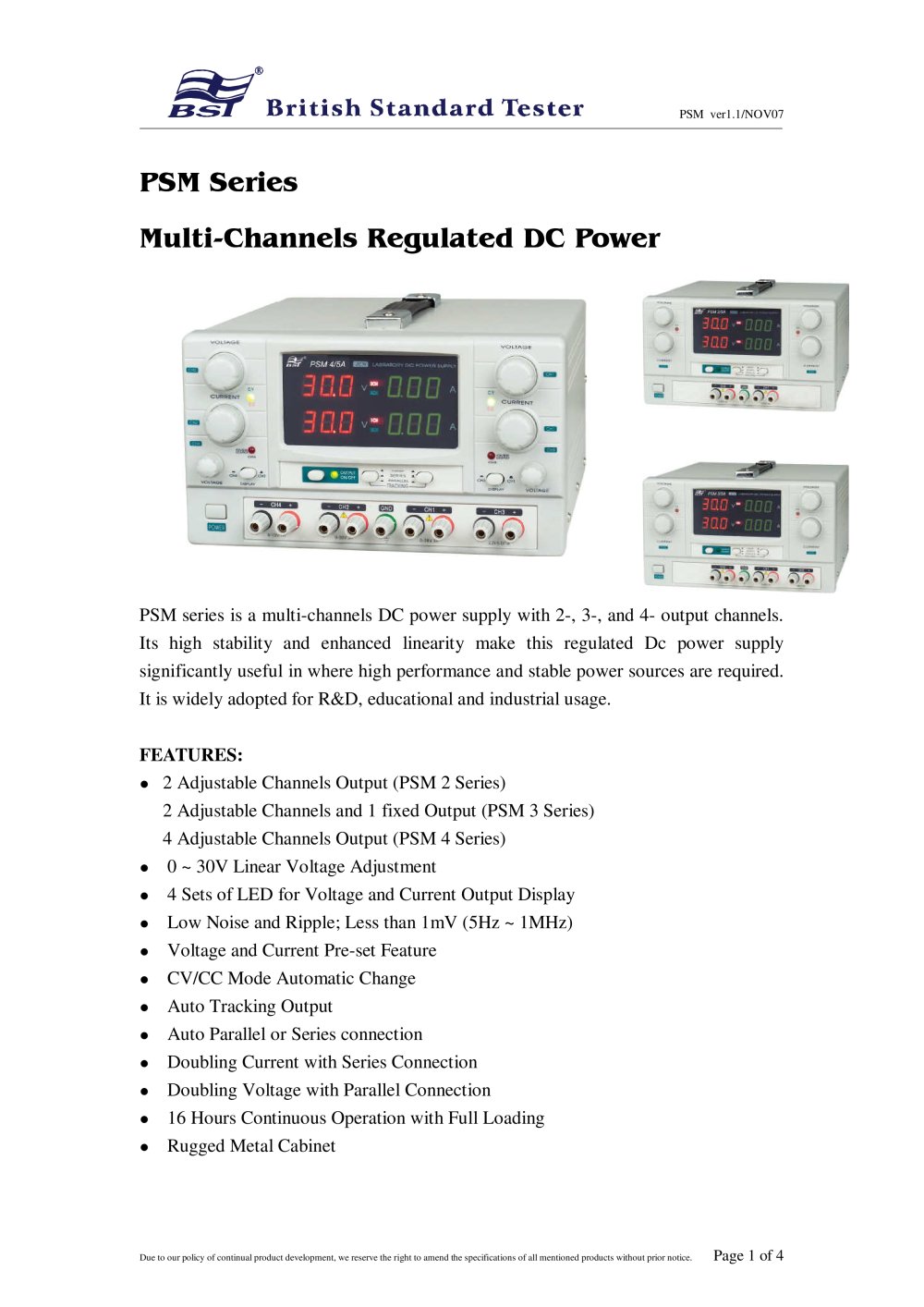

PSM ver1.1/NOV07 Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without prior notice. Page 1 of 4 PSM Series Multi-Channels Regulated DC Power PSM series is a multi-channels DC power supply with 2-, 3-, and 4- output channels. Its high stability and enhanced linearity make this regulated Dc power supply significantly useful in where high performance and stable power sources are required. It is widely adopted for R&D, educational and industrial usage. FEATURES:
2 Adjustable Channels Output (PSM 2 Series) 2 Adjustable Channels and 1 fixed Output (PSM 3 Series) 4 Adjustable Channels Output (PSM 4 Series)
0 ~ 30V Linear Voltage Adjustment
4 Sets of LED for Voltage and Current Output Display
Low Noise and Ripple; Less than 1mV (5Hz ~ 1MHz)
Voltage and Current Pre-set Feature
CV/CC Mode Automatic Change
Auto Tracking Output
Auto Parallel or Series connection
Doubling Current with Series Connection
Doubling Voltage with Parallel Connection
16 Hours Continuous Operation with Full Loading
Rugged Metal Cabinet PSM 4 PSM 2 PSM 3
