PSD Series High Performance Regulated DC Power Supply (Digital Display)

PSD Series High Performance Regulated DC Power Supply (Digital Display)
4Pages

Catalog excerpts

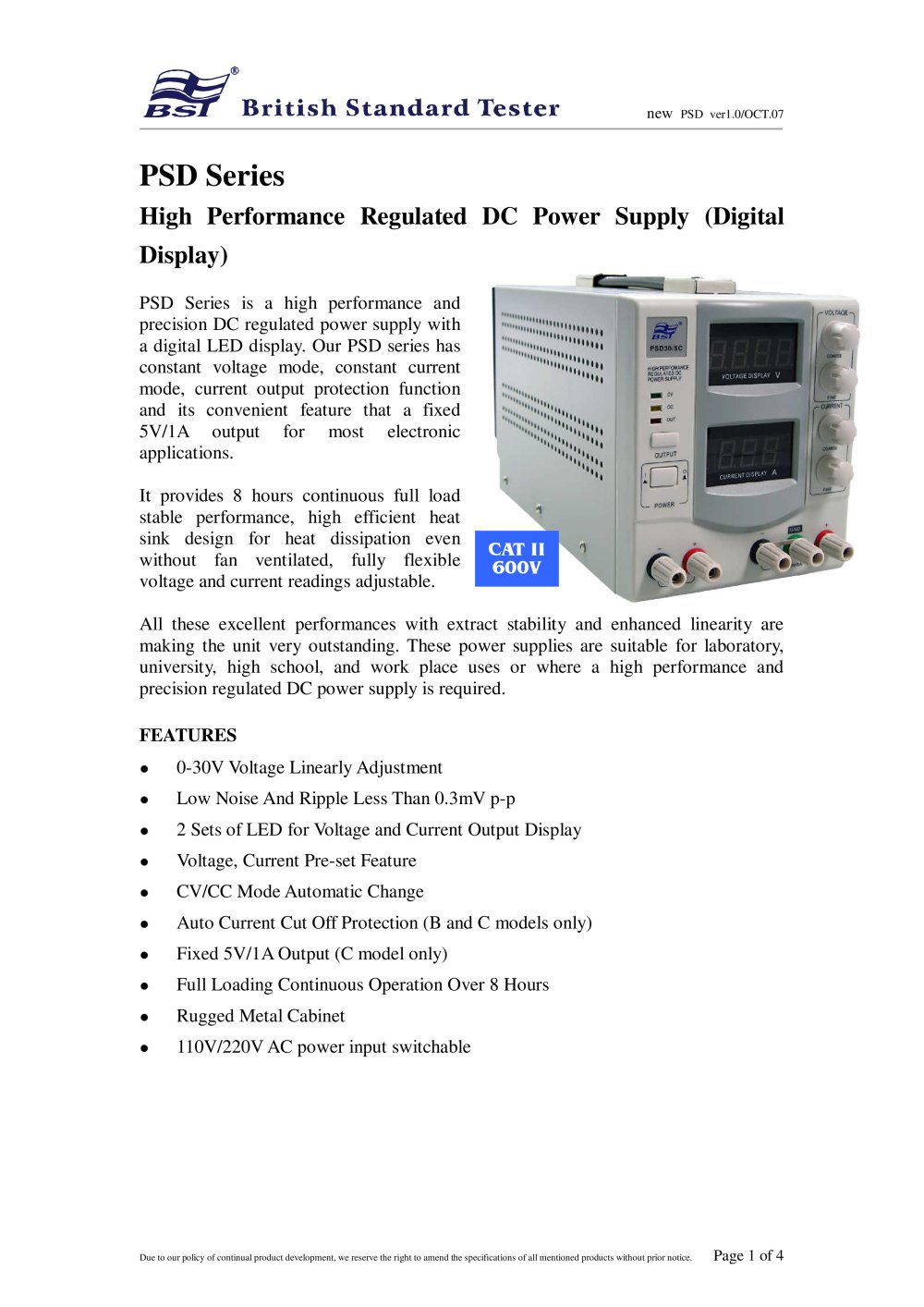

PSD Series High Performance Regulated DC Power Supply (Digital Display) - 1

new PSD ver1.0/OCT.07 Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without prior notice. Page 1 of 4 PSD Series High Performance Regulated DC Power Supply (Digital Display) PSD Series is a high performance and precision DC regulated power supply with a digital LED display. Our PSD series has constant voltage mode, constant current mode, current output protection function and its convenient feature that a fixed 5V/1A output for most electronic applications. It provides 8 hours continuous full load stable performance, high efficient heat sink design for heat dissipation even without fan ventilated, fully flexible voltage and current readings adjustable. All these excellent performances with extract stability and enhanced linearity are making the unit very outstanding. These power supplies are suitable for laboratory, university, high school, and work place uses or where a high performance and precision regulated DC power supply is required. FEATURES 0-30V Voltage Linearly Adjustment Low Noise And Ripple Less Than 0.3mV p-p 2 Sets of LED for Voltage and Current Output Display Voltage, Current Pre-set Feature CV/CC Mode Automatic Change Auto Current Cut Off Protection (B and C models only) Fixed 5V/1A Output (C model only) Full Loading Continuous Operation Over 8 Hours Rugged Metal Cabinet 110V/220V AC power input switchable CAT II 600V

Open the catalog to page 1

PSD Series High Performance Regulated DC Power Supply (Digital Display) - 2

new PSD ver1.0/OCT.07 Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without prior notice. Page 2 of 4 GERNERAL SPECIFICATION OPERATION CONDITION *Non-condensing Maximum Current Output Digital Model LED Display Number 2A 3A 5A Current Output Protection Fixed Output DC5V/1A 4 Digits 3 Digits PSD30/5C œ œ œ œ PSD3/05B œ œ œ PSD30/5A œ œ PSD30/3C œ œ œ œ PSD30/3B œ œ œ PSD30/3A œ œ PSD30/2C œ œ œ œ PSD30/2B œ œ œ PSD30/2A œ œ Environmental Condition: Operating altitude <2000m, pollution degree II Input VoltageF...

Open the catalog to page 2

PSD Series High Performance Regulated DC Power Supply (Digital Display) - 3

new PSD ver1.0/OCT.07 Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without prior notice. Page 3 of 4 Technical Specification PSD30/5C PSD30/3C PSD30/2C PSD30/5B PSD30/3B PSD30/2B Model PSD30/5A PSD30/3A PSD30/2A Constant Voltage Mode (CV) Line Effect 1×10-4 +2mV 5×10-5 +2mV Loading Effect: 1×10-4 +2mV 5×10-5 +2mV Noise and Ripple: 0.5mVirmsj 0.3mVirmsj Temperature Coefficient” 150ppm/Ž Constant Current Mode (CC) Current Range 20mA to 5A 20mA to 3A 20mA to 2A Line Effect: 2×10-4 +2mA Loading Effect: 5mA...

Open the catalog to page 3

PSD Series High Performance Regulated DC Power Supply (Digital Display) - 4

new PSD ver1.0/OCT.07 Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without prior notice. Page 4 of 4 Accessories Power cord Instruction manual Main connection cable Ground plate DC5V/1A connection cable (for C model only) Spare Fuse Hong Kong Office Email: Tel: (852) 2401-1222 Fax: (852) 2420-3472 Address:Unit 11 10/F, Kwai Cheong Center,50 Kwai Cheong Road , Kwai Chung, N.T., Hong Kong caltek@caltek.com.hk Level 15, Suite 27, Prudential Tower, 30 Cecil Street, Singapore 049712 Email: Tel: (65) 6232-2903 Fax:...
