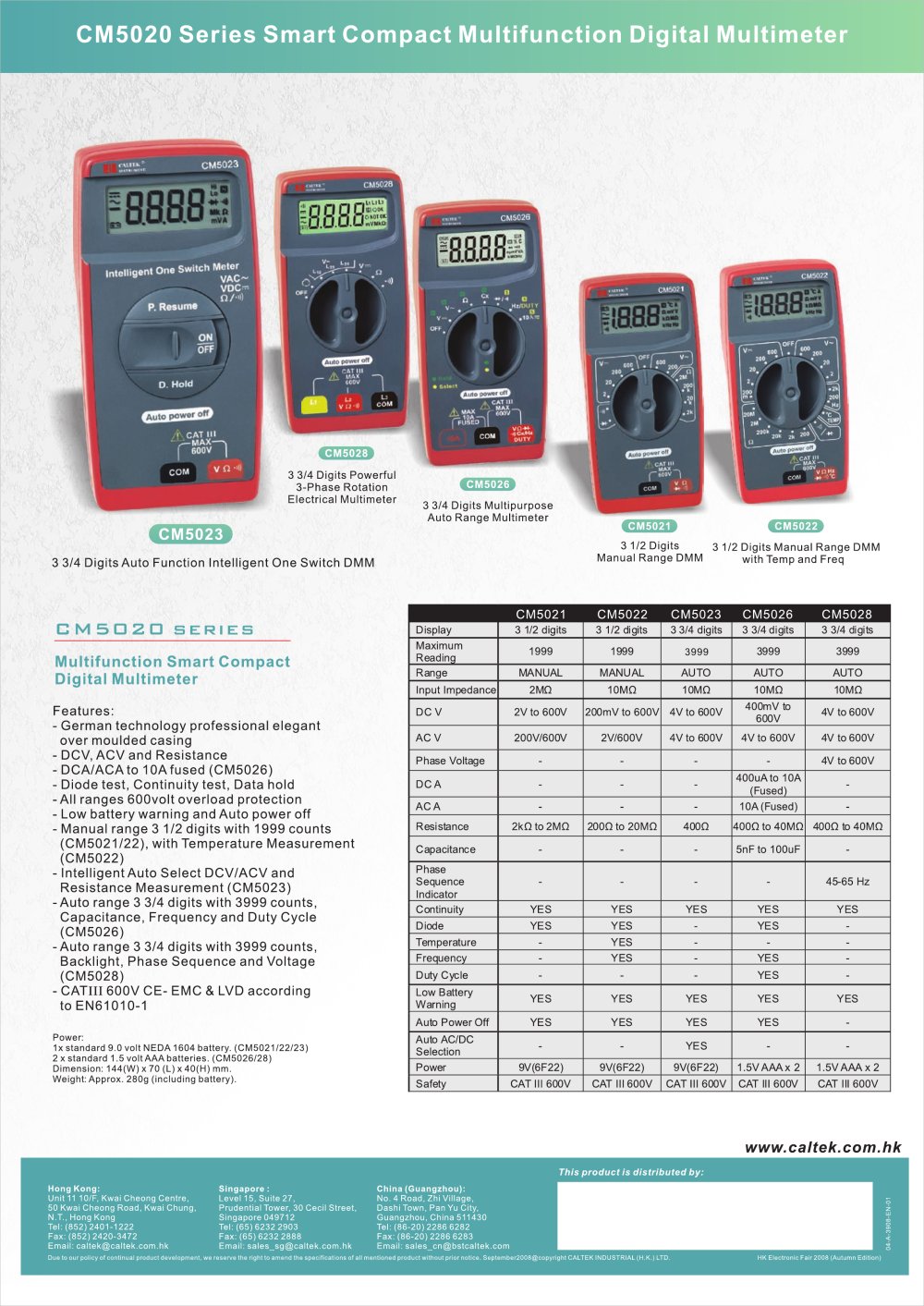

CM5020Se

pact Multifunction Digital Multimeter


CM5021		CM5022	CM5023	CM5026	CM5028
Display	3 1/2 digits	3 1/2 digits	3 3/4 digits	3 3/4 digits	3 3/4 digits
Maximum Reading	1999	1999	3999	3999	3999
Range	MANUAL	MANUAL	AUTO	AUTO	AUTO
Input Impedance	2MO	10MQ	10MO	10MO.	10MO.
DCV	2V to 600V	200mVto600V	4V to 600V	400mV to 600V	4V to 600V
ACV	200V/600V	2V/600V	4V to 600V	4V to 600V	4V to 600V
Phase Voltage	-	-	-	-	4V to 600V
DCA	-	-	-	400uAto 10A (Fused)	-
AC A	-	-	-	10A (Fused)	-
Resistance	2kQ to 2MO	200O to 20MQ	400O	400O to 40MQ	400Q to 40MQ
Capacitance	-	-	-	5nFto 100uF	-
Phase Sequence Indicator	-	-	-	-	45-65 Hz
Continuity	YES	YES	YES	YES	YES
Diode	YES	YES	-	YES	-
Temperature	-	YES	-	-	-
Frequency	-	YES	-	YES	-
Duty Cycle	-	-	-	YES	-
Low Battery Warning	YES	YES	YES	YES	YES
Auto Power Off	YES	YES	YES	YES	-
Auto AC/DC Selection	-	-	YES	-	-
Power	9V(6F22)	9V(6F22)	9V(6F22)	1.5VAAAx 2	1.5V AAAx 2
Safety	CAT III 600V	CAT III 600V	CAT III 600V	CAT III 600V	CAT III 600V

C M B □ 2 □ SERIES

Multifunction Smart Compact Digital Multimeter

Features:

- German technology professional elegant over moulded casing

- DCV, ACV and Resistance

- DC A/AC A to 10A fused (CM5026)

- Diode test, Continuity test, Data hold -All ranges 600volt overload protection

- Low battery warning and Auto power off

- Manual range 3 1/2 digits with 1999 counts (CM5021/22), with Temperature Measurement (CM5022)

- Intelligent Auto Select DCV/ACV and Resistance Measurement (CM5023)

-Auto range 3 3/4 digits with 3999 counts, Capacitance, Frequency and Duty Cycle (CM5026)

-Auto range 3 3/4 digits with 3999 counts, Backlight, Phase Sequence and Voltage (CM5028)

- CATIII600V CE- EMC & LVD according toEN61010-1

Power:

1x standard 9.0 volt NEDA1604 battery. (CM5021/22/23) 2 x standard 1.5 volt AAA batteries. (CMS026/28) Dimension: 144(W) x 70 (L) x 40(H) mm. Weight: Approx. 280g (including battery).
