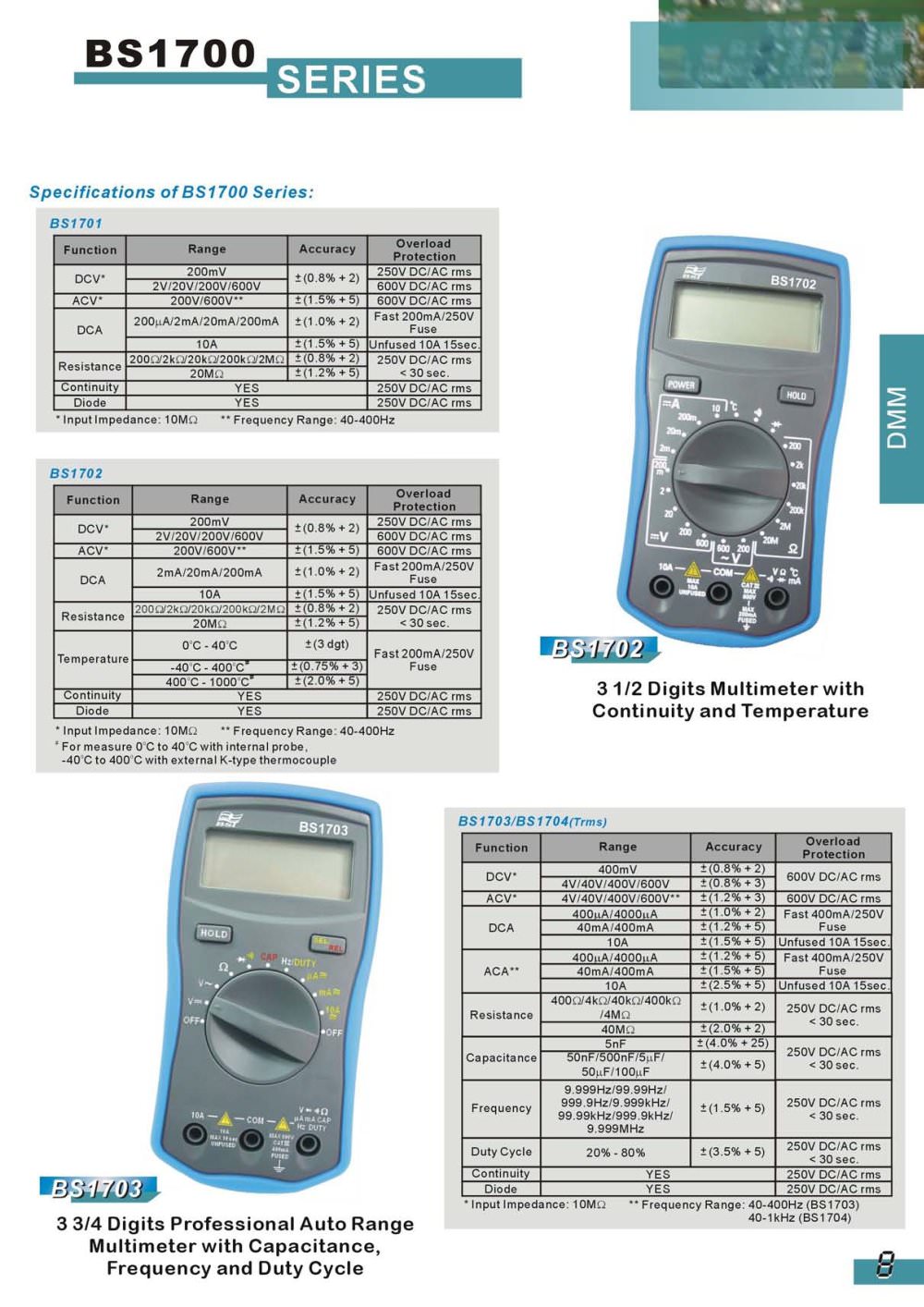

BS1700

SERIES

Specifications ofBS1700 Series:

BS1701


	Function	Range	Accuracy	Overload Protection
	DCV	200mV	±(0.8%+ 2)	250V DC/AC rms
	DCV	2V/20V/200V/600V	±(0.8%+ 2)	600V DC/AC rms
	ACV	200V/600V	±(1.5%+ 5)	600V DC/AC rms
	DCA	200uA/2mA/20mA/200mA	±(1.0%+ 2)	Fast200mA/250V Fuse
	DCA	10A	±(1.5%+ 5)	Unfused 10A 15sec.
	Resistance	200£y2kfi/20k^200ktJ/2MU	±(0.8%+ 2)	250V DC/AC rms < 30 sec.
	Resistance	20MQ	±(1.2%+ 5)	250V DC/AC rms < 30 sec.
	Continuity	YES		250V DC/AC rms
	Diode	YES		250V DC/AC rms

' Input Impedance: 10MQ

' Frequency Range: 40-400Hz

BS1702


	Function	Range	Accuracy	Overload Protection
	DCV	200mV	±(0.8%+ 2)	250V DCAC mis
	DCV	2V/20V/200V/600V	±(0.8%+ 2)	600V DC/AC rms
	ACV	200V/600V"	■¿¡1.5% + 5)	600V DC: AC rms
	DCA	2mA/20mA/200mA	±(1.0%+ 2)	Fast200mA/250V Fuse
	DCA	10A	±(1.5%+ 5)	Unfused I OA 15scc.
	Resistance	200Q/2kQ/20kQ/200kC!/2M!..!	±(0.8%+ 2)	250V DC/AC rms < 30 sec.
	Resistance	20MQ	±(1.2%+ 5)	250V DC/AC rms < 30 sec.
	Temperature	0°C - 40'C	±(3dgt)	Fast 200mA/250V Fuse
		-40 C - 400 C*	±(0.75% + 3)
		400 C- 1000 C"	i(2.0% + 5)
	Continuity	YES		250V DC/AC rms
	Diode	YES		250V DC/AC rms

31/2 Digits Multimeter with Continuity and Temperature

' Input Impedance: 10MQ " Frequency Range: 40-400Hz ' For measure 0 C to 40 C with internal probe. -40 C to 400 C with external K-type thermocouple

SS 1703/BS1704(Trms)


	Function	Range	Accuracy	Overload Protection
	DCV	400mV	±(0.8%+ 2)	600V DC/AC rms
	DCV	4V/40V/400V/600V	±(0.8% + 3)	600V DC/AC rms
	ACV'	4V.40V 400V/600V"	±(1.2%+ 3)	600V DCAC i ms
	DCA	400iiA/4000uA	±(1.0%+ 2)	Fast 400mA/250V Fuse
		40mA/400mA	±(1.2%+ 5)	Fast 400mA/250V Fuse
		10A	±(1.5%+ 5)	Unfused 10A 15sec.
	ACA"	400uA/4000uA	±(1.2%+ 5)	Fast 400mA/250V Fuse
		40mA/400mA	±(1.5% + 5)	Fast 400mA/250V Fuse
		10A	±(2.5% + 5)	Unfused 10A 15sec.
	Resistance	400O/4kQ/40kO/400kQ /4ML j	±(1.0%+ 2)	250V DC/AC rms < 30 sec.
	Resistance	40MQ	±(2.0% + 2)	250V DC/AC rms < 30 sec.
	Capacitance	5nF	±(4.0% + 25)	250V DC/AC rms < 30 sec.
	Capacitance	50nF/500nF/5uF/ 50uF/100uF	±(4.0%+ 5)	250V DC/AC rms < 30 sec.
	Frequency	9.999Hz/99.99Hz/ 999.9Hz/9.999kHz/ 99.99kHz/999.9kHz/ 9.999MHz	± (1.5% + 5)	250V DC/AC rms < 30 sec.
	Duty Cycle	20% - 80%	±(3.5%+ 5)	250V DC/AC rms < 30 sec.
	Continuity	YES		250V DCAC rms
	Diode	YES		250V DCAC rms

Input Impedance: 10MQ ** Frequency Range: 40-400Hz (BS1703)

40-1 kHz (BS 1704)

3 3/4 Digits Professional Auto Range Multimeter with Capacitance, Frequency and Duty Cycle
