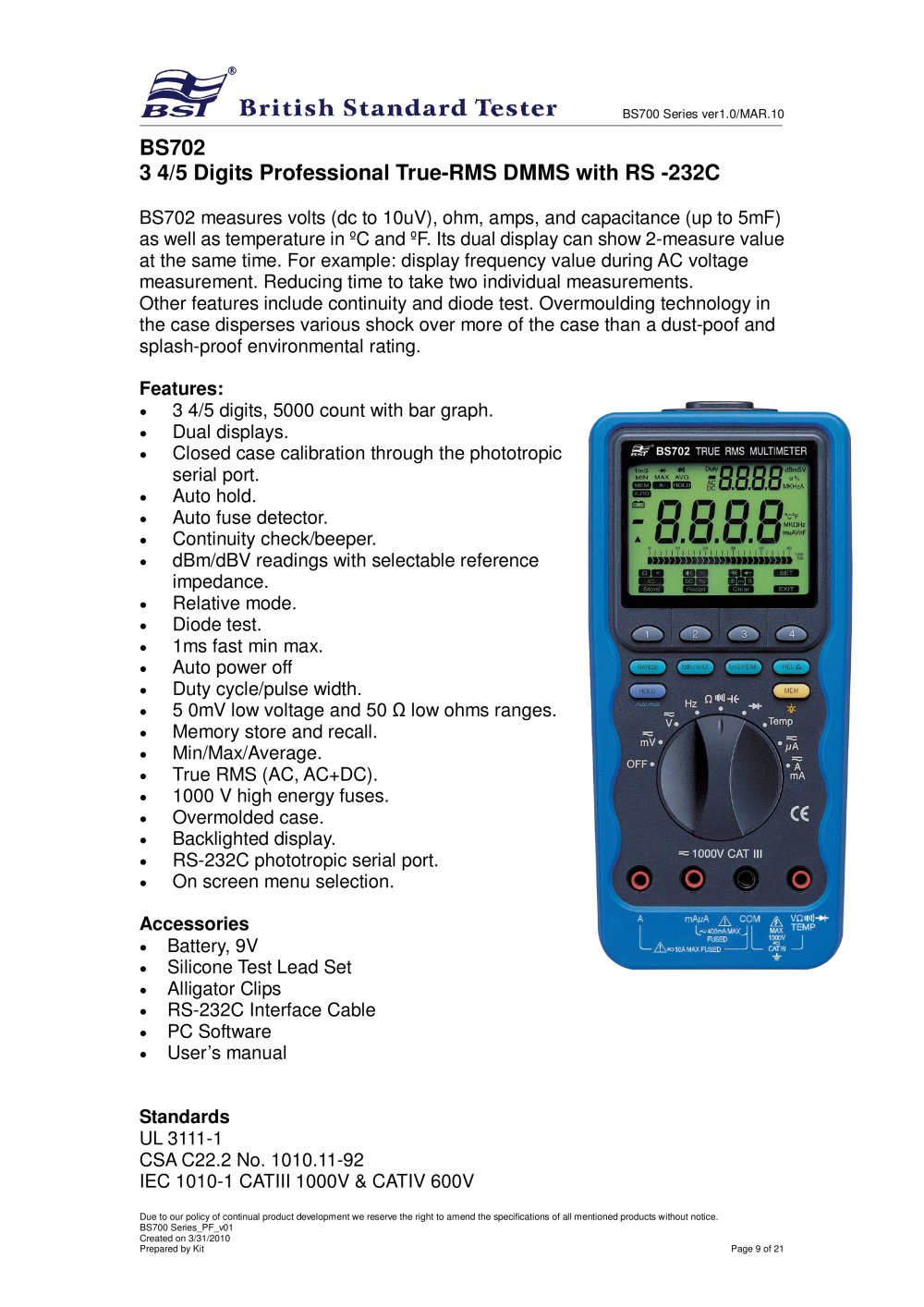

BS700 Series ver1.0/MAR.10 Due to our policy of continual product development we reserve the right to amend the specifications of all mentioned products without notice. BS700 Series_PF_v01 Created on 3/31/2010 Prepared by Kit Page 9 of 21 BS702 3 4/5 Digits Professional True-RMS DMMS with RS -232C BS702 measures volts (dc to 10uV), ohm, amps, and capacitance (up to 5mF) as well as temperature in ºC and ºF. Its dual display can show 2-measure value at the same time. For example: display frequency value during AC voltage measurement. Reducing time to take two individual measurements. Other features include continuity and diode test. Overmoulding technology in the case disperses various shock over more of the case than a dust-poof and splash-proof environmental rating. Features: • 3 4/5 digits, 5000 count with bar graph. • Dual displays. • Closed case calibration through the phototropic serial port. • Auto hold. • Auto fuse detector. • Continuity check/beeper. • dBm/dBV readings with selectable reference impedance. • Relative mode. • Diode test. • 1ms fast min max. • Auto power off • Duty cycle/pulse width. • 5 0mV low voltage and 50  low ohms ranges. • Memory store and recall. • Min/Max/Average. • True RMS (AC, AC+DC). • 1000 V high energy fuses. • Overmolded case. • Backlighted display. • RS-232C phototropic serial port. • On screen menu selection. Accessories • Battery, 9V • Silicone Test Lead Set • Alligator Clips • RS-232C Interface Cable • PC Software • User’s manual Standards UL 3111-1 CSA C22.2 No. 1010.11-92 IEC 1010-1 CATIII 1000V & CATIV 600V
