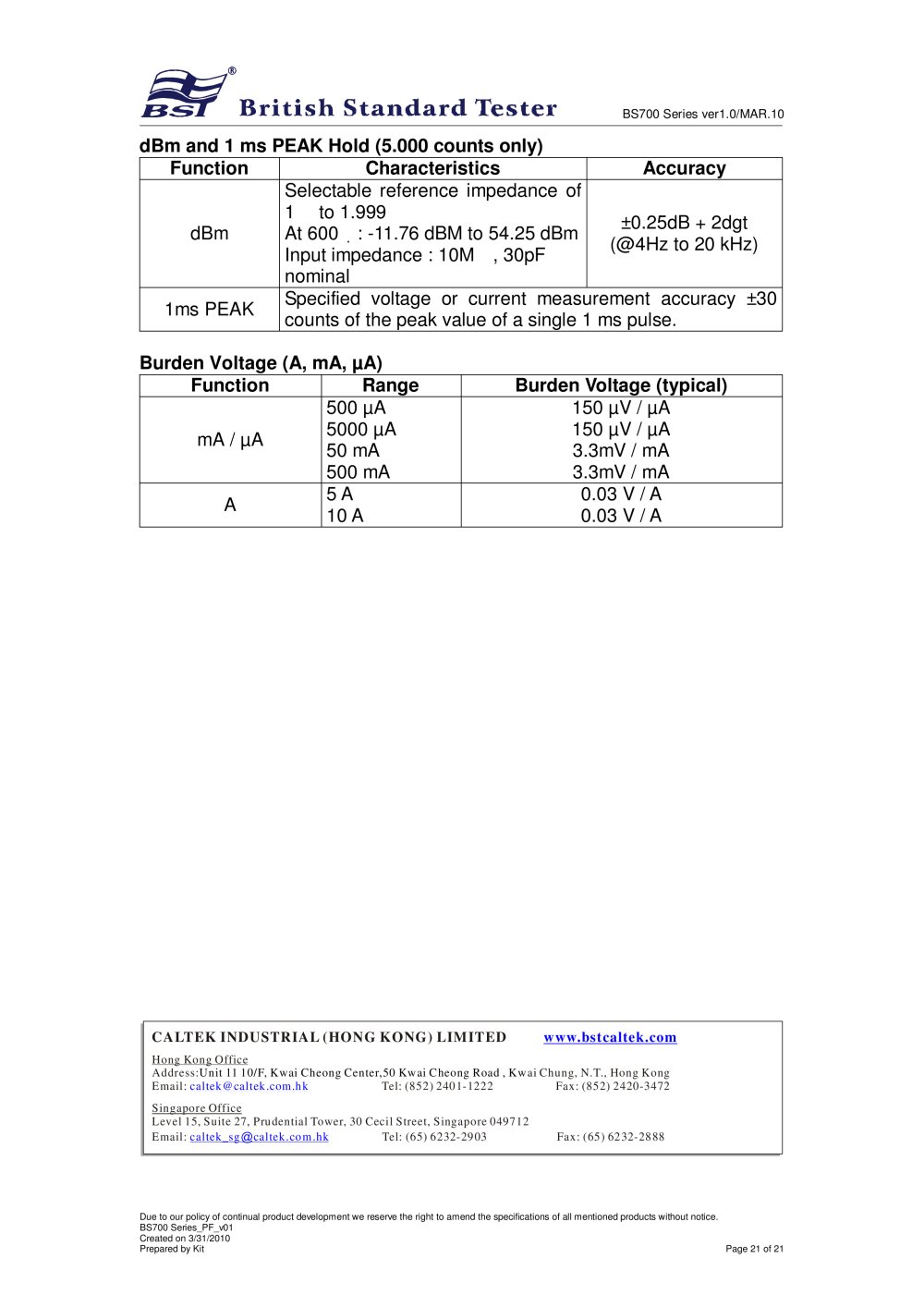

BS700 Series ver1.0/MAR.10 Due to our policy of continual product development we reserve the right to amend the specifications of all mentioned products without notice. BS700 Series_PF_v01 Created on 3/31/2010 Prepared by Kit Page 21 of 21 dBm and 1 ms PEAK Hold (5.000 counts only) Function Characteristics Accuracy dBm Selectable reference impedance of 1ƒÇ to 1.999ƒÇ At 600ƒÇ: -11.76 dBM to 54.25 dBm Input impedance : 10MƒÇ, 30pF nominal ±0.25dB + 2dgt (@4Hz to 20 kHz) 1ms PEAK Specified voltage or current measurement accuracy ±30 counts of the peak value of a single 1 ms pulse. Burden Voltage (A, mA, ìA) Function Range Burden Voltage (typical) mA / ìA 500 ìA 5000 ìA 50 mA 500 mA 150 ìV / ìA 150 ìV / ìA 3.3mV / mA 3.3mV / mA A 5 A 10 A 0.03 V / A 0.03 V / A Hong Kong Office Email: Tel: (852) 2401-1222 Fax: (852) 2420-3472 Address:Unit 11 10/F, Kwai Cheong Center,50 Kwai Cheong Road , Kwai Chung, N.T., Hong Kong caltek@caltek.com.hk Level 15, Suite 27, Prudential Tower, 30 Cecil Street, Singapore 049712 Email: Tel: (65) 6232-2903 Fax: (65) 6232-2888 Singapore Office caltek_sg@caltek.com.hk CALTEK INDUSTRIAL (HONG KONG) LIMITED www.bstcaltek.com
