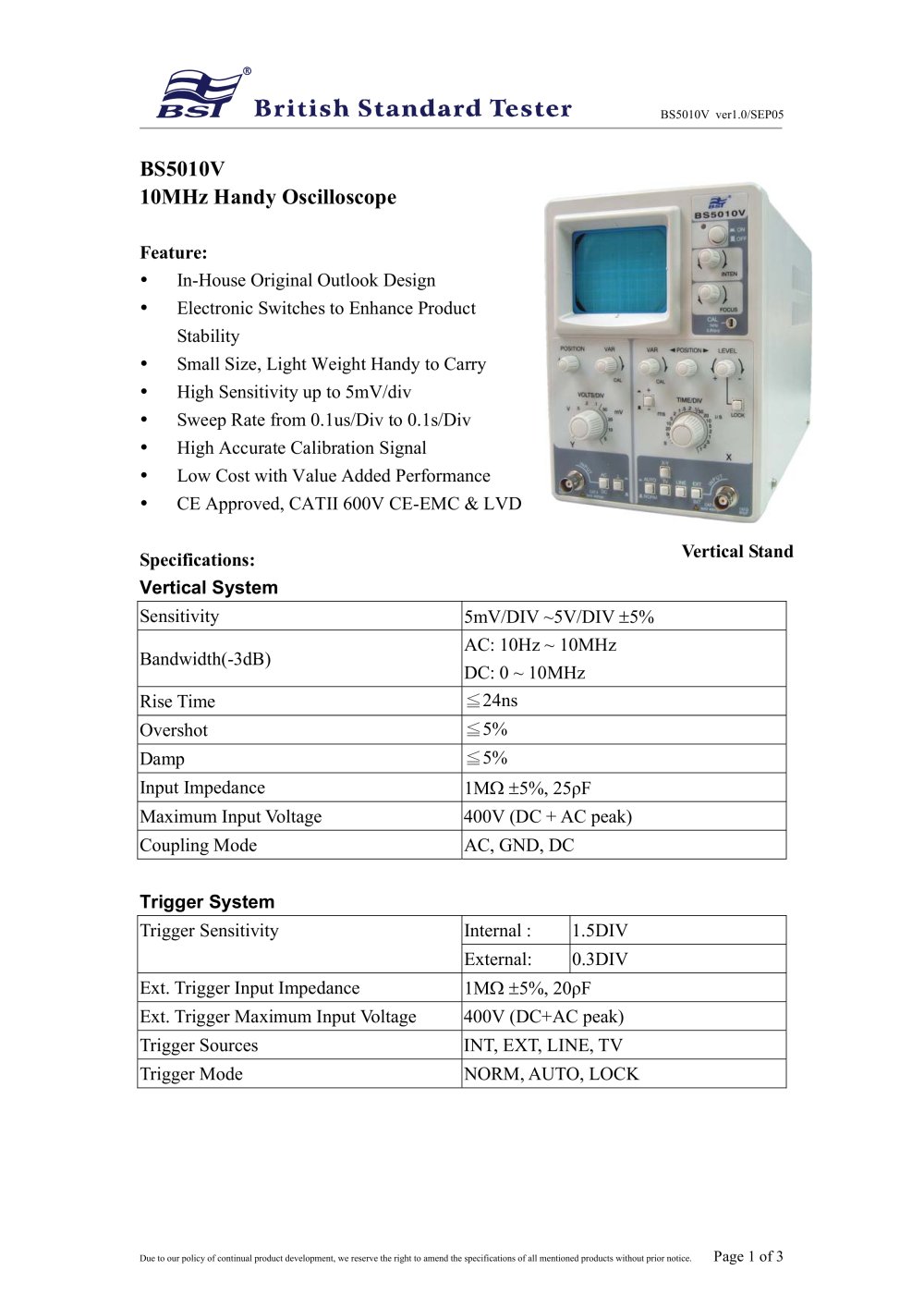

BS5010V ver1.0/SEP05 Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without prior notice. Page 1 of 3 BS5010V 10MHz Handy Oscilloscope Feature: .. In-House Original Outlook Design .. Electronic Switches to Enhance Product Stability .. Small Size, Light Weight Handy to Carry .. High Sensitivity up to 5mV/div .. Sweep Rate from 0.1us/Div to 0.1s/Div .. High Accurate Calibration Signal .. Low Cost with Value Added Performance .. CE Approved, CATII 600V CE-EMC & LVD Vertical Stand Specifications: Vertical System Sensitivity 5mV/DIV ~5V/DIV ±5% Bandwidth(-3dB) AC: 10Hz ~ 10MHz DC: 0 ~ 10MHz Rise Time �…24ns Overshot �…5% Damp �…5% Input Impedance 1MÙ ±5%, 25ñF Maximum Input Voltage 400V (DC + AC peak) Coupling Mode AC, GND, DC Trigger System Internal : 1.5DIV Trigger Sensitivity External: 0.3DIV Ext. Trigger Input Impedance 1MÙ ±5%, 20ñF Ext. Trigger Maximum Input Voltage 400V (DC+AC peak) Trigger Sources INT, EXT, LINE, TV Trigger Mode NORM, AUTO, LOCK
