3 /4 Digits Dual Voltage/Current Display Multi-Function TRMS 400A AC Clamp DMM

3 /4 Digits Dual Voltage/Current Display Multi-Function TRMS 400A AC Clamp DMM
3Pages

Catalog excerpts

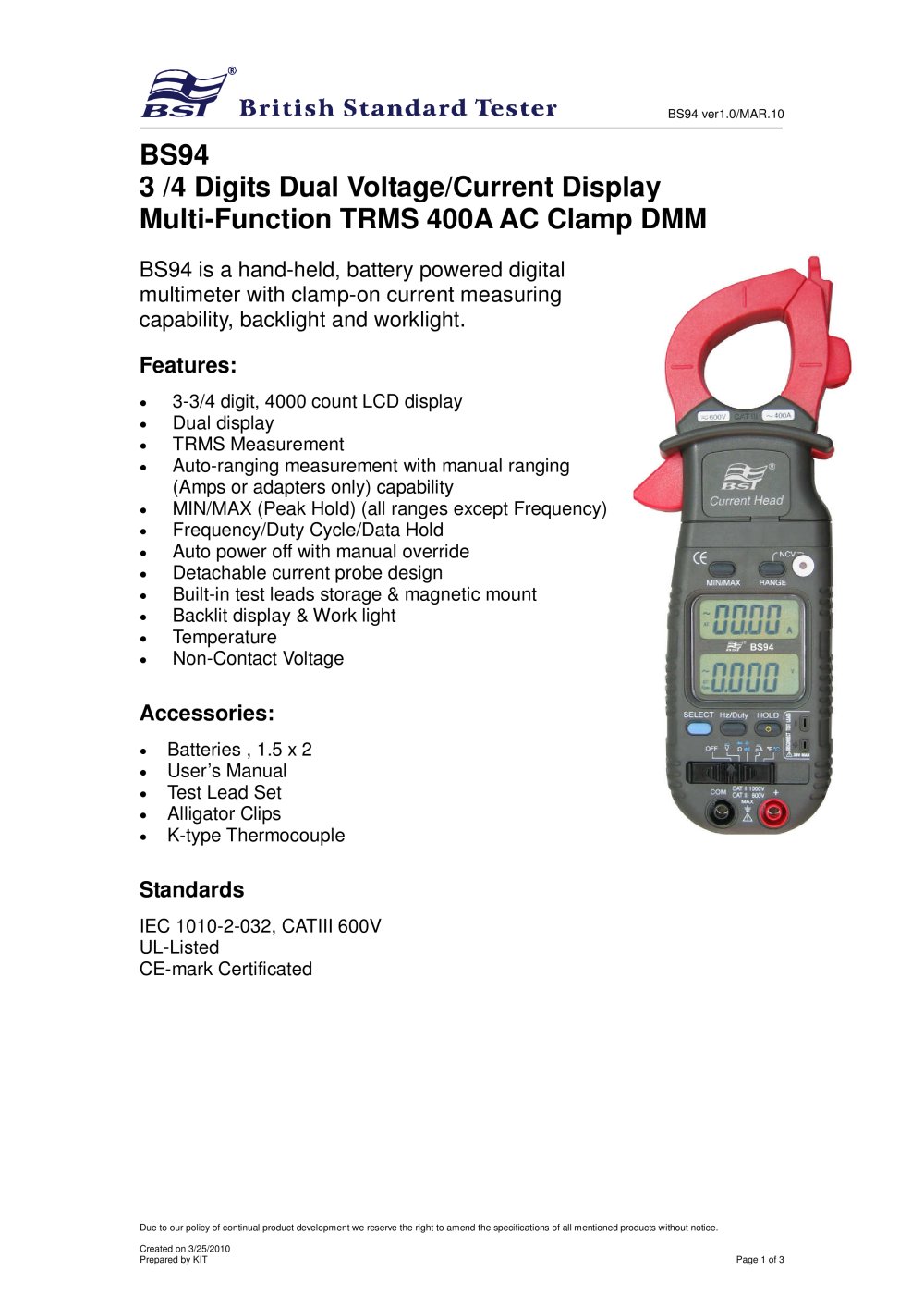

3 /4 Digits Dual Voltage/Current Display Multi-Function TRMS 400A AC Clamp DMM - 1

BS94 ver1.0/MAR.10 Due to our policy of continual product development we reserve the right to amend the specifications of all mentioned products without notice. Created on 3/25/2010 Prepared by KIT Page 1 of 3 BS94 3 /4 Digits Dual Voltage/Current Display Multi-Function TRMS 400A AC Clamp DMM BS94 is a hand-held, battery powered digital multimeter with clamp-on current measuring capability, backlight and worklight. Features: • 3-3/4 digit, 4000 count LCD display • Dual display • TRMS Measurement • Auto-ranging measurement with manual ranging (Amps or adapters only) capability • MIN/MAX (Peak Hold) (all ranges except Frequency) • Frequency/Duty Cycle/Data Hold • Auto power off with manual override • Detachable current probe design • Built-in test leads storage & magnetic mount • Backlit display & Work light • Temperature • Non-Contact Voltage Accessories: • Batteries , 1.5 x 2 • User’s Manual • Test Lead Set • Alligator Clips • K-type Thermocouple Standards IEC 1010-2-032, CATIII 600V UL-Listed CE-mark Certificated

Open the catalog to page 1

3 /4 Digits Dual Voltage/Current Display Multi-Function TRMS 400A AC Clamp DMM - 2

BS94 ver1.0/MAR.10 Due to our policy of continual product development we reserve the right to amend the specifications of all mentioned products without notice. Created on 3/25/2010 Prepared by KIT Page 2 of 3 Electrical Specification Accuracies is given as ±(% of reading + number of least significant digits) at 18°C to 28°C with relative humidity up to 80%, for a period of one year after calibration. AC Amps Measurement – Jaw Input (45 to 400Hz) Range Resolution Accuracy Overload Protection 40A 0.01A ±(2.9% Read. + 15dgt) 400A 0.1A ±(1.9% Read. + 8dgt) 600V 45Hz to 400 Hz True RMS (Crest...

Open the catalog to page 2

3 /4 Digits Dual Voltage/Current Display Multi-Function TRMS 400A AC Clamp DMM - 3

BS94 ver1.0/MAR.10 Due to our policy of continual product development we reserve the right to amend the specifications of all mentioned products without notice. Created on 3/25/2010 Prepared by KIT Page 3 of 3 Capacitance Measurement Range Resolution Accuracy Overload Protection 40nF 0.01nF 400nF 0.1nF 4ìF 0.001ìF 40ìF 0.01ìF 400ìF 0.1ìF 4000ìF 1ìF ±(3.5% Read. + 6dgt) 600V Temperature Measurement Range Resolution Accuracy Overload Protection -22°F to 14°F (-30°C to -10°C) 0.1°F (0.1°C) ±5.4°F (±3.0°C) 15°F to 752°F (-10°C to 400°C) 0.1°F (0.1°C) ±1.0% + 3.6°F (±1.0% + 2.0°C) 30V Sensor:...
