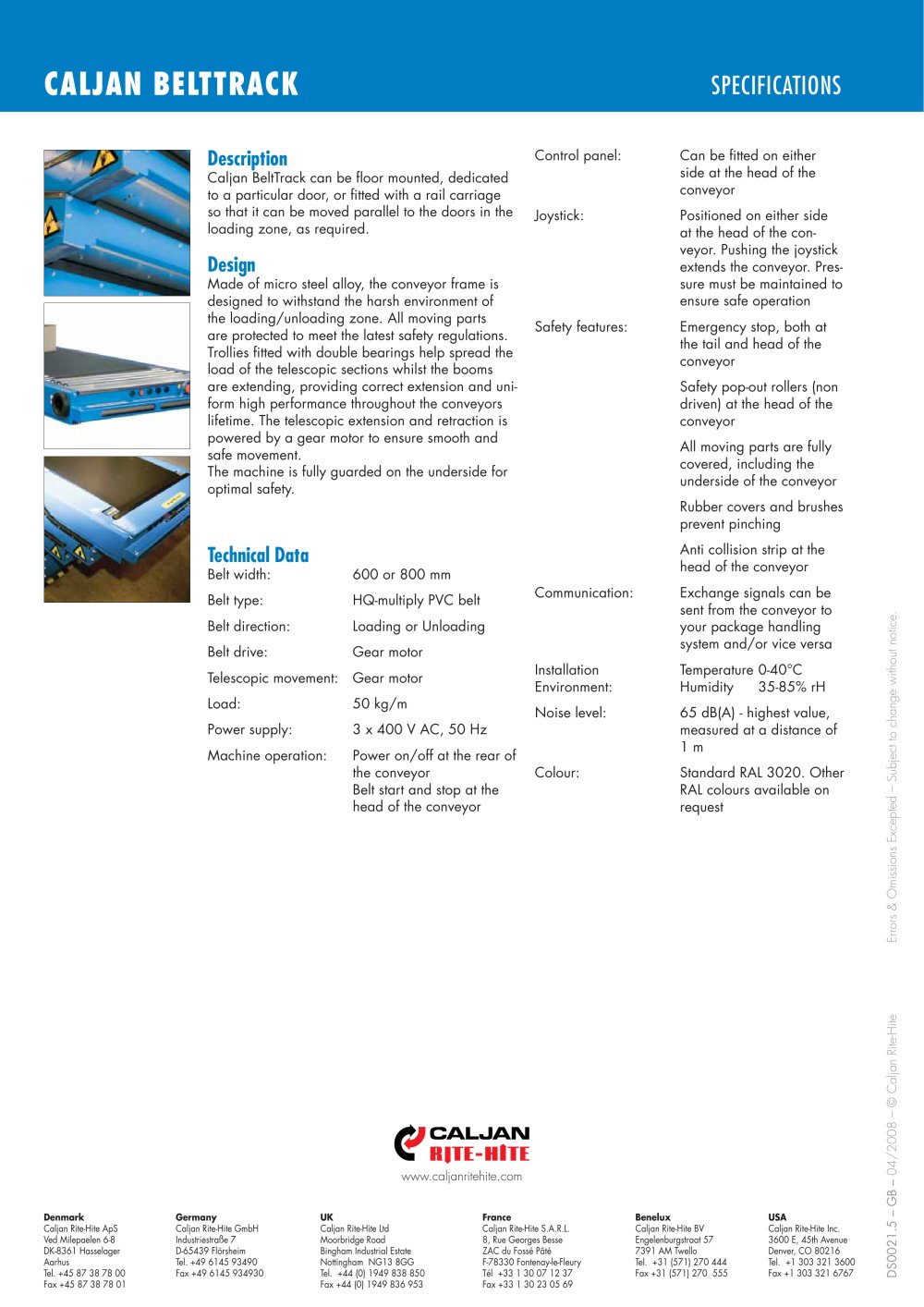

CALJAN BELTTRACK

SPECIFICATIONS

Description

Caljan BeltTrack can be fl oor mounted, dedicated to a particular door, or fi tted with a rail carriage so that it can be moved parallel to the doors in the loading zone, as required.

Design

Made of micro steel alloy, the conveyor frame is designed to withstand the harsh environment of the loading/unloading zone. All moving parts are protected to meet the latest safety regulations. Trollies fi tted with double bearings help spread the load of the telescopic sections whilst the booms are extending, providing correct extension and uni- form high performance throughout the conveyors lifetime. The telescopic extension and retraction is powered by a gear motor to ensure smooth and safe movement. The machine is fully guarded on the underside for optimal safety.

Technical Data

Belt width: 600 or 800 mmBelt type: HQ-multiply PVC beltBelt direction: Loading or Unloading Belt drive: Gear motor Telescopic movement: Gear motor Load: 50 kg/m Power supply: 3 x 400 V AC, 50 Hz Machine operation: Power on/off at the rear of the conveyor Belt start and stop at the head of the conveyor Control panel: Can be fi tted on either side at the head of the conveyorJoystick: Positioned on either side at the head of the con- veyor. Pushing the joystick extends the conveyor. Pres- sure must be maintained to ensure safe operationSafety features: Emergency stop, both at the tail and head of the conveyor Safety pop-out rollers (non driven) at the head of the conveyor All moving parts are fully covered, including the underside of the conveyor Rubber covers and brushes prevent pinching Anti collision strip at the head of the conveyorCommunication: Exchange signals can be sent from the conveyor to your package handling system and/or vice versaInstallation Temperature 0-40°C Environment: Humidity 35-85% rHNoise level: 65 dB(A) - highest value, measured at a distance of 1 mColour: Standard RAL 3020. Other RAL colours available on request
