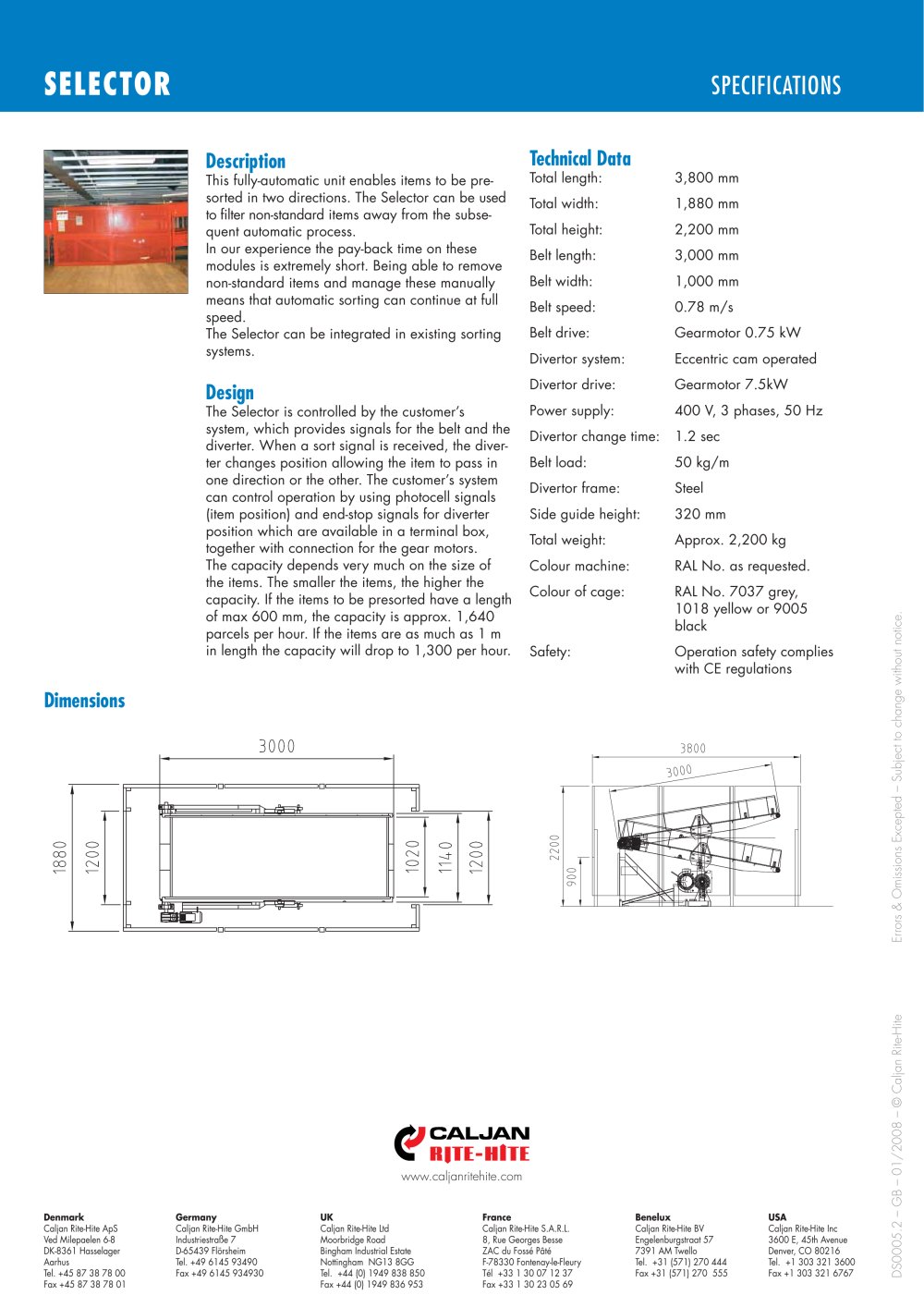

SELECTOR

SPECIFICATIONS

Description Technical Data

This fully-automatic unit enables items to be pre-sorted in two directions. The Selector can be used to fi lter non-standard items away from the subse-quent automatic process. In our experience the pay-back time on these modules is extremely short. Being able to remove non-standard items and manage these manually means that automatic sorting can continue at full speed.The Selector can be integrated in existing sorting systems. Total length: 3,800 mmTotal width: 1,880 mm Total height: 2,200 mm Belt length: 3,000 mm Belt width: 1,000 mmBelt speed: 0.78 m/s Belt drive: Gearmotor 0.75 kWDivertor system: Eccentric cam operated Divertor drive: Gearmotor 7.5kWPower supply: 400 V, 3 phases, 50 HzDivertor change time: 1.2 secBelt load: 50 kg/mDivertor frame: SteelSide guide height: 320 mmTotal weight: Approx. 2,200 kg Colour machine: RAL No. as requested. Colour of cage: RAL No. 7037 grey, 1018 yellow or 9005 black Safety: Operation safety complies with CE regulations

Design

The Selector is controlled by the customer’s system, which provides signals for the belt and the diverter. When a sort signal is received, the diver-ter changes position allowing the item to pass in one direction or the other. The customer’s system can control operation by using photocell signals (item position) and end-stop signals for diverter position which are available in a terminal box, together with connection for the gear motors.The capacity depends very much on the size of the items. The smaller the items, the higher the capacity. If the items to be presorted have a length of max 600 mm, the capacity is approx. 1,640 parcels per hour. If the items are as much as 1 m in length the capacity will drop to 1,300 per hour.

Dimensions
