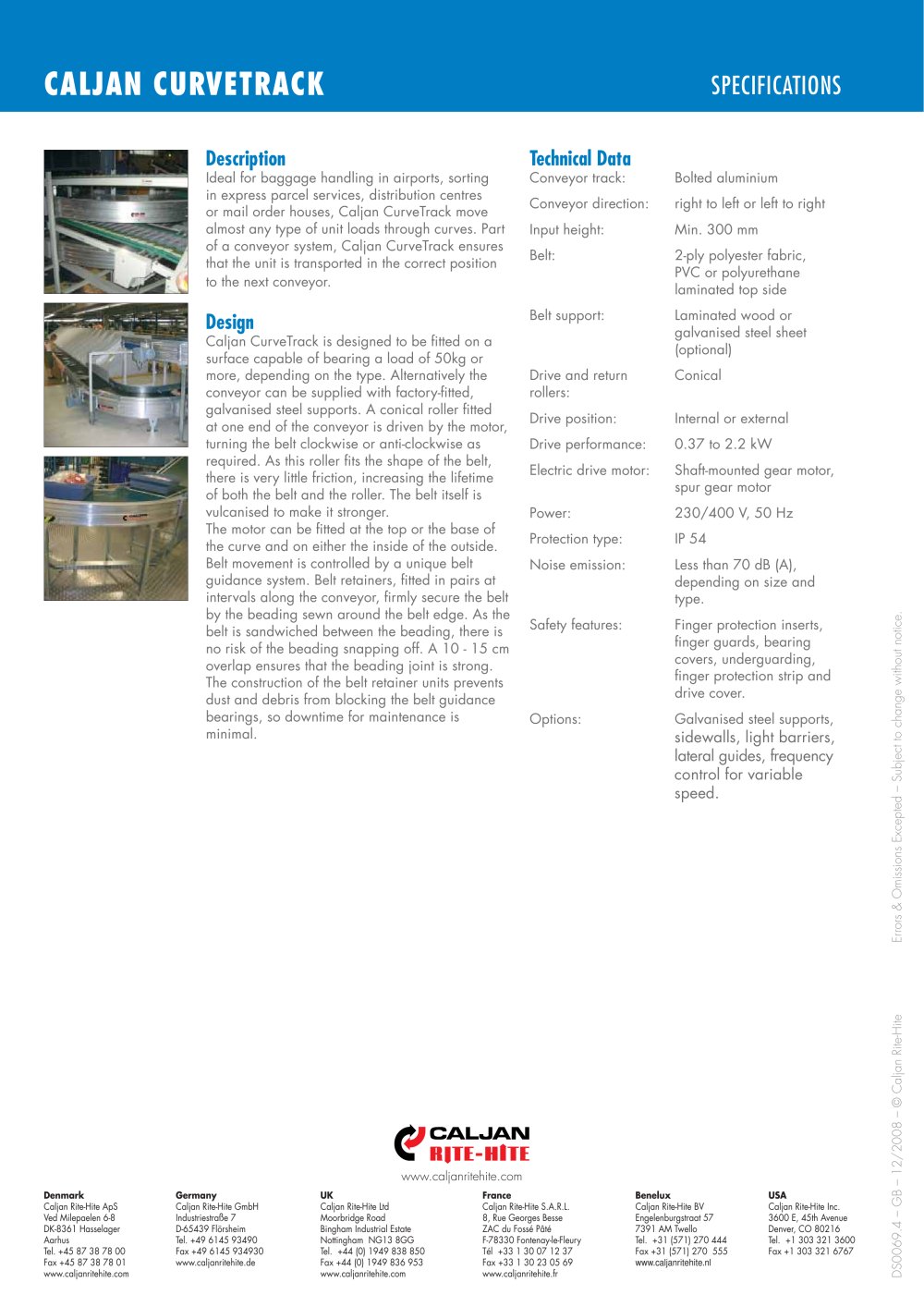

CALJAN CURVETRACK SPECIFICATIONS

Description Technical Data

Ideal for baggage handling in airports, sorting in express parcel services, distribution centres or mail order houses, Caljan CurveTrack move almost any type of unit loads through curves. Part of a conveyor system, Caljan CurveTrack ensures that the unit is transported in the correct position to the next conveyor. Conveyor track: Bolted aluminiumConveyor direction: right to left or left to right Input height: Min. 300 mm Belt: 2-ply polyester fabric, PVC or polyurethane laminated top sideBelt support: Laminated wood or galvanised steel sheet (optional)Drive and return Conicalrollers:Drive position: Internal or external Drive performance: 0.37 to 2.2 kW Electric drive motor: Shaft-mounted gear motor, spur gear motorPower: 230/400 V, 50 HzProtection type: IP 54Noise emission: Less than 70 dB (A), depending on size and type.Safety features: Finger protection inserts, fi nger guards, bearing covers, underguarding, fi nger protection strip and drive cover.Options: Galvanised steel supports,

Design

Caljan CurveTrack is designed to be fi tted on a surface capable of bearing a load of 50kg or more, depending on the type. Alternatively the conveyor can be supplied with factory-fi tted, galvanised steel supports. A conical roller fi tted at one end of the conveyor is driven by the motor, turning the belt clockwise or anti-clockwise as required. As this roller fi ts the shape of the belt, there is very little friction, increasing the lifetime of both the belt and the roller. The belt itself is vulcanised to make it stronger. The motor can be fi tted at the top or the base of the curve and on either the inside of the outside. Belt movement is controlled by a unique belt guidance system. Belt retainers, fi tted in pairs at intervals along the conveyor, fi rmly secure the belt by the beading sewn around the belt edge. As the belt is sandwiched between the beading, there is no risk of the beading snapping off. A 10 - 15 cm overlap ensures that the beading joint is strong. The construction of the belt retainer units prevents dust and debris from blocking the belt guidance bearings, so downtime for maintenance is minimal.

sidewalls, light barriers, lateral guides, frequency control for variable speed.

USA Caljan Rite-Hite Inc.3600 E, 45th AvenueDenver, CO 80216Tel. +1 303 321 3600Fax +1 303 321 6767 Benelux Caljan Rite-Hite BVEngelenburgstraat 577391 AM TwelloTel. +31 (571) 270 444Fax +31 (571) 270 555 France www.caljanritehite.nl Caljan Rite-Hite S.A.R.L.8, Rue Georges BesseZAC du Fossé PâtéF-78330 Fontenay-le-FleuryTél +33 1 30 07 12 37 Fax +33 1 30 23 05 69 www.caljanritehite.fr UK Caljan Rite-Hite LtdMoorbridge RoadBingham Industrial EstateNottingham NG13 8GGTel. +44 (0) 1949 838 850 Fax +44 (0) 1949 836 953 www.caljanritehite.com Germany Caljan Rite-Hite GmbHIndustriestraße 7D-65439 FlörsheimTel. +49 6145 93490Fax +49 6145 934930 www.caljanritehite.de

www.caljanritehite.com

Denmark Caljan Rite-Hite ApSVed Milepaelen 6-8 DK-8361 HasselagerAarhusTel. +45 87 38 78 00 Fax +45 87 38 78 01 www.caljanritehite.com
DS0069.4 – GB – 12/2008 – © Caljan Rite-Hite Errors & Omissions Excepted – Subject to change without notice.
