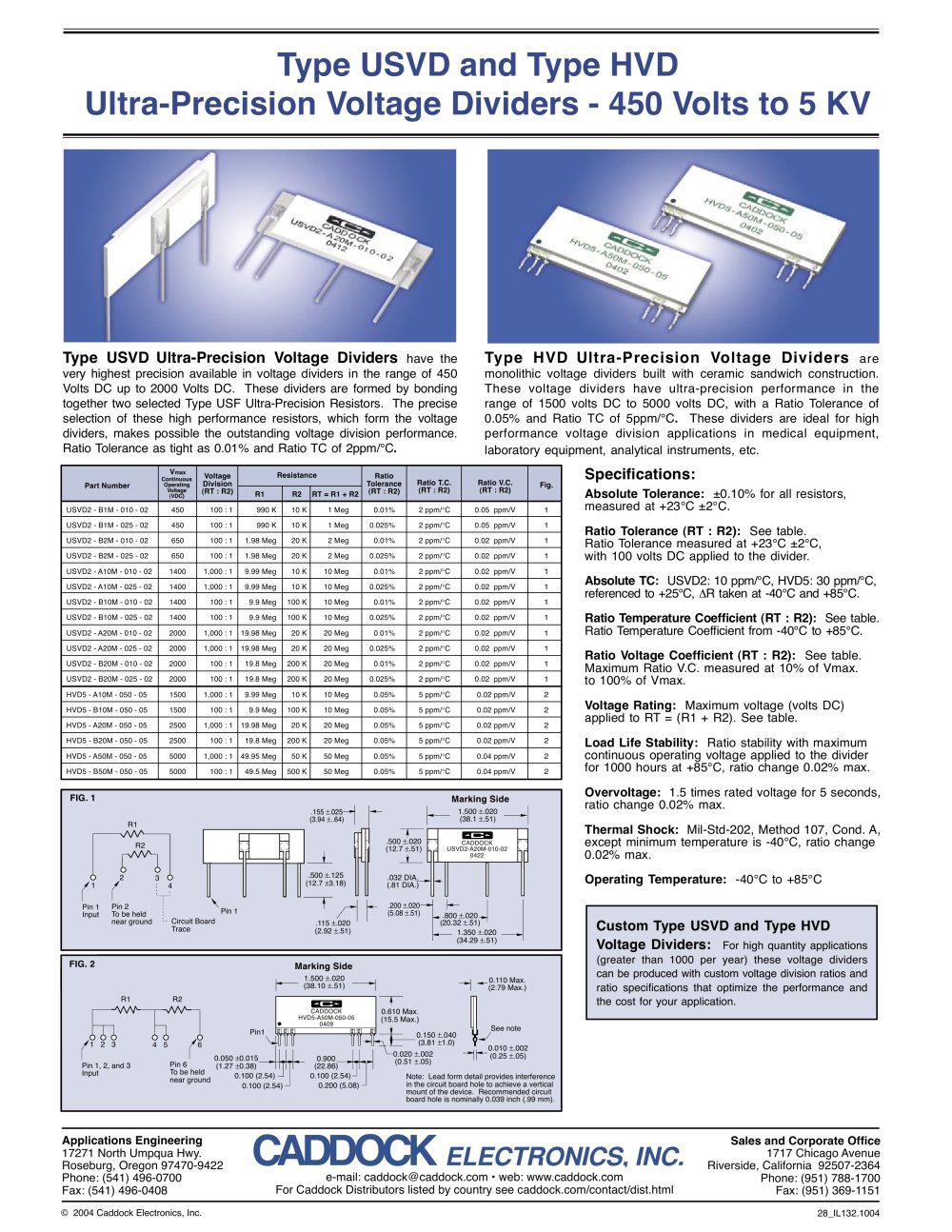

Type USVD and Type HVD Ultra-Precision Voltage Dividers - 450 Volts to 5 KV
Type USVD Ultra-Precision Voltage Dividers have the very highest precision available in voltage dividers in the range of 450 Volts DC up to 2000 Volts DC. These dividers are formed by bonding together two selected Type USF Ultra-Precision Resistors. The precise selection of these high performance resistors, which form the voltage dividers, makes possible the outstanding voltage division performance. Ratio Tolerance as tight as 0.01% and Ratio tC of 2ppm/°C.
Type HVD Ultra-Precision Voltage Dividers are
monolithic voltage dividers built with ceramic sandwich construction. These voltage dividers have ultra-precision performance in the range of 1500 volts DC to 5000 volts DC, with a Ratio Tolerance of 0.05% and Ratio TC of 5ppm/°C. These dividers are ideal for high performance voltage division applications in medical equipment, laboratory equipment, analytical instruments, etc.
Part Number
Vmax Continuous Operating Voltage (VDC)
Voltage Division (RT : R2)
Resistance
Ratio Tolerance (RT : R2)
Ratio T.C. (RT : R2)
Ratio V.C. (RT : R2)
Fig.
R1
R2
RT = R1 + R2
USVD2 - B1M - 010 - 02
450
100 : 1
990 K
10 K
1 Meg
0.01%
2 ppm^C
0.05 ppm/V
USVD2 - B1M - 025 - 02
450
100 : 1
990 K
10 K
1 Meg
0.025%
2 ppm^C
0.05 ppm/V
USVD2 - B2M - 010 - 02
650
100 : 1
1.98 Meg
20 K
2 Meg
0.01%
2 ppm^C
0.02 ppm/V
USVD2 - B2M - 025 - 02
650
100 : 1
1.98 Meg
20 K
2 Meg
0.025%
2 ppm^C
0.02 ppm/V
USVD2-A10M- 010 - 02
1400
1,000 : 1
9.99 Meg
10 K
10 Meg
0.01%
2 ppm^C
0.02 ppm/V
USVD2-A10M- 025 - 02
1400
1,000 : 1
9.99 Meg
10 K
10 Meg
0.025%
2 ppm^C
0.02 ppm/V
USVD2 - B10M - 010 - 02
1400
100 : 1
9.9 Meg
100 K
10 Meg
0.01%
2 ppm^C
0.02 ppm/V
USVD2 - B10M - 025 - 02
1400
100 : 1
9.9 Meg
100 K
10 Meg
0.025%
2 ppm^C
0.02 ppm/V
USVD2-A20M- 010 - 02
2000
1,000 : 1
19.98 Meg
20 K
20 Meg
0.01%
2 ppm^C
0.02 ppm/V
USVD2-A20M- 025 - 02
2000
1,000 : 1
19.98 Meg
20 K
20 Meg
0.025%
2 ppm^C
0.02 ppm/V
USVD2 - B20M - 010 - 02
2000
100 : 1
19.8 Meg
200 K
20 Meg
0.01%
2 ppm^C
0.02 ppm/V
USVD2 - B20M - 025 - 02
2000
100 : 1
19.8 Meg
200 K
20 Meg
0.025%
2 ppm^C
0.02 ppm/V
HVD5 - A10M - 050 - 05
1500
1,000 : 1
9.99 Meg
10 K
10 Meg
0.05%
5 ppm/t'C
0.02 ppm/V
2
HVD5 - B10M - 050 - 05
1500
100 : 1
9.9 Meg
100 K
10 Meg
0.05%
5 ppm/t'C
0.02 ppm/V
2
HVD5 - A20M - 050 - 05
2500
1,000 : 1
19.98 Meg
20 K
20 Meg
0.05%
5 ppm/t'C
0.02 ppm/V
2
HVD5 - B20M - 050 - 05
2500
100 : 1
19.8 Meg
200 K
20 Meg
0.05%
5 ppm/t'C
0.02 ppm/V
2
HVD5 - A50M - 050 - 05
5000
1,000 : 1
49.95 Meg
50 K
50 Meg
0.05%
5 ppm/t'C
0.04 ppm/V
2
HVD5 - B50M - 050 - 05
5000
100 : 1
49.5 Meg
500 K
50 Meg
0.05%
5 ppm/t'C
0.04 ppm/V
2
Specifications:
Absolute Tolerance: ±0.10% for all resistors, measured at +23°C ±2°C.
Ratio Tolerance (RT : R2): See table. Ratio Tolerance measured at +23°C ±2°C, with 100 volts DC applied to the divider.
Absolute TC: USVD2: 10 ppm/°C, HVD5: 30 ppm/°C, referenced to +25°C, AR taken at -40°C and +85°C.
Ratio Temperature Coefficient (RT : R2): See table. Ratio Temperature Coefficient from -40°C to +85°C.
Ratio Voltage Coefficient (RT : R2): See table. Maximum Ratio V.C. measured at 10% of Vmax. to 100% of Vmax.
Voltage Rating: Maximum voltage (volts DC) applied to RT = (R1 + R2). See table.
Load Life Stability: Ratio stability with maximum continuous operating voltage applied to the divider for 1000 hours at +85°C, ratio change 0.02% max.
Overvoltage: 1.5 times rated voltage for 5 seconds, ratio change 0.02% max.
Thermal Shock: Mil-Std-202, Method 107, Cond. A, except minimum temperature is -40°C, ratio change 0.02% max.
Operating Temperature: -40°C to +85°C
FIG. 1
Marking Side
1.500 ±.020 _
(38.1 ±.51)
.155 ±.025-(3.94 ±..64)
R1
CADDOCK USVD2-A20M-010-02 0422
.500 ±.125 (12.7 ±3.18)
3 ô
4
(1 (
Pin 1 Pin 2 Input To be held near ground
Pin 1
-.800 ±.020-» (20.32 ±.51)
1.350 ±.020 -(34.29 ±.51)
Circuit Board Trace
Custom Type USVD and Type HVD
Voltage Dividers: For high quantity applications (greater than 1000 per year) these voltage dividers can be produced with custom voltage division ratios and ratio specifications that optimize the performance and the cost for your application.
.115 ±.020 (2.92 ±.51)
FIG. 2
Marking Side
1.500 ±.020 (38.10 ±.51)
^0.110 Max. (2.79 Max.)
R1
R2
0.610 Max. (15.5 Max.)
,o i o oi .o
See note
0.150 ±.040 (3.81 ±1.0)
1 2 3
___,,0.010 ±.002
HT (0.25 ±.05)
0.020 ±.002 (0.51 ±.05)
0.900
(22.86) 0.100 (2.54)-
0.200 (5.08)
0.050 ±0.015 (1.27 ±0.38)
0.100 (2.54)
0.100 (2.54)
Pin 6
To be held near ground
Pin 1, 2, and 3 Input
Note: Lead form detail provides Interference In the circuit board hole to achieve a vertical mount of the device. Recommended circuit board hole is nominally 0.039 inch (.99 mm).
