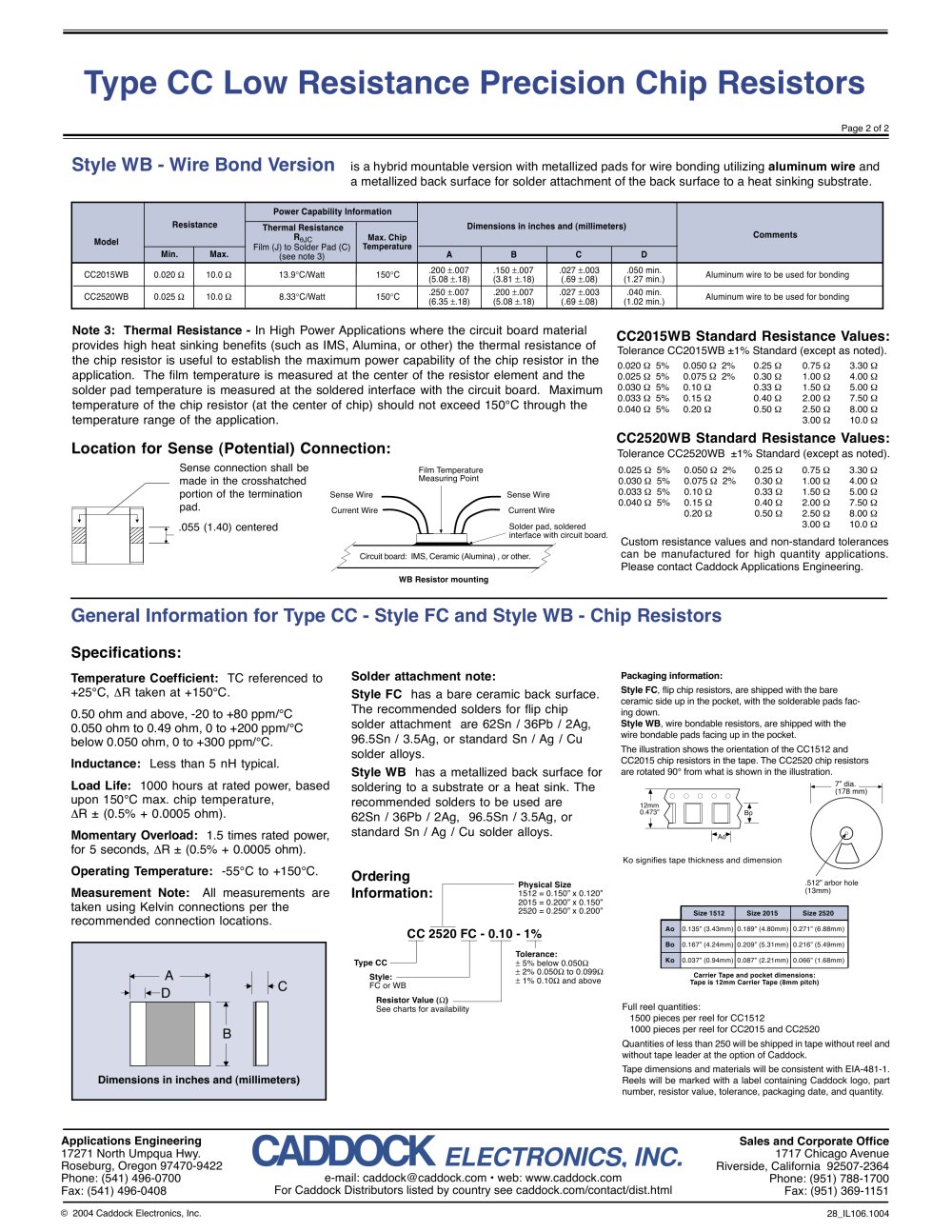

Type CC Low Resistance Precision Chip Resistors

Page 2 of 2

Style WB - Wire Bond Ver

is a hybrid mountable version with metallized pads for wire bonding utilizing aluminum wire and a metallized back surface for solder attachment of the back surface to a heat sinking substrate.


Model	Resistance		Power Capability Information		Dimensions in inches and (millimeters)				Comments
	Resistance		Thermal Resistance ^R0JC Film (J) to Solder Pad (C) (see note 3)	Max. Chip Temperature	Dimensions in inches and (millimeters)
	Min.	Max.		Max. Chip Temperature	A	B	C	D
CC2015WB	0.020 Q	10.0 Q	13.9°C/Watt	150°C	.200 ±.007 (5.08 ±.18)	.150 ±.007 (3.81 ±.18)	.027 ±.003 (.69 ±.08)	.050 min. (1.27 min.)	Aluminum wire to be used for bonding
CC2520WB	0.025 Q	10.0 Q	8.33°C/Watt	150°C	.250 ±.007 (6.35 ±.18)	.200 ±.007 (5.08 ±.18)	.027 ±.003 (.69 ±.08)	.040 min. (1.02 min.)	Aluminum wire to be used for bonding

Note 3: Thermal Resistance - In High Power Applications where the circuit board material provides high heat sinking benefits (such as IMS, Alumina, or other) the thermal resistance of the chip resistor is useful to establish the maximum power capability of the chip resistor in the application. The film temperature is measured at the center of the resistor element and the solder pad temperature is measured at the soldered interface with the circuit board. Maximum temperature of the chip resistor (at the center of chip) should not exceed 150°C through the temperature range of the application.

CC2015WB Standard Resistance Values:

Tolerance CC2015WB ±1% Standard (except as noted).


0.020 Q	5%	0.050 Q	2%	0.25 Q	0.75 Q	3.30 Q
0.025 Q	5%	0.075 Q	2%	0.30 Q	1.00 Q	4.00 Q
0.030 Q	5%	0.10 Q		0.33 Q	1.50 Q	5.00 Q
0.033 Q	5%	0.15 Q		0.40 Q	2.00 Q	7.50 Q
0.040 Q	5%	0.20 Q		0.50 Q	2.50 Q	8.00 Q
					3.00 Q	10.0 Q

CC2520WB Standard Resistance Values:

Tolerance CC2520WB ±1% Standard (except as noted).

Location for Sense (Potential) Connection:

Sense connection shall be made in the crosshatched portion of the termination pad.

.055 (1.40) centered


0.025 Q	5%	0.050 Q	2%	0.25 Q	0.75 Q	3.30 Q
0.030 Q	5%	0.075 Q	2%	0.30 Q	1.00 Q	4.00 Q
0.033 Q	5%	0.10 Q		0.33 Q	1.50 Q	5.00 Q
0.040 Q	5%	0.15 Q		0.40 Q	2.00 Q	7.50 Q
		0.20 Q		0.50 Q	2.50 Q 3.00 Q	8.00 Q 10.0 Q

Film Temperature Measuring Point

Sense Wire Current Wire

Solder pad, soldered interface with circuit board.

Custom resistance values and non-standard tolerances can be manufactured for high quantity applications. Please contact Caddock Applications Engineering.

WB Resistor mounting

General Information for Type C

ip Resistors

Specifications:

Temperature Coefficient: TC referenced to +25°C, AR taken at +150°C.

0.50 ohm and above, -20 to +80 ppm/°C 0.050 ohm to 0.49 ohm, 0 to +200 ppm/°C below 0.050 ohm, 0 to +300 ppm/°C.

Inductance: Less than 5 nH typical.

Load Life: 1000 hours at rated power, based upon 150°C max. chip temperature,

AR ± (0.5% + 0.0005 ohm).

Momentary Overload: 1.5 times rated power, for 5 seconds, AR ± (0.5% + 0.0005 ohm).

Operating Temperature: -55°C to +150°C.

Measurement Note: All measurements are taken using Kelvin connections per the recommended connection locations.

Solder attachment note: Style FC has a bare ceramic back surface. The recommended solders for flip chip solder attachment are 62Sn / 36Pb / 2Ag, 96.5Sn / 3.5Ag, or standard Sn / Ag / Cu solder alloys.

Style WB has a metallized back surface for soldering to a substrate or a heat sink. The recommended solders to be used are 62Sn / 36Pb / 2Ag, 96.5Sn / 3.5Ag, or standard Sn / Ag / Cu solder alloys.

Packaging Information:

Style FC, flip chip resistors, are shipped with the bare ceramic side up in the pocket, with the solderable pads facing down.

Style WB, wire bondable resistors, are shipped with the wire bondable pads facing up in the pocket. The illustration shows the orientation of the CC1512 and CC2015 chip resistors in the tape. The CC2520 chip resistors are rotated 90° from what is shown in the illustration.

7" dia. _ (178 mm)

o o o o o

12mm

0.473"

Ko signifies tape thickness and dimension

Ordering Information:

.512" arbor hole

(13mm)

- Physical Size

1512 = 0.150" x 0.120" 2015 = 0.200" x 0.150" 2520 = 0.250" x 0.200"


	Size 1512	Size 2015	Size 2520
Ao	0.135" (3.43mm)	0.189" (4.80mm)	0.271" (6.88mm)
Bo	0.167" (4.24mm)	0.209" (5.31mm)	0.216" (5.49mm)
Ko	0.037" (0.94mm)	0.087" (2.21mm)	0.066" (1.68mm)

CC 2520 FC - 0.10 - 1%

Tolerance:

± 5% below 0.050Ì1 ± 2% 0.050ÏÎ to 0.099ÏÎ ± 1% 0.10Ì1 and above

Type CC Style: -

Carrier Tape and pocket dimensions: Tape is 12mm Carrier Tape (8mm pitch)

FC or WB

Resistor Value (£1) -

See charts for availability

Full reel quantities:

1500 pieces per reel for CC1512

1000 pieces per reel for CC2015 and CC2520 Quantities of less than 250 will be shipped in tape without reel and without tape leader at the option of Caddock. Tape dimensions and materials will be consistent with EIA-481-1. Reels will be marked with a label containing Caddock logo, part number, resistor value, tolerance, packaging date, and quantity.

Applications Engineering Sales and Corporate Office

17271 North Umpqua Hwy. #Af^ ¹⁷¹⁷ Chicago Avenue

Roseburg, Oregon 97470-9422 If WW- Riverside, California 92507-2364

Phone: (541) 496-0700 e-mail: caddock@caddock.com • web: www.caddock.com Phone: (951) 788-1700

Fax: (541) 496-0408 For Caddock Distributors listed by country see caddock.com/contact/dist.html Fax: (951) 369-1151

28_IL106.1004
