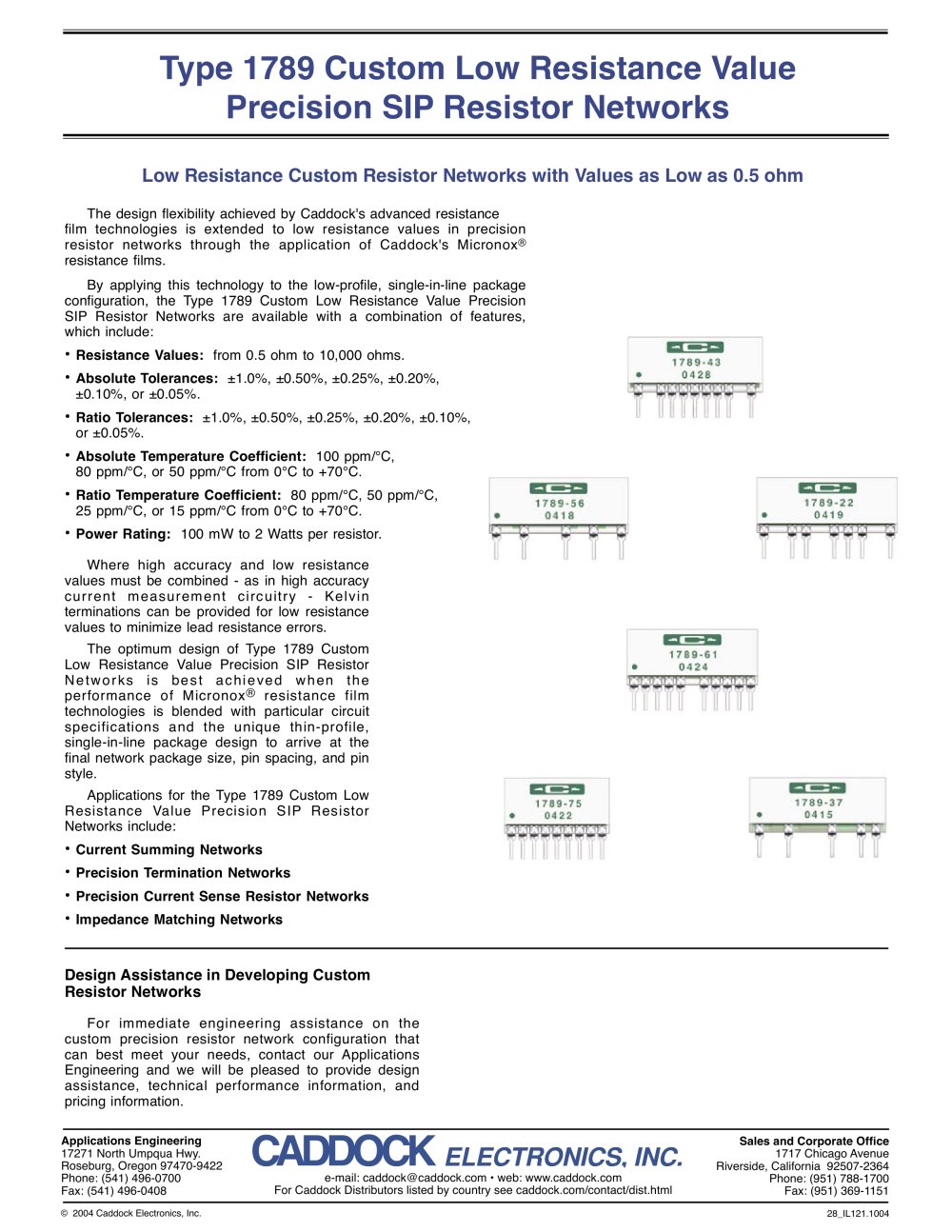

| Type 1789 Custom Low Resistance Value Precision SIP Resistor Networks | ||||||||||||||
| Low Resistance Custom Resistor Networks with Values as Low as 0.5 ohm | ||||||||||||||
| The design flexibility achieved by Caddock's advanced resistance film technologies is extended to low resistance values in precision resistor networks through the application of Caddock's Micronox® resistance films. By applying this technology to the low-profile, single-in-line package configuration, the Type 1789 Custom Low Resistance Value Precision SIP Resistor Networks are available with a combination of features, which include: • Resistance Values: from 0.5 ohm to 10,000 ohms. • Absolute Tolerances: ±1.0%, ±0.50%, ±0.25%, ±0.20%, ±0.10%, or ±0.05%. • Ratio Tolerances: ±1.0%, ±0.50%, ±0.25%, ±0.20%, ±0.10%, or ±0.05%. • Absolute Temperature Coefficient: 100 ppm/°C, 80 ppm/°C, or 50 ppm/°C from 0°C to +70°C. • Ratio Temperature Coefficient: 80 ppm/°C, 50 ppm/°C, 25 ppm/°C, or 15 ppm/°C from 0°C to +70°C. • Power Rating: 100 mW to 2 Watts per resistor. Where high accuracy and low resistance values must be combined - as in high accuracy current measurement circuitry - Kelvin terminations can be provided for low resistance values to minimize lead resistance errors. The optimum design of Type 1789 Custom Low Resistance Value Precision SIP Resistor Networks is best achieved when the performance of Micronox® resistance film technologies is blended with particular circuit specifications and the unique thin-profile, single-in-line package design to arrive at the final network package size, pin spacing, and pin style. Applications for the Type 1789 Custom Low Resistance Value Precision SIP Resistor Networks include: • Current Summing Networks • Precision Termination Networks • Precision Current Sense Resistor Networks • Impedance Matching Networks | ||||||||||||||
| Design Assistance in Developing Custom Resistor Networks | ||||||||||||||
| Applications Engineering Sales and Corporate Office 17271 North Umpqua Hwy. Ihlf* 1717 Chicago Avenue Roseburg, Oregon 97470-9422 If WW. Riverside, California 92507-2364 Phone: (541) 496-0700 e-mail: caddock@caddock.com • web: www.caddock.com Phone: (951) 788-1700 Fax: (541) 496-0408 For Caddock Distributors listed by country see caddock.com/contact/dist.html Fax: (951) 369-1151 | ||||||||||||||
| © 2004 Caddock Electronics, Inc. | 28_IL121.1004 | |||||||||||||
