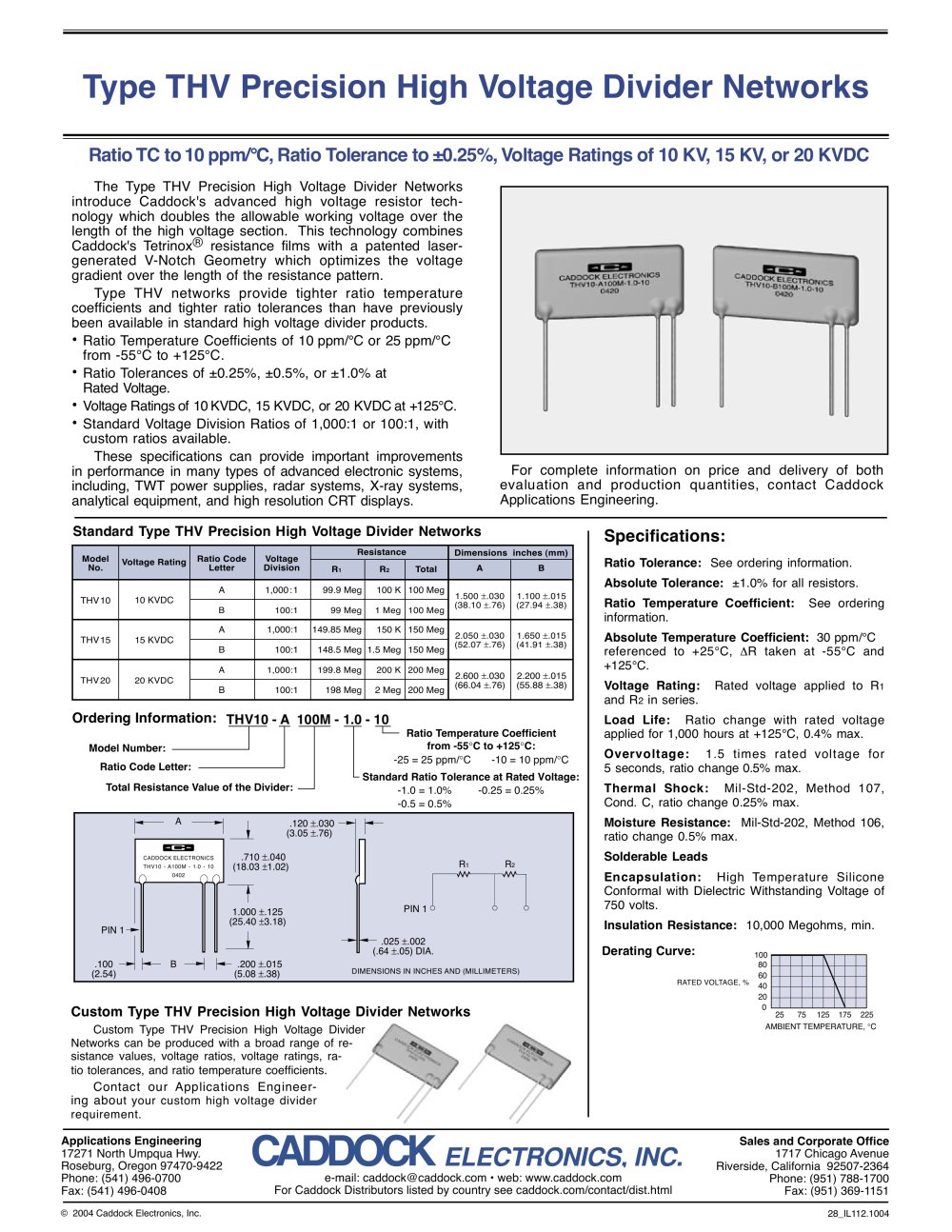

Type THV Précision High Voltage Divider Networks

Ratio TC to 10 ppm/°C, Ratio Tolerance to ±0.25%, Voltage Ratings of 10 KV, 15 KV, or 20 KVDC

The Type THV Précision High Voltage Divider Networks introduce Caddock's advanced high voltage resistor technology which doubles the allowable working voltage over the length of the high voltage section. This technology combines Caddock's Tetrinox^® resistance films with a patented laser-generated V-Notch Geometry which optimizes the voltage gradient over the length of the resistance pattern.

Type THV networks provide tighter ratio temperature coefficients and tighter ratio tolerances than have previously been available in standard high voltage divider products.

• Ratio Temperature Coefficients of 10 ppm/°C or 25 ppm/°C

from -55°C to +125°C.

• Ratio Tolerances of ±0.25%, ±0.5%, or ±1.0% at Rated Voltage.

• Voltage Ratings of 10 KVDC, 15 KVDC, or 20 KVDC at +125°C.

• Standard Voltage Division Ratios of 1,000:1 or 100:1, with custom ratios available.

These specifications can provide important improvements in performance in many types of advanced electronic systems, including, TWT power supplies, radar systems, X-ray systems, analytical equipment, and high resolution CRT displays.

For complete information on price and delivery of both evaluation and production quantities, contact Caddock Applications Engineering.

Standard Type THV Precision High Voltage Divider Networks

Specifications:


Model No.	Voltage Rating	Ratio Code Letter	Voltage Division	Resistance			Dimensions inches (mm)
Model No.	Voltage Rating	Ratio Code Letter	Voltage Division	R1	R2	Total	A	B
THV10	10 KVDC	A	1,000:1	99.9 Meg	100 K	100 Meg	1.500 ±.030 (38.10 ±.76)	1.100 ±.015 (27.94 ±.38)
THV10	10 KVDC	B	100:1	99 Meg	1 Meg	100 Meg	1.500 ±.030 (38.10 ±.76)	1.100 ±.015 (27.94 ±.38)
THV15	15 KVDC	A	1,000:1	149.85 Meg	150 K	150 Meg	2.050 ±.030 (52.07 ±.76)	1.650 ±.015 (41.91 ±.38)
THV15	15 KVDC	B	100:1	148.5 Meg	1.5 Meg	150 Meg	2.050 ±.030 (52.07 ±.76)	1.650 ±.015 (41.91 ±.38)
THV20	20 KVDC	A	1,000:1	199.8 Meg	200 K	200 Meg	2.600 ±.030 (66.04 ±.76)	2.200 ±.015 (55.88 ±.38)
THV20	20 KVDC	B	100:1	198 Meg	2 Meg	200 Meg	2.600 ±.030 (66.04 ±.76)	2.200 ±.015 (55.88 ±.38)

Ratio Tolerance: See ordering information.

Absolute Tolerance: ±1.0% for all resistors.

Ratio Temperature Coefficient: See ordering information.

Absolute Temperature Coefficient: 30 ppm/°C referenced to +25°C, AR taken at -55°C and +125°C.

Voltage Rating:

Rated voltage applied to R1

and R2 in series.

Load Life: Ratio change with rated voltage applied for 1,000 hours at +125°C, 0.4% max.

Overvoltage: 1.5 times rated voltage for 5 seconds, ratio change 0.5% max.

Thermal Shock: Mil-Std-202, Method 107,

Cond. C, ratio change 0.25% max.

Moisture Resistance: Mil-Std-202, Method 106, ratio change 0.5% max.

Solderable Leads

Encapsulation: High Temperature Silicone

Conformal with Dielectric Withstanding Voltage of

750 volts.

Insulation Resistance: 10,000 Megohms, min. Derating Curve:

Ordering Information: THV10 - A 100M

L0 - 10

~~'—— Ratio Temperature Coefficient from -55°C to +125°C:

-25 = 25 ppm/°C -10 = 10 ppm/°C Standard Ratio Tolerance at Rated Voltage:

-1.0 = 1.0% -0.25 = 0.25% -0.5 = 0.5%

Model Number:

Ratio Code Letter:

Total Resistance Value of the Divider:

.120 ±.030 (3.05 ±.76)

caddock electronics thv10 - a100m - 1.0 - 10 0402

.710 ±.040 (18.03 ±1.02)

PIN 1-

1.000 ±.125 (25.40 ±3.18)

PIN 1 o

i— .025 ±.002 (.64 ±.05) DIA.

.100 -(2.54)

- .200 ±.015 (5.08 ±.38)

DIMENSIONS IN INCHES AND (MILLIMETERS)

RATED VOLTAGE, %

Custom Type THV Precision High Voltage Divider Networks

Custom Type THV Precision High Voltage Divider JÊj^, Networks can be produced with a broad range of resistance values, voltage ratios, voltage ratings, ratio tolerances, and ratio temperature coefficients.

Contact our Applications Engineering about your custom high voltage divider requirement.

25 75 125 175 225 AMBIENT TEMPERATURE, °C

Applications Engineering Sales and Corporate Office

17271 North Umpqua Hwy. Ihlf* 1717 Chicago Avenue

Roseburg, Oregon 97470-9422 «WW» Riverside, California 92507-2364

Phone: (541) 496-0700 e-mail: caddock@caddock.com • web: www.caddock.com Phone: (951) 788-1700

Fax: (541) 496-0408 For Caddock Distributors listed by country see caddock.com/contact/dist.html Fax: (951) 369-1151

28_IL112.1004
