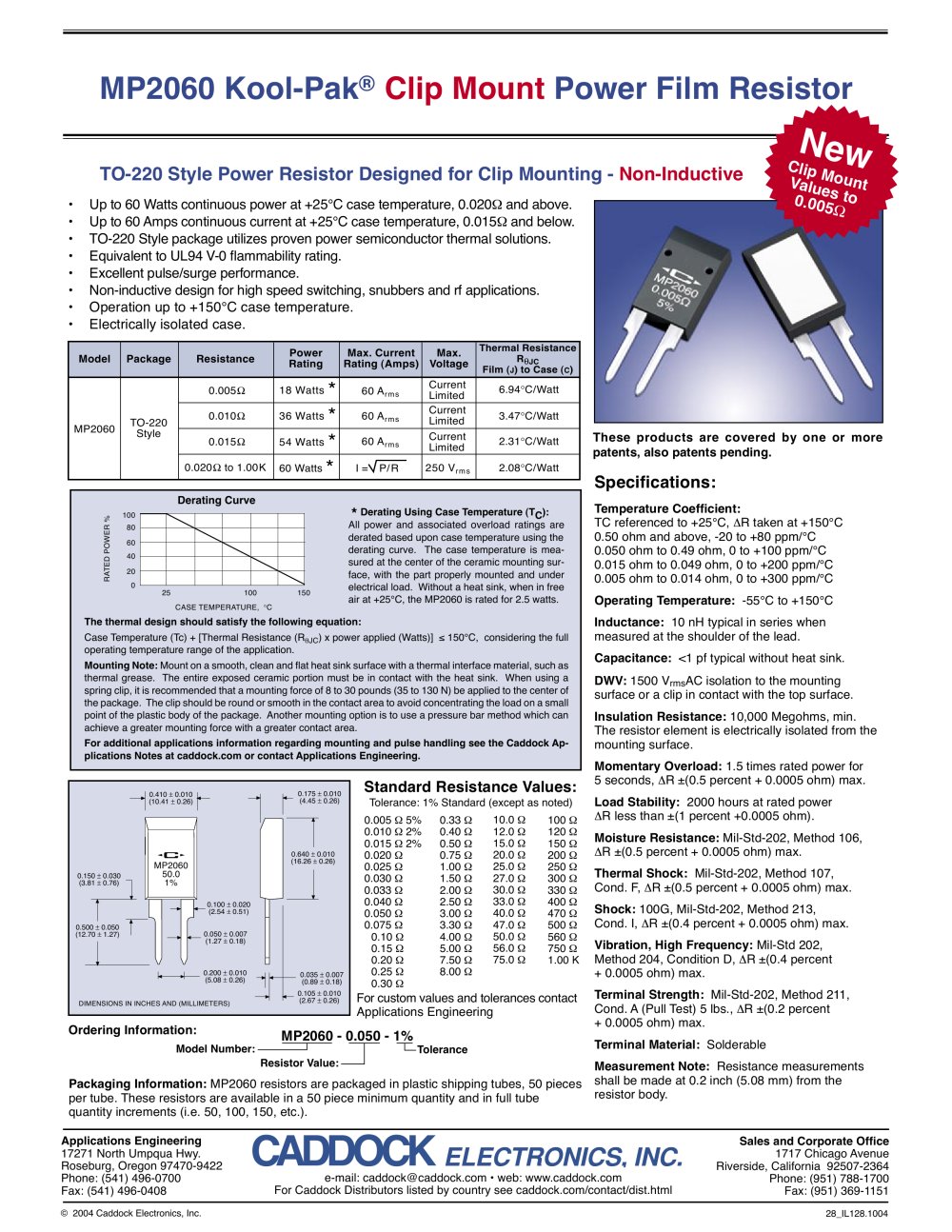

MP2060 Kool-Pak® Clip Mount Power Film Resistor
TO-220 Style Power Resistor Designed for Clip Mounting - Non-Inductive
Up to 60 Watts continuous power at +25°C case temperature, 0.020Q and above. Up to 60 Amps continuous current at +25°C case temperature, 0.015Q and below. TO-220 Style package utilizes proven power semiconductor thermal solutions. Equivalent to UL94 V-0 flammability rating. Excellent pulse/surge performance.
Non-inductive design for high speed switching, snubbers and rf applications. Operation up to +150°C case temperature. Electrically isolated case.
°oot!°
Model
Package
Resistance
Power Rating
Max. Current Rating (Amps)
Max. Voltage
Thermal Resistance
r6jc
Film (j) to Case (c)
MP2060
TO-220 Style
0.005Q
18 Watts *
60 Arms
Current Limited
6.94°C/Watt
0.010Q
36 Watts *
60 Arms
Current Limited
3.47°C/Watt
0.015Q
54 Watts *
60 Arms
Current Limited
2.31°C/Watt
0.020Q to 1.00K
60 Watts *
I =V P/R
250 Vrms
2.08°C/Watt
These products are covered by one or more patents, also patents pending.
Specifications:
Temperature Coefficient:
TC referenced to +25°C, AR taken at +150°C 0.50 ohm and above, -20 to +80 ppm/°C 0.050 ohm to 0.49 ohm, 0 to +100 ppm/°C 0.015 ohm to 0.049 ohm, 0 to +200 ppm/°C 0.005 ohm to 0.014 ohm, 0 to +300 ppm/°C
Operating Temperature: -55°C to +150°C
Inductance: 10 nH typical in series when measured at the shoulder of the lead.
Capacitance: <1 pf typical without heat sink.
DWV: 1500 VrmsAC isolation to the mounting surface or a clip in contact with the top surface.
Insulation Resistance: 10,000 Megohms, min. The resistor element is electrically isolated from the mounting surface.
Momentary Overload: 1.5 times rated power for 5 seconds, AR ±(0.5 percent + 0.0005 ohm) max.
Load Stability: 2000 hours at rated power AR less than ±(1 percent +0.0005 ohm).
Moisture Resistance: Mil-Std-202, Method 106, AR ±(0.5 percent + 0.0005 ohm) max.
Thermal Shock: Mil-Std-202, Method 107, Cond. F, AR ±(0.5 percent + 0.0005 ohm) max.
Shock: 100G, Mil-Std-202, Method 213, Cond. I, AR ±(0.4 percent + 0.0005 ohm) max.
Vibration, High Frequency: Mil-Std 202, Method 204, Condition D, AR ±(0.4 percent + 0.0005 ohm) max.
Terminal Strength: Mil-Std-202, Method 211, Cond. A (Pull Test) 5 lbs., AR ±(0.2 percent + 0.0005 ohm) max.
Terminal Material: Solderable
Measurement Note: Resistance measurements shall be made at 0.2 inch (5.08 mm) from the resistor body.
Derating Curve
* Derating Using Case Temperature He):
All power and associated overload ratings are derated based upon case temperature using the derating curve. The case temperature is mea­sured at the center of the ceramic mounting sur­face, with the part properly mounted and under electrical load. Without a heat sink, when in free air at +25°C, the MP2060 is rated for 2.5 watts.
100 80 60 40 20 0
LU
ä o
CL
Q LU
Lt
!5 100 150
CASE TEMPERATURE, °C
The thermal design should satisfy the following equation:
Case Temperature (Tc) + [Thermal Resistance (RejC) x power applied (Watts)] s 150°C, considering the full operating temperature range of the application.
Mounting Note: Mount on a smooth, clean and flat heat sink surface with a thermal interface material, such as thermal grease. The entire exposed ceramic portion must be in contact with the heat sink. When using a spring clip, it is recommended that a mounting force of 8 to 30 pounds (35 to 130 N) be applied to the center of the package. The clip should be round or smooth in the contact area to avoid concentrating the load on a small point of the plastic body of the package. Another mounting option is to use a pressure bar method which can achieve a greater mounting force with a greater contact area.
For additional applications information regarding mounting and pulse handling see the Caddock Ap­plications Notes at caddock.com or contact Applications Engineering.
Standard Resistance Values:
Tolerance: 1% Standard (except as noted)
0.005 Q 5%
0.33 Q
10.0 Q
100 Q
0.010 Q 2%
0.40 Q
12.0 Q
120 Q
0.015 Q 2%
0.50 Q
15.0 Q
150 Q
0.020 Q
0.75 Q
20.0 Q
200 Q
0.025 Q
1.00 Q
25.0 Q
250 Q
0.030 Q
1.50 Q
27.0 Q
300 Q
0.033 Q
2.00 Q
30.0 Q
330 Q
0.040 Q
2.50 Q
33.0 Q
400 Q
0.050 Q
3.00 Q
40.0 Q
470 Q
0.075 Q
3.30 Q
47.0 Q
500 Q
0.10 Q
4.00 Q
50.0 Q
560 Q
0.15 Q
5.00 Q
56.0 Q
750 Q
0.20 Q
7.50 Q
75.0 Q
1.00 K
0.25 Q
8.00 Q
0.30 Q
For custom values and tolerances contact Applications Engineering
Ordering Information:
Model Number: -
MP2060 - 0.050 - 1%
-Tolerance
Resistor Value:-
Packaging Information: MP2060 resistors are packaged in plastic shipping tubes, 50 pieces per tube. These resistors are available in a 50 piece minimum quantity and in full tube quantity increments (i.e. 50, 100, 150, etc.).
Applications Engineering Sales and Corporate Office
17271 North Umpqua Hwy. Ihlf* 1717 Chicago Avenue
Roseburg, Oregon 97470-9422 ffWW- Riverside, California 92507-2364
Phone: (541) 496-0700 e-mail: caddock@caddock.com • web: www.caddock.com Phone: (951) 788-1700
Fax: (541) 496-0408 For Caddock Distributors listed by country see caddock.com/contact/dist.html Fax: (951) 369-1151
© 2004 Caddock Electronics, Inc.
28_IL128.1004
