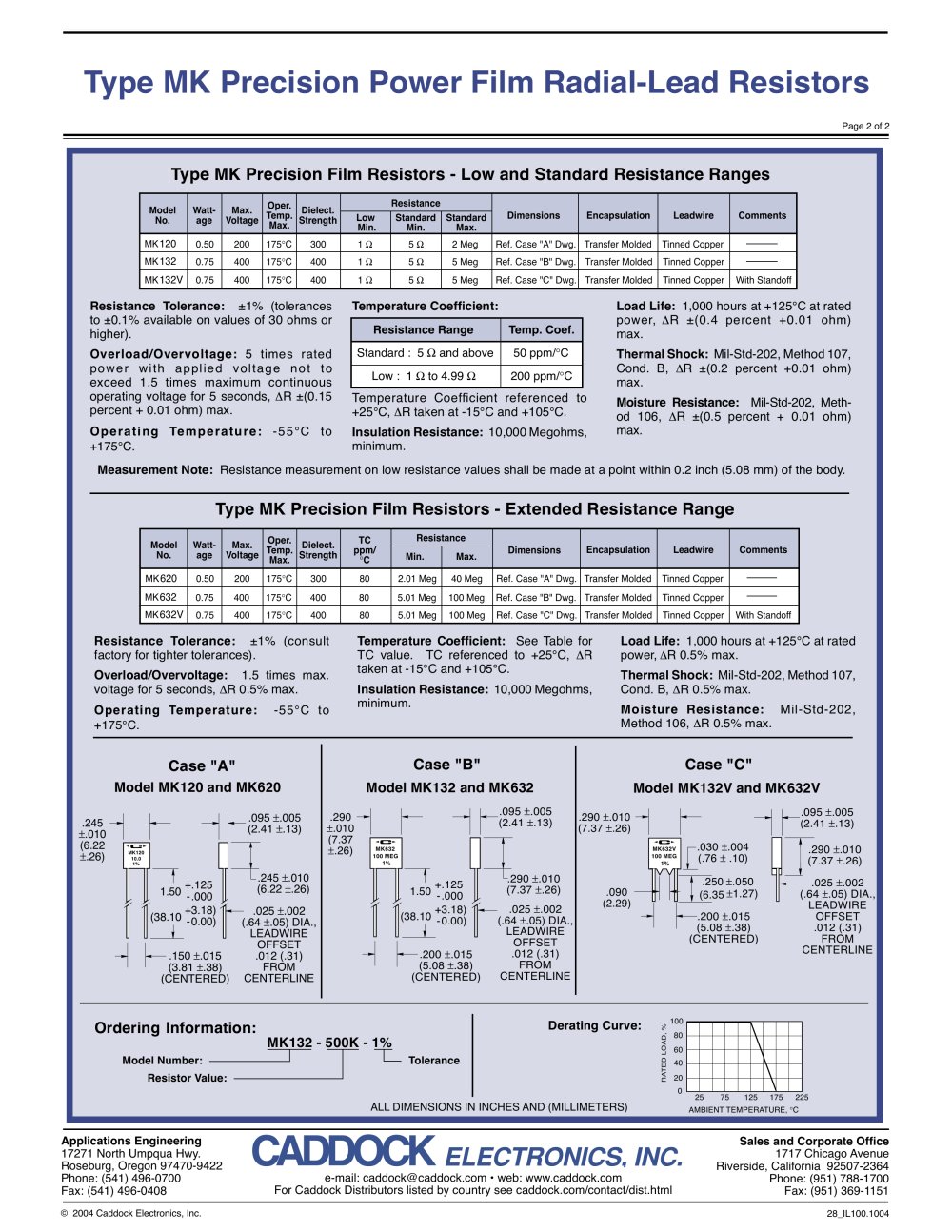

Type MK Precision Power Film Radial-Lead Resistors

Page 2 of 2

Type MK Precision Film Resistors - Low and Standard Resistance Ranges

Model No.

Wattage

Max. Voltage

Oper. Temp. Max.

Dielect. Strength

Resistance

Dimensions

Encapsulation

Leadwire

Comments

Low Min.

Standard Min.

Standard Max.

MK120

0.50

200

175°C

300

1 a

5 a

2 Meg

Ref. Case "A" Dwg.

Transfer Molded

Tinned Copper

MK132

0.75

400

175°C

400

1 a

5 a

5 Meg

Ref. Case "B" Dwg.

Transfer Molded

Tinned Copper

MK132V

0.75

400

175°C

400

1 a

5 a

5 Meg

Ref. Case "C" Dwg.

Transfer Molded

Tinned Copper

With Standoff

Load Life: 1,000 hours at +125°C at rated power, AR ±(0.4 percent +0.01 ohm) max.

Thermal Shock: Mil-Std-202, Method 107, Cond. B, AR ±(0.2 percent +0.01 ohm) max.

Moisture Resistance: Mil-Std-202, Method 106, AR ±(0.5 percent + 0.01 ohm) max.

Resistance Tolerance: ±1% (tolerances to ±0.1% available on values of 30 ohms or higher).

Overload/Overvoltage: 5 times rated power with applied voltage not to exceed 1.5 times maximum continuous operating voltage for 5 seconds, AR ±(0.15 percent + 0.01 ohm) max.

Operating Temperature: -55°C to +175°C.

Temperature Coefficient:


	Resistance Range	Temp. Coef.
	Standard : 5 Q and above	50 ppm/°C
	Low : 1 d to 4.99 d	200 ppm/°C

Temperature Coefficient referenced to +25°C, AR taken at -15°C and +105°C.

Insulation Resistance: 10,000 Megohms, minimum.

Measurement Note: Resistance measurement on low resistance values shall be made at a point within 0.2 inch (5.08 mm) of the body.

Type MK Precision Film Resistors - Extended Resistance Range

Model

No.

Wattage

Max. Voltage

Oper. Temp. Max.

Dielect. Strength

TC ppm/ C

Resistance

Dimensions

Encapsulation

Leadwire

Comments

Min.

Max.

MK620

0.50

200

175°C

300

2.01 Meg

40 Meg

Ref. Case "A" Dwg.

Transfer Molded

Tinned Copper

MK632

0.75

400

175°C

400

5.01 Meg

100 Meg

Ref. Case "B" Dwg.

Transfer Molded

Tinned Copper

MK632V

0.75

400

175°C

400

5.01 Meg

100 Meg

Ref. Case "C" Dwg.

Transfer Molded

Tinned Copper

With Standoff

Temperature Coefficient: See Table for TC value. TC referenced to +25°C, AR taken at -15°C and +105°C.

Insulation Resistance: 10,000 Megohms, minimum.

Load Life: 1,000 hours at +125°C at rated power, AR 0.5% max.

Thermal Shock: Mil-Std-202, Method 107, Cond. B, AR 0.5% max.

Moisture Resistance: Mil-Std-202, Method 106, AR 0.5% max.

Resistance Tolerance: ±1% (consult factory for tighter tolerances).

Overload/Overvoltage: 1.5 times max. voltage for 5 seconds, AR 0.5% max.

Operating Temperature: -55°C to +175°C.

Case "B" Model MK132 and MK632

Case "C"

Model MK132V and MK632V

Case "A" Model MK120 and MK620


		-- —

	MK632
	100 MEG
	1%

_.095 ±.005 (2.41 ±.13)




	MK120
	10.0
	^1%

.290 ±.010 H (7.37 ±.26)

.290 -±.010 (7.37 ±.26)

.095 ±.005 (2.41 ±.13)

.245 -±.010 (6.22 ±.26)

.030 ±.004 (.76 ± .10)

7250 ±.050 (6.35 ±1.27)

.290 ±.010 (7.37 ±.26)

- .025 ±.002 (.64 ±.05) DIA., LEADWIRE OFFSET .012 (.31) FROM CENTERLINE

MK632V 100 MEG

l.245 ±.010 (6.22 ±.26)

- .025 ±.002 (.64 ±.05) DIA., LEADWIRE OFFSET .012 (.31) FROM CENTERLINE

^L.290 ±.010 (7.37 ±.26)

- .025 ±.002 (.64 ±.05) DIA., LEADWIRE OFFSET .012 (.31) FROM CENTERLINE

₁ ₅₀ +.125 . ^1.50 -.000

₍₃₈ ₁₀ +3.18) ^(38.10 -0.00)

₁ ₅₀ + 125 ¹ ⁵⁰ -.000

⁽³⁸¹⁰ +0^.o⁸)

.090 (2.29)

— 200 ±.015 (5.08 ±.38) (CENTERED)

— .200 ±.015 (5.08 ±.38) (CENTERED)

— .150 ±.015 (3.81 ±.38) (CENTERED)

, 100

; 80 S 60 ! 40 i 20

Derating Curve:

Ordering Information:

MK132 - 500K - 1%

Model Number:

Tolerance

Resistor Value:

CADDOCK

Applications Engineering

17271 North Umpqua Hwy. Roseburg, Oregon 97470-9422 Phone: (541) 496-0700 Fax: (541) 496-0408

Sales and Corporate Office

1717 Chicago Avenue Riverside, California 92507-2364

Phone: (951) 788-1700

Fax: (951) 369-1151

ELECTRONICS, INC.

e-mail: caddock@caddock.com • web: www.caddock.com For Caddock Distributors listed by country see caddock.com/contact/dist.html

28_IL100.1004

ALL DIMENSIONS IN

J INCHES AND (MILLIMETERS)

0

25 75 125 175 225 AMBIENT TEMPERATURE, °C
