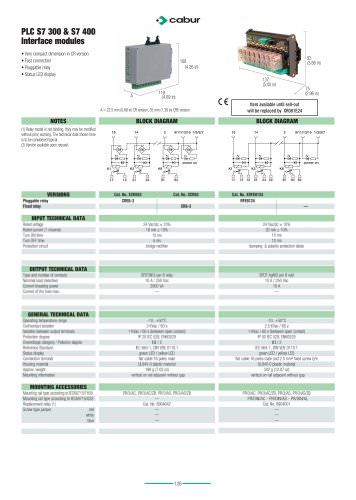

Electromechanical relay modules - 27 / 29 Pages

126
137
93
75
..
119
108
A
A = 22.5 mm (0.88 in) CR version, 35 mm (1.38 in) CRE version
VERSIONS Cat. No. XCRE83 Cat. No. XCR83
Pluggable relay CRE8-3
Fixed relay CR8-3
INPUT TECHNICAL DATA
Rated voltage 24 Vac/dc ± 10%
Rated current (1 channel) 16 mA ± 10%
Turn ON time 15 ms
Turn OFF time 5 ms
Protection circuit bridge rectifier
OUTPUT TECHNICAL DATA
Type and number of contacts SPST(NO) per 8 relay
Nominal load (resistive) 10 A / 250 Vac
Current breaking power 2000 VA
Current of the fuse max. —
GENERAL TECHNICAL DATA
Operating temperature range -10...+50°C
Coil/contact isolation 3 KVac / 60 s
Isolation between output terminals 1 KVac / 60 s (between open contact)
Protection degree IP 20 IEC 529, EN60529
Overvoltage category / Pollution degree ...... / 2
Reference Standard IEC 664-1, DIN VDE 0110.1
Status display green LED / yellow LED
Connection terminal flat cable 16 poles male
Housing material UL94V-0 plastic material
Approx. weight 199 g (7.02 oz)
Mounting information vertical on rail adjacent without gap
MOUNTING ACCESSORIES
Mounting rail type according to IEC60715/TH35 PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB
Mounting rail type according to IEC60715/G32 —
Replacement relay (1) Cat. No. 8904042
Screw type jumper red
white
blue
———
Cat. No. XRFE8124
RFE8124

24 Vac/dc ± 10%
20 mA ± 10%
15 ms
10 ms
damping & polarity protection diode
SPDT AgNiO per 8 relé
10 A / 250 Vac
10 A

-10...+50°C
2.5 KVac / 60 s
1 KVac / 60 s (between open contact)
IP 00 IEC 529, EN60529
...... / 2
IEC 664-1, DIN VDE 0110.1
green LED / yellow LED
flat cable 16 poles male and 2.5 mm² fixed screw type
UL94V-0 plastic material
342 g (12.07 oz)
vertical on rail adjacent without gap
PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB
PR/DIN/AC - PR/DIN/AS - PR/DIN/AL
Cat. No. 8904001
———
PLC S7 300 & S7 400
Interface modules
• Very compact dimension in CR version
• Fast connection
• Pluggable relay
• Status LED display
NOTES BLOCK DIAGRAM BLOCK DIAGRAM
(1) Relay model is not binding, they may be modified
without prior warning. The technical data shown here
is to be considered typical.
(2) Version available upon request.
(5.40 in)
(3.66 in)
(2.96 in)
(4.69 in)
(4.26 in)
Item available until sell-out
will be replaced by XR081E24
