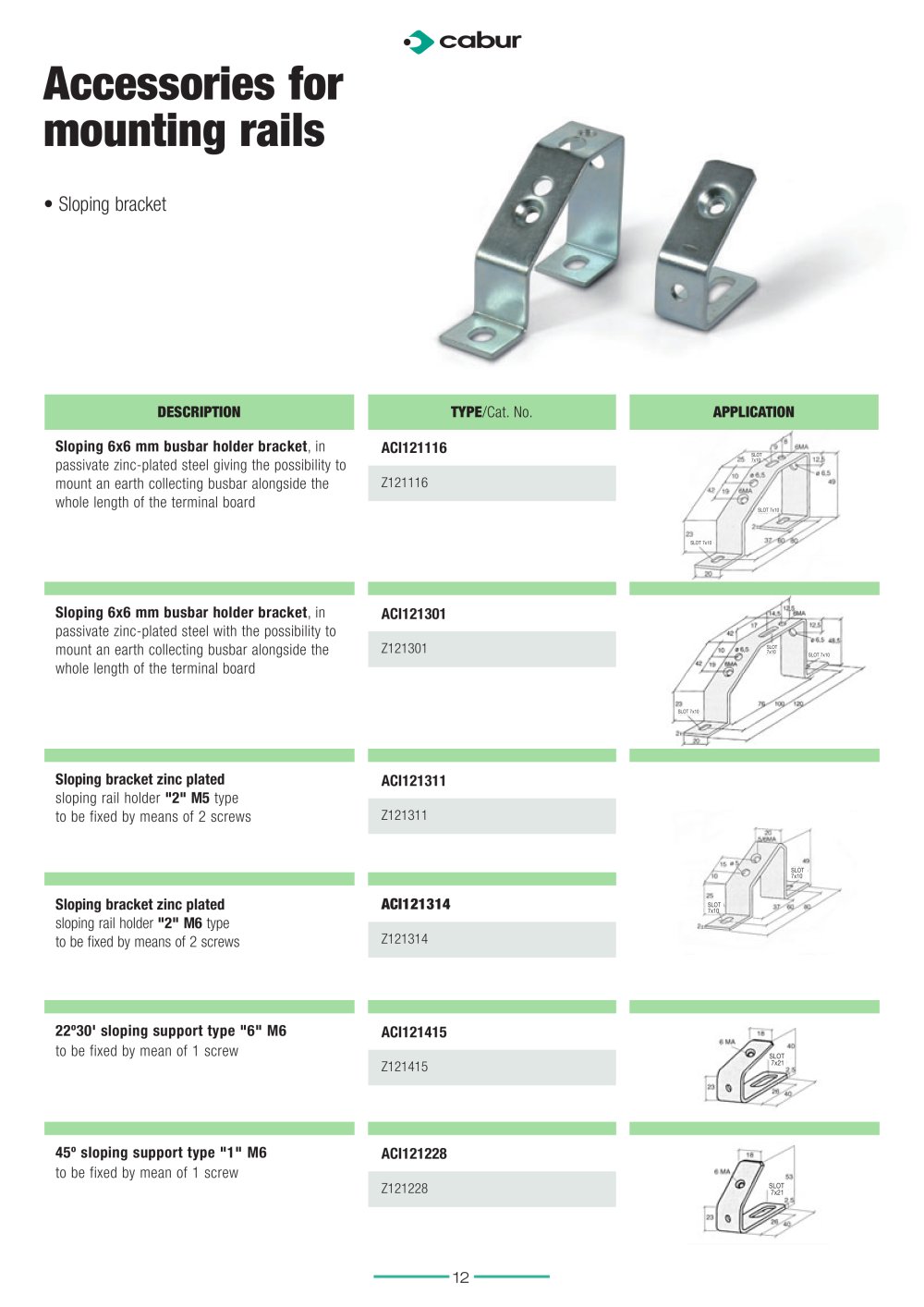

Accessories formounting rails

• Sloping bracket

DESCRIPTION TYPE /Cat. No. APPLICATION Sloping 6x6 mm busbar holder bracket ,inpassivate zinc-plated steel giving the possibility to mount an earth collecting busbar alongside the whole length of the terminal board ACI121116
SLOT7x10 Z121116 SLOT 7x10 Sloping 6x6 mm busbar holder bracket , inpassivate zinc-plated steel with the possibility to mount an earth collecting busbar alongside the whole length of the terminal board
SLOT 7x10 ACI121301
Z121301 SLOT7x10 SLOT 7x10 SLOT 7x10 Sloping bracket zinc plated sloping rail holder "2" M5 typeto be fixed by means of 2 screws ACI121311
Z121311 SLOT 7x10 Sloping bracket zinc plated ACI121314
SLOT 7x10 sloping rail holder "2" M6 typeto be fixed by means of 2 screws
Z121314 22º30' sloping support type "6" M6 ACI121415 to be fixed by mean of 1 screw
SLOT7x21 Z121415 45º sloping support type "1" M6 ACI121228 to be fixed by mean of 1 screw
Z121228 SLOT7x21 12
