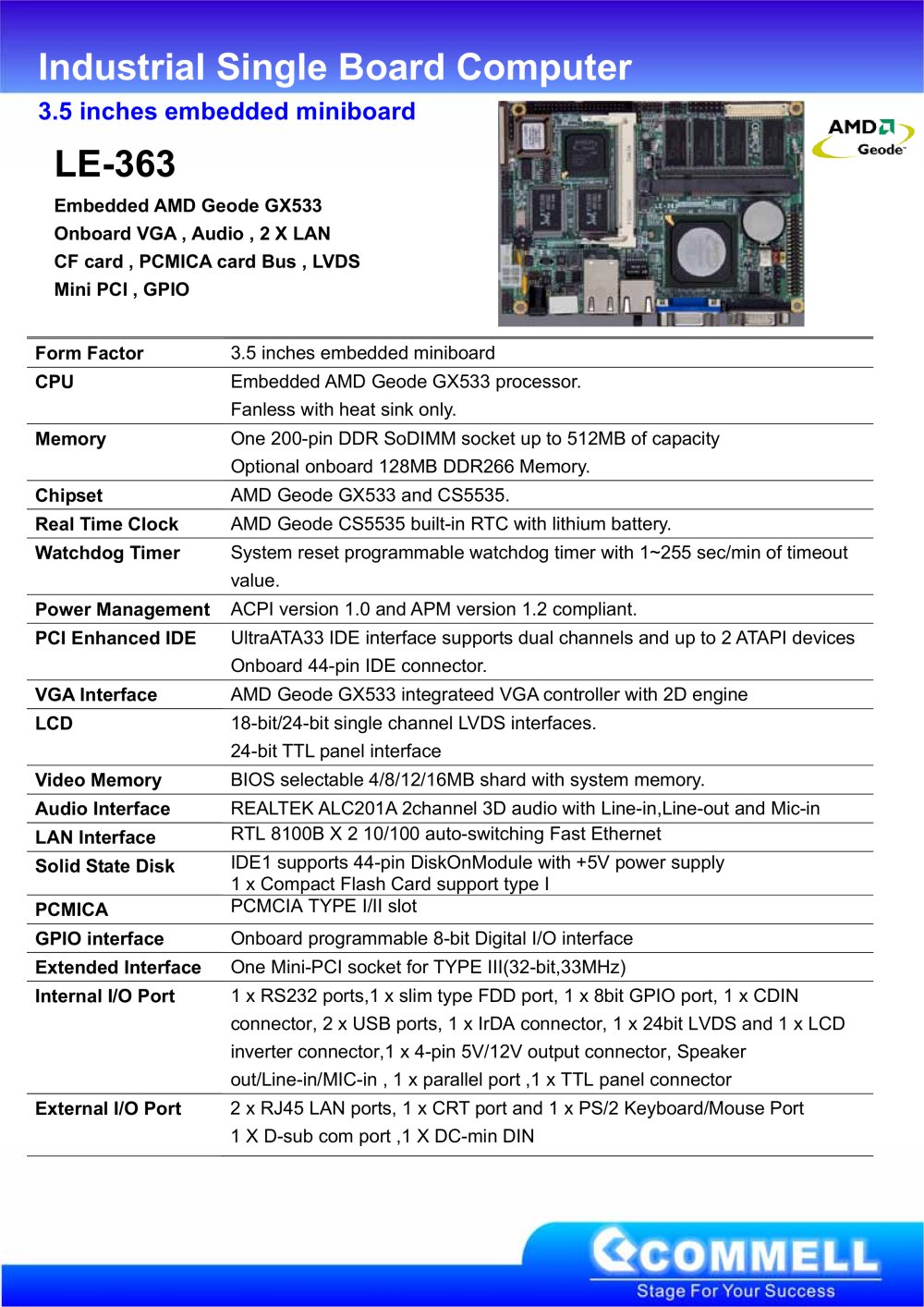

EmbeddedAMD Geode GX533 Onboard VGA , Audio , 2 X LAN CF card , PCMICA card Bus , LVDS Mini PCI , GPIO Form Factor 3.5 inches embedded miniboard CPU EmbeddedAMD Geode GX533 processor.Fanless with heat sink only. Memory One 200-pin DDR SoDIMM socket up to 512MB of capacityOptional onboard 128MB DDR266 Memory. Chipset AMD Geode GX533 and CS5535. Real Time Clock AMD Geode CS5535 built-in RTC with lithium battery. Watchdog Timer System reset programmable watchdog timer with 1~255 sec/min of timeout value. Power Management ACPI version 1.0 and APM version 1.2 compliant. PCI Enhanced IDE UltraATA33 IDE interface supports dual channels and up to 2 ATAPI devicesOnboard 44-pin IDE connector. VGA Interface AMD Geode GX533 integrateed VGA controller with 2D engine LCD 18-bit/24-bit single channel LVDS interfaces. 24-bitTTL panel interface Video Memory BIOS selectable 4/8/12/16MB shard with system memory. Audio Interface REALTEKALC201A 2channel 3D audio with Line-in,Line-out and Mic-in LAN Interface RTL 8100B X 2 10/100 auto-switching Fast Ethernet Solid State Disk IDE1 supports 44-pin DiskOnModule with +5V power supply 1 x Compact Flash Card support type I PCMICA PCMCIA TYPE I/II slot GPIO interface Onboard programmable 8-bit Digital I/O interface Extended Interface One Mini-PCI socket for TYPE III(32-bit,33MHz) Internal I/O Port 1 x RS232 ports,1 x slim type FDD port, 1 x 8bit GPIO port, 1 x CDIN connector, 2 x USB ports, 1 x IrDA connector, 1 x 24bit LVDS and 1 x LCD inverter connector,1 x 4-pin 5V/12V output connector, Speaker out/Line-in/MIC-in , 1 x parallel port ,1 x TTL panel connector External I/O Port 2 x RJ45 LAN ports, 1 x CRT port and 1 x PS/2 Keyboard/Mouse Port 1 X D-sub com port ,1 X DC-min DIN >

Power Requirement DC 12V Input 1 X DC jack on I/O Panel,1 X onboard 4-Pin 12V DC connector Input Current 12V/0.7A 8.4W(board only) Dimension 146mm x 101mm (L X W) Temperature Operating within 0~60 centigrade Storage within -20~85 centigrade > Ordering Code LE-363-PEmbeddedAMD Geode GX533 Onboard VGA , Audio , 2 X LAN CF card , PCMICA card Bus ,TTL, LVDS , Mini PCI , GPIO LE-363-128EmbeddedAMD Geode GX533 Onboard 128MBDDR VGA , Audio , 2 X LAN , CF card , PCMICA card Bus ,TTL, LVDS , Mini PCI , GPIO > For further product information please visit the website at http://www.commell.com.tw TaiwanCommate...
