Fanless System

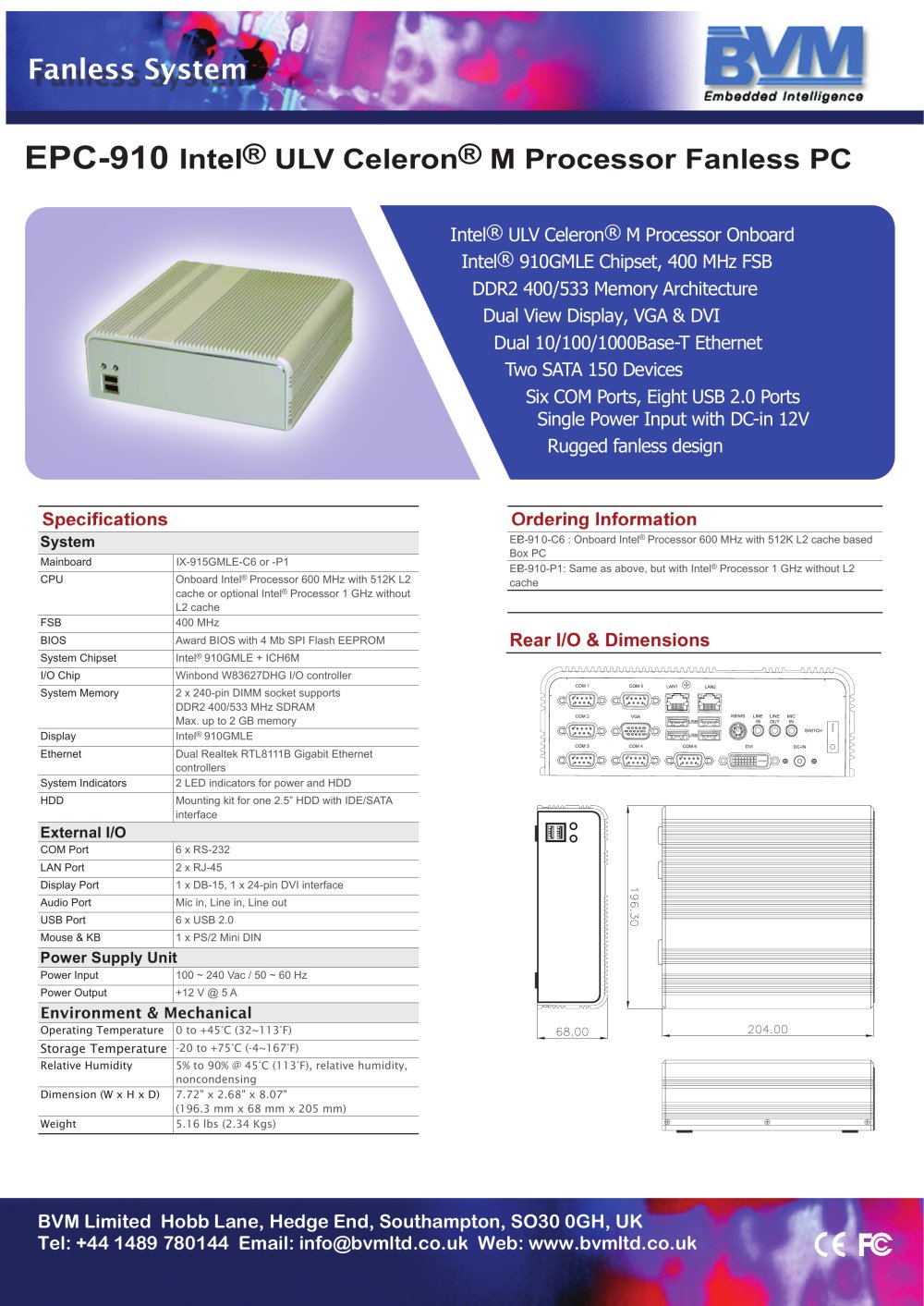

EPC-910 Intel® ULV Celeron® M Processor Fanless PCherif - 34165 EPC-910

Intel® ULV Celeron® M Processor Fanless PC

Intel® ULV Celeron® M Processor Onboard Intel® 910GMLE Chipset, 400 MHz FSB DDR2 400/533 Memory Architecture Dual View Display, VGA & DVI Dual 10/100/1000Base-T Ethernet Two SATA 150 Devices S Six COM Ports, Eight USB 2.0 Ports Single Power Input with DC-in 12V Rugged fanless design Ordering Information

System

EPC-910-C6 : Onboard Intel
® Processor 600 MHz with 512K L2 cache basedBox PCEPC-910-P1: Same as above, but with Intel Mainboard IX-915GMLE-C6 or -P1CPUOnboard Intel
® Processor 1 GHz without L2cache
® Processor 600 MHz with 512K L2cache or optional Intel
® Processor 1 GHz withoutL2 cacheFSB 400 MHzBIOS Award BIOS with 4 Mb SPI Flash EEPROMSystem Chipset Intel
®

Rear I/O & Dimensions

910GMLE + ICH6MI/O Chip Winbond W83627DHG I/O controllerSystem Memory 2 x 240-pin DIMM socket supportsDDR2 400/533 MHz SDRAM Max. up to 2 GB memoryDisplay Intel
® 910GMLEEthernet Dual Realtek RTL8111B Gigabit EthernetcontrollersSystem Indicators 2 LED indicators for power and HDDHDD Mounting kit for one 2.5” HDD with IDE/SATAinterface

External I/O

COM Port 6 x RS-232LAN Port 2 x RJ-45Display Port 1 x DB-15, 1 x 24-pin DVI interfaceAudio Port Mic in, Line in, Line outUSB Port 6 x USB 2.0Mouse & KB 1 x PS/2 Mini DIN

Power Supply Unit

Power Input 100 ~ 240 Vac / 50 ~ 60 HzPower Output +12 V @ 5 A

Environment & Mechanical

Operating Temperature 0 to +45°C (32~113°F)

Storage Temperature

-20 to +75°C (-4~167°F)Relative Humidity 5% to 90% @ 45°C (113°F), relative humidity,noncondensingDimension (W x H x D) 7.72" x 2.68" x 8.07"(196.3 mm x 68 mm x 205 mm)Weight 5.16 lbs (2.34 Kgs)

BVM Limited Hobb Lane, Hedge End, Southampton, SO30 0GH, UKTel: +44 1489 780144 Email: info@bvmltd.co.uk Web: www.bvmltd.co.uk
