POS System

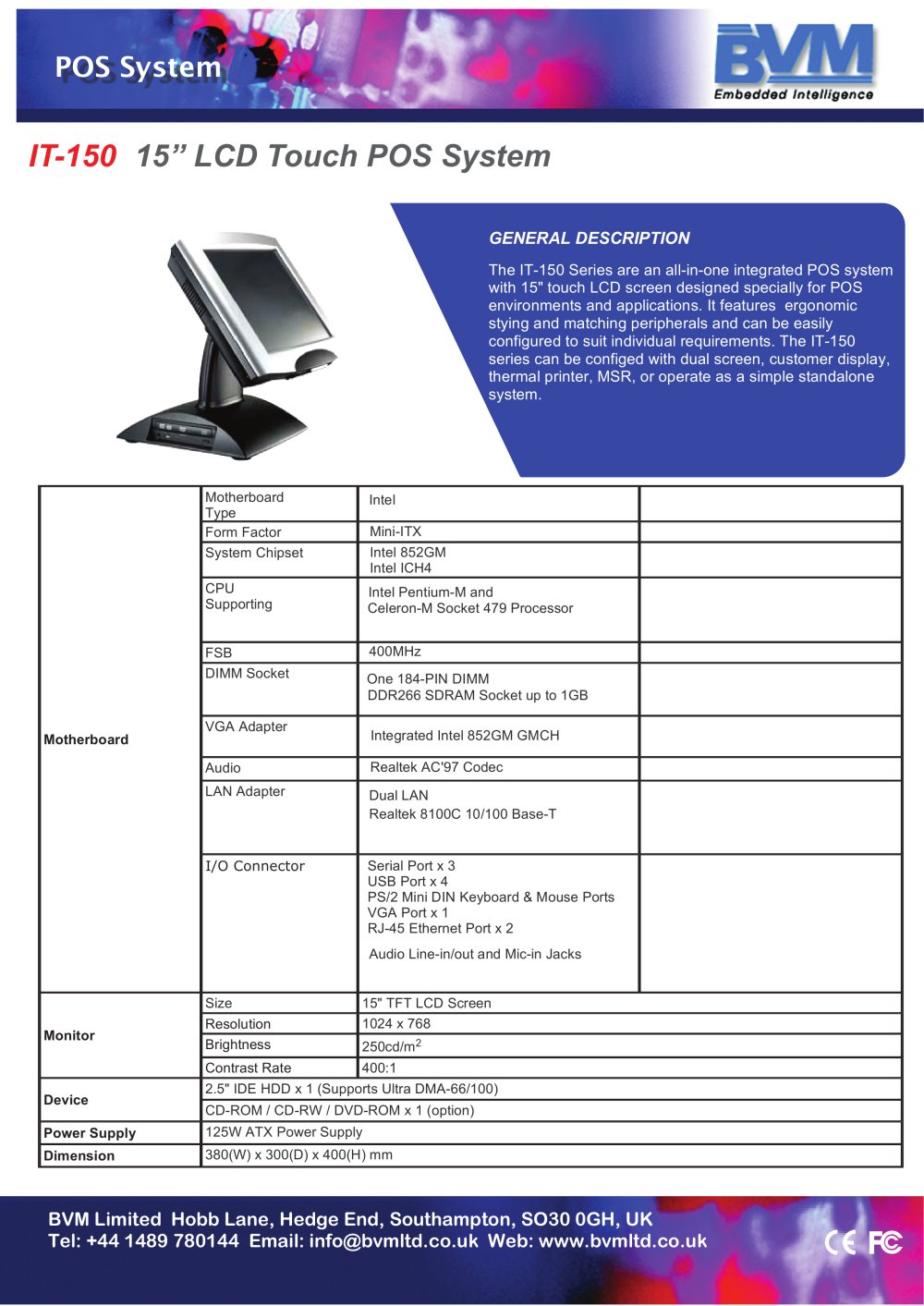

15” LCD Touch POS System - 34165 IT-15015” LCD Touch POS System

GENERAL DESCRIPTION

The IT-150 Series are an all-in-one integrated POS systemwith 15" touch LCD screen designed specially for POS environments and applications. It features ergonomic stying and matching peripherals and can be easily configured to suit individual requirements. The IT-150 series can be configed with dual screen, customer display, thermal printer, MSR, or operate as a simple standalone system.

MotherboardType Intel Form Factor Mini-ITX System Chipset Intel 852GMIntel ICH4 CPU Supporting Intel Pentium-M andCeleron-M Socket 479 Processor FSB 400MHz DIMM Socket One 184-PIN DIMMDDR266 SDRAM Socket up to 1GB VGA Adapter Motherboard Integrated Intel 852GM GMCH Audio Realtek AC'97 Codec LAN Adapter Dual LANRealtek 8100C 10/100 Base-T I/O Connector Serial Port x 3USB Port x 4PS/2 Mini DIN Keyboard & Mouse PortsVGA Port x 1RJ-45 Ethernet Port x 2Audio Line-in/out and Mic-in Jacks Size 15" TFT LCD Screen Resolution 1024 x 768 Monitor Brightness 250cd/m
2 Contrast Rate 400:1 2.5" IDE HDD x 1 (Supports Ultra DMA-66/100) Device CD-ROM / CD-RW / DVD-ROM x 1 (option) Power Supply 125W ATX Power Supply Dimension 380(W) x 300(D) x 400(H) mm

BVM Limited Hobb Lane, Hedge End, Southampton, SO30 0GH, UKTel: +44 1489 780144 Email: info@bvmltd.co.uk Web: www.bvmltd.co.uk
