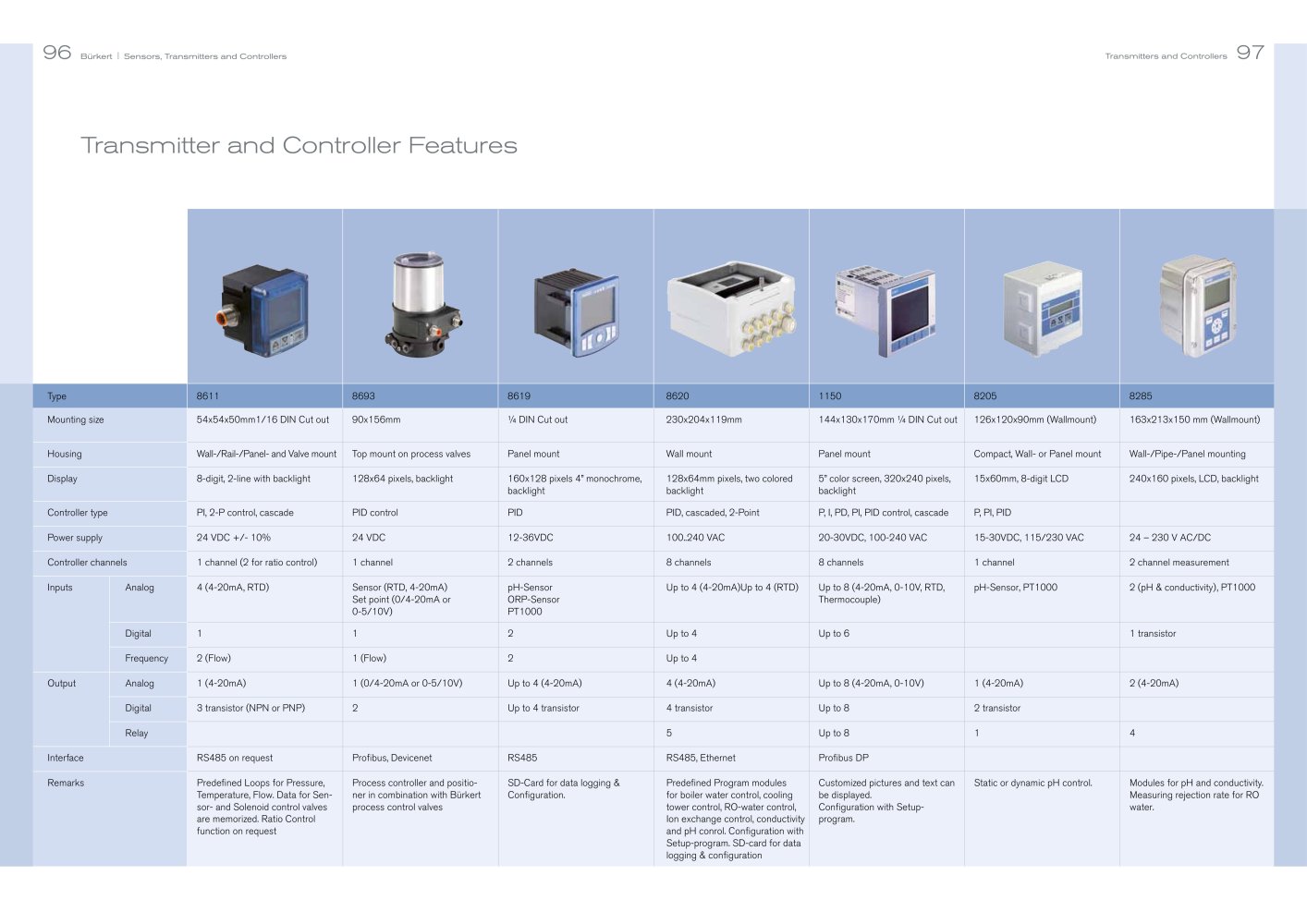

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } .font3 { font:20.00pt "Arial", sans-serif; } 96 Burkert | Sensors, Transmitters and Controlle Transmitter and Controller Features Type 8611 8693 8619 8620 8205 8285 Mounting size 54x54x50mm1/16 DIN Cut out 90x156mm V DIN Cut out 230x204x119mm 144x130x170mm V DIN Cut out 126x120x90mm (Wallmount) 163x213x150 mm (Wallmount) Housing Wall-/Rail-/Panel- and Valve mount Top mount on process valves Panel mount Wall mount Panel mount Compact, Wall- or Panel mount Wall-/Pipe-/Panel mounting Display 8-digit, 2-line with backlight 128x64 pixels, backlight 160x128 pixels 4" monochrome, backlight 128x64mm pixels, two colored backlight 5" color screen, 320x240 pixels, backlight 15x60mm, 8-digit LCD 240x160 pixels, LCD, backlight Controller type Power supply PI, 2-P control, cascade PID control PID PID, cascaded, 2-Point P, I, PD, PI, PID control, cascade P, PI, PID 24 VDC +/- 10% 24 VDC 12-36VDC 100..240 VAC 20-30VDC, 100-240 VAC 15-30VDC, 115/230 VAC 24 - 230 V AC/DC Controller channels 1 channel (2 for ratio control) 1 channel 2 channels 8 channels 8 channels 1 channel 2 channel measurement Inputs Analog 4 (4-20mA, RTD) Sensor (RTD, 4-20mA) Set point (0/4-20mA or 0-5/10V) pH-Sensor ORP-Sensor PT1000 Up to 4 (4-20mA)Up to 4 (RTD) Up to 8 (4-20mA, 0-10V, RTD, Thermocouple) pH-Sensor, PT1000 2 (pH & conductivity), PT1000 Digital 1 2 Up to 4 Up to 6 1 transistor Frequency 2 (Flow) 1 (Flow) 2 Up to 4 Output Analog 1 (4-20mA) 1 (0/4-20mA or 0-5/10V) Up to 4 (4-20mA) 4 (4-20mA) Up to 8 (4-20mA, 0-10V) 1 (4-20mA) 2 (4-20mA) Digital 3 transistor (NPN or PNP) 2 Up to 4 transistor 4 transistor Up to 8 2 transistor Relay 5 Up to 8 4 Interface RS485 on request Profibus, Devicenet RS485 RS485, Ethernet Profibus DP Remarks Predefined Loops for Pressure, Temperature, Flow. Data for Sen-sor- and Solenoid control valves are memorized. Ratio Control function on request Process controller and positio-ner in combination with Burkert process control valves SD-Card for data logging & Configuration. Predefined Program modules for boiler water control, cooling tower control, RO-water control, Ion exchange control, conductivity and pH conrol. Configuration with Setup-program. SD-card for data logging & configuration Customized pictures and text can be displayed. Configuration with Setup-program. Static or dynamic pH control. Modules for pH and conductivity. Measuring rejection rate for RO water.
