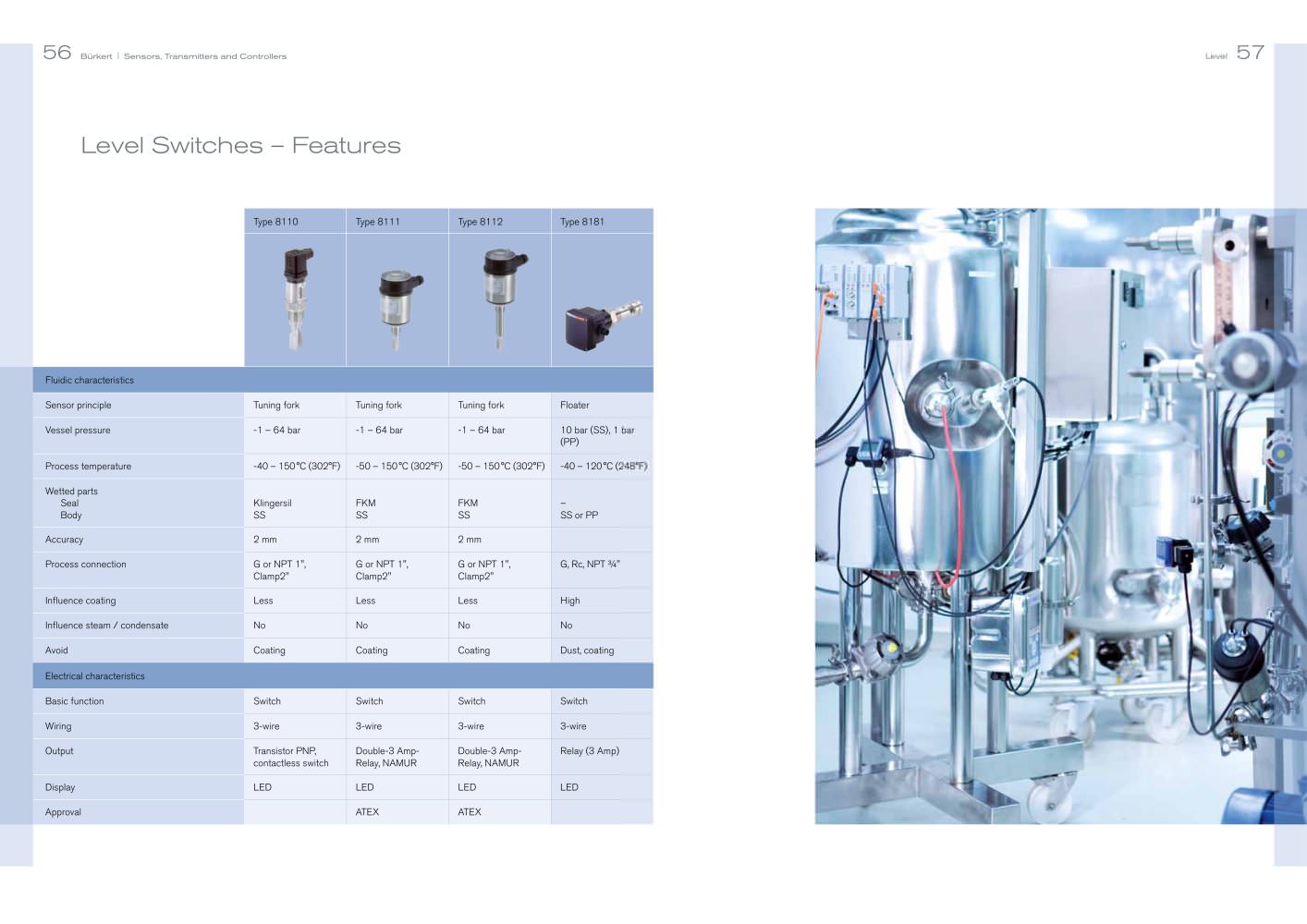

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:42.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:14.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:18.00pt "Franklin Gothic Medium", sans-serif; } .font4 { font:21.00pt "Franklin Gothic Medium", sans-serif; } .font5 { font:32.00pt "Franklin Gothic Medium", sans-serif; } .font6 { font:70.00pt "Franklin Gothic Medium", sans-serif; } .font7 { font:6.00pt "Trebuchet MS", sans-serif; } 56 Burkert | Sensors, Transmitters and Controlle 57 Level Switches - Features Type 8110 Type 8111 Type 8112 Type 8181 f ! --- 1! W Fluidic characteristics Sensor principle Tuning fork Tuning fork Tuning fork Floater Vessel pressure -1 - 64 bar -1 - 64 bar -1 - 64 bar 10 bar (SS), 1 bar (PP) Process temperature -40 - 150 °C (302°F) -50 - 150 °C (302°F) -50 - 150 °C (302°F) -40 - 120 °C (248°F) Wetted parts Seal Body Klingersil SS FKM SS FKM SS SS or PP Accuracy 2 mm 2 mm 2 mm Process connection G or NPT 1", Clamp2" G or NPT 1", Clamp2" G or NPT 1", Clamp2" G, Rc, NPT 3/4" Influence coating Less Less Less High Influence steam / condensate No No No No Avoid Coating Coating Coating Dust, coating Electrical characteristics Basic function Switch Switch Switch Switch Wiring 3-wire 3-wire 3-wire 3-wire Output Transistor PNP, contactless switch Double-3 Amp-Relay, NAMUR Double-3 Amp-Relay, NAMUR Relay (3 Amp) Display LED LED LED LED Approval ATEX ATEX
