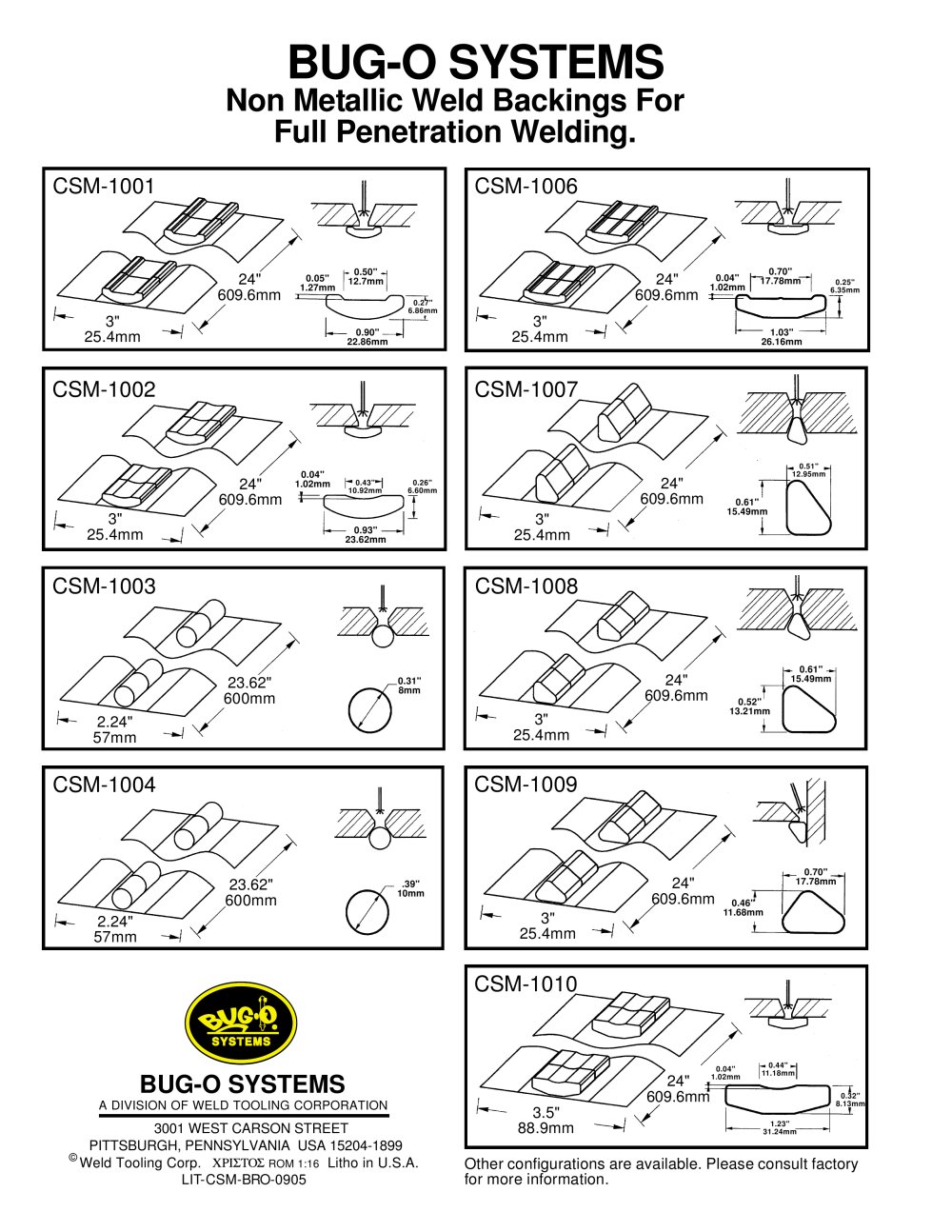

Non Metallic Weld Backings ForFull Penetration Welding.

Weld Backings - 11660 BUG-O SYSTEMS

CSM-1001 CSM-1006

24"609.6mm
0.05"1.27mm 0.50"12.7mm0.90"22.86mm 24"609.6mm
0.70"17.78mm0.04"1.02mm 0.25"6.35mm 0.27"6.86mm 3"25.4mm
1.03"26.16mm

CSM-1002 CSM-1007

0.51"12.95mm 24"609.6mm
0.04"1.02mm 0.43"10.92mm0.26"6.60mm 24"609.6mm
0.61"15.49mm 3"25.4mm
0.93"23.62mm 3"25.4mm

CSM-1003 CSM-1008

0.61"15.49mm0.52"13.21mm 23.62"600mm2.24"57mm
0.31"8mm 24"609.6mm3"25.4mm

CSM-1004 CSM-1009

23.62"600mm2.24"57mm
.39"10mm 24"609.6mm
0.46"11.68mm0.70"17.78mm 3"25.4mm

CSM-1010

0.04"1.02mm 0.44"11.18mm0.32"8.13mm1.23"31.24mm 24"609.6mm
A DIVISION OF WELD TOOLING CORPORATION

BUG-O SYSTEMS

3.5"88.9mm
3001 WEST CARSON STREET PITTSBURGH, PENNSYLVANIA USA 15204-1899 © Weld Tooling Corp. ROM 1:16 Litho in U.S.A.LIT-CSM-BRO-0905 Other configurations are available. Please consult factoryfor more information. 3"25.4mm
