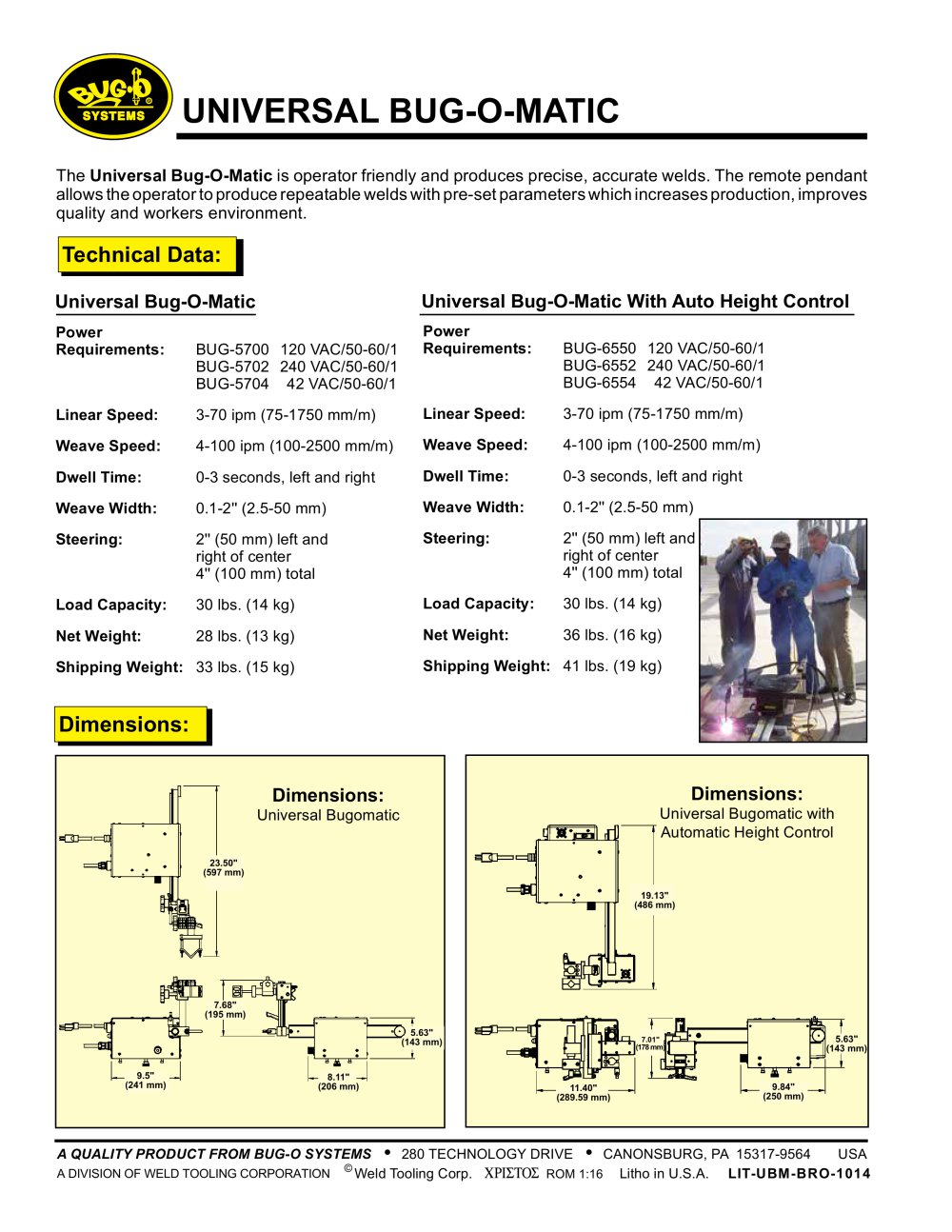

UNIVERSAL BUG-O-MATIC
The Universal Bug-O-Matic is operator friendly and produces precise accurate welds. The remote pendant
allows the operator to produce repeatable welds with pre-set parameters which increases production, improves
quality and workers environment.
Dimensions:
7.2" Universal Bugomatic
184 mm
5.5"
143 mm
9.5"
241 mm
Dimensions:
Universal Bugomatic with
Automatic Height Control
9.5"
289.59 mm
19.16"
486.64mm
9.85"
250 mm
7"
178 mm
19.14"
486 mm
5.62"
143 mm
A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA
A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-UBM-BRO-0809
Dimensions:
Power
Requirements: BUG-5700 120 VAC/50-60/1
BUG-5702 240 VAC/50-60/1
BUG-5704 42 VAC/50-60/1
Linear Speed: 3-70 ipm (75-1750 mm/m)
Weave Speed: 4-100 ipm (100-2500 mm/m)
Dwell Time: 0-3 seconds, left and right
Weave Width: 0.1-2'' (2.5-50 mm)
Steering: 2'' (50 mm) left and
right of center
4'' (100 mm) total
Load Capacity: 30 lbs. (14 kg)
Net Weight: 28 lbs. (13 kg)
Shipping Weight: 33 lbs. (15 kg)
Technical Data:
Power
Requirements: BUG-5950 120 VAC/50-60/1
BUG-5952 240 VAC/50-60/1
BUG-5954 42 VAC/50-60/1
Linear Speed: 3-70 ipm (75-1750 mm/m)
Weave Speed: 4-100 ipm (100-2500 mm/m)
Dwell Time: 0-3 seconds, left and right
Weave Width: 0.1-2'' (2.5-50 mm)
Steering: 2'' (50 mm) left and
right of center
4'' (100 mm) total
Load Capacity: 30 lbs. (14 kg)
Net Weight: 36 lbs. (16 kg)
Shipping Weight: 41 lbs. (19 kg)
Universal Bug-O-Matic Universal Bug-O-Matic With Auto Height Control
