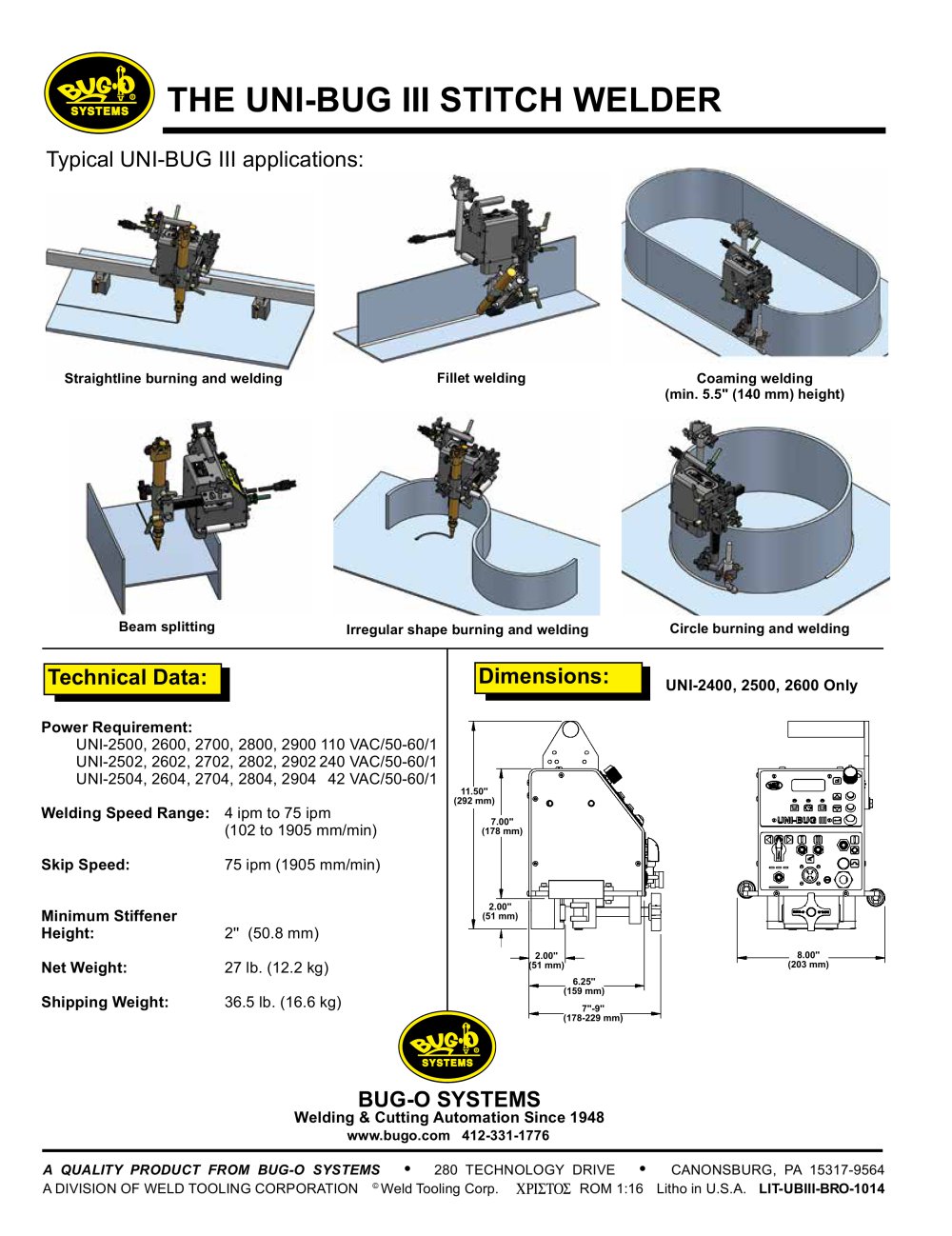

THE UNI-BUG III STITCH WELDER

UNI-2900, 2902, 2904 The UNI-2900 UNI-BUG III Dual Torch Angle Welding Kit is supplied with the mounts for two welding torches and provides components to independently adjust either torch in the vertical and horizontal plane. The unit features programmable control for stitch or continuous welding and is designed for straight line welding of angles. The unit will mount and run on top of angles with a minimum height of 4" (102mm) and widths up to 4" (102mm). The unit will travel at speeds from 4 to 75 inches per minute (102-1905mm/min).

Technical Data: Dimensions:

Power Requirement: UNI-2500, 2600, 2700, 2800, 2900 110 VAC/50-60/1 UNI-2502, 2602, 2702, 2802, 2902 240 VAC/50-60/1 UNI-2504, 2604, 2704, 2804, 2904 42 VAC/50-60/1 Welding Speed Range: 4 ipm to 75 ipm (102 to 1905 mm/min)
7.00''(178 mm)11.50''(292 mm) Skip Speed: 75 ipm (1905 mm/min) 2'' (50.8 mm) Minimum Stiffener Height:
2.00''(51 mm) Net Weight: 27 lb. (12.2 kg)
2.00''(51 mm) 8.00''(203 mm) Shipping Weight: 36.5 lb. (16.6 kg)
6.25''(159 mm) 7''-9''(178-229 mm)

Produce uniform high quality welds with the:

Welding & Cutting Automation Since 1948.

BUG-O SYSTEMS

Uni-bug III - 11660 PROGRAMMABLE UNI-BUG III STITCH WELDER

www.bugo.com 1-412-331-1776 A QUALITY PRODUCT FROM BUG-O SYSTEMS

•

280 TECHNOLOGY DRIVE

•

CANONSBURG, PA 15317-9564A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-UBIII-BRO-0608
