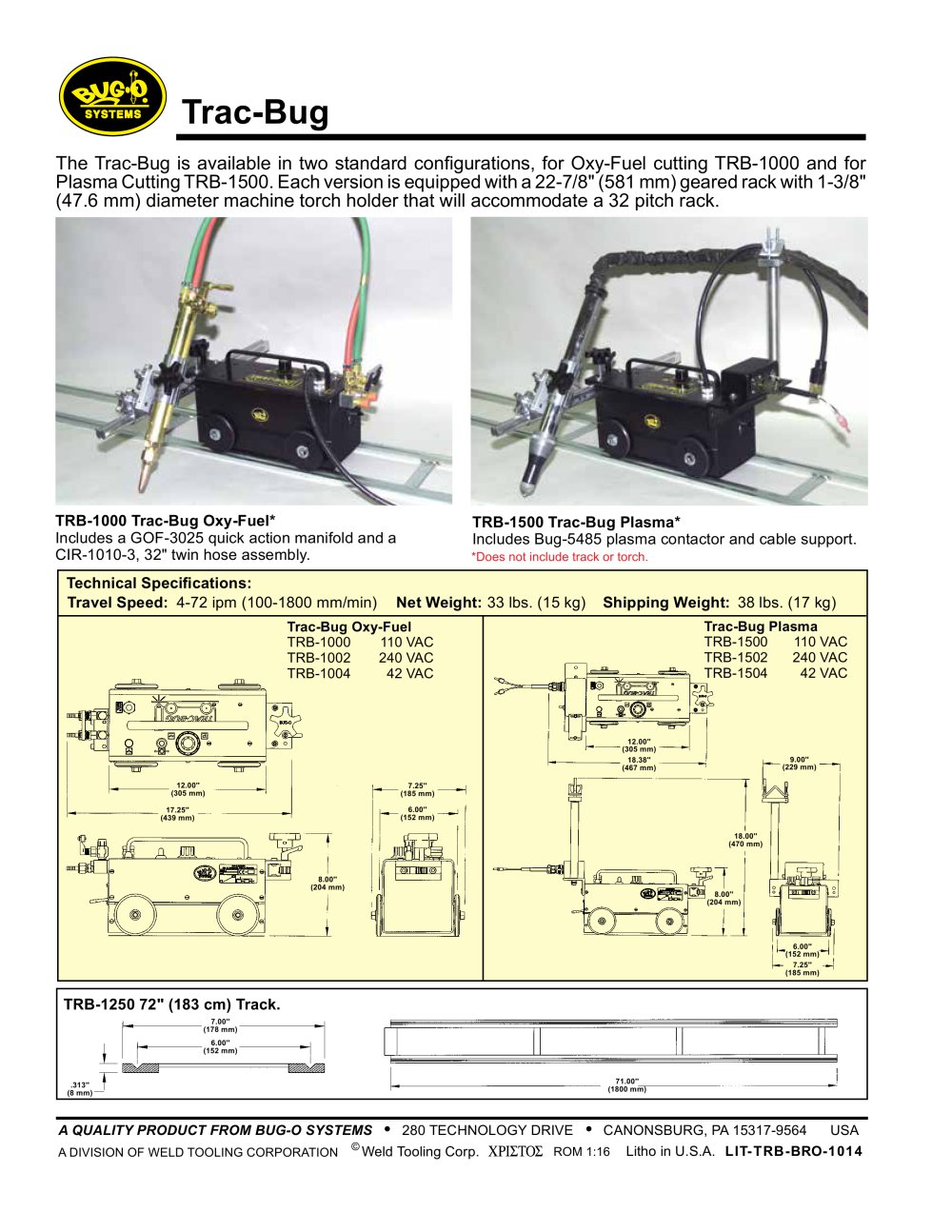

Trac-Bug
The Trac-Bug is available in two standard configurations, for Oxy-Fuel cutting TRB-1000 and for
Plasma Cutting TRB-1500. Each version is equipped with a 22-7/8" (581 mm) geared rack with 1-3/8"
(47.6 mm) diameter machine torch holder that will accommodate a 32 pitch rack.
TRB-1000 Trac-Bug Oxy-Fuel*
Includes a GOF-3025 quick action manifold and a
CIR-1010-3, 32" twin hose assembly.
TRB-1500 Trac-Bug Plasma*
Includes Bug-5485 plasma contactor and cable support.
Technical Specifications:
Travel Speed: 4-72 ipm (100-1800 mm/min) Net Weight: 33 lbs. (15 kg) Shipping Weight: 38 lbs. (17 kg)
Trac-Bug Oxy-Fuel
TRB-1000 110 VAC
TRB-1002 240 VAC
TRB-1004 42 VAC
.313''
(8 mm)
7.00''
(178 mm)
6.00''
(152 mm)
72.00''
(1828 mm)
Trac-Bug Plasma
TRB-1500 110 VAC
TRB-1502 240 VAC
TRB-1504 42 VAC
*Does not include track or torch.
7.25''
(185 mm)
6.00''
(152 mm)
18.00''
(470 mm)
18.38''
(467 mm)
12.00''
(305 mm)
9.00''
(229 mm)
7.25''
(185 mm)
6.00''
(152 mm)
8.00''
(204 mm)
17.25''
(439 mm)
12.00''
(305 mm)
TRB-1250 72" (183 cm) Track.
A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA
A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-TRB-BRO-0908
