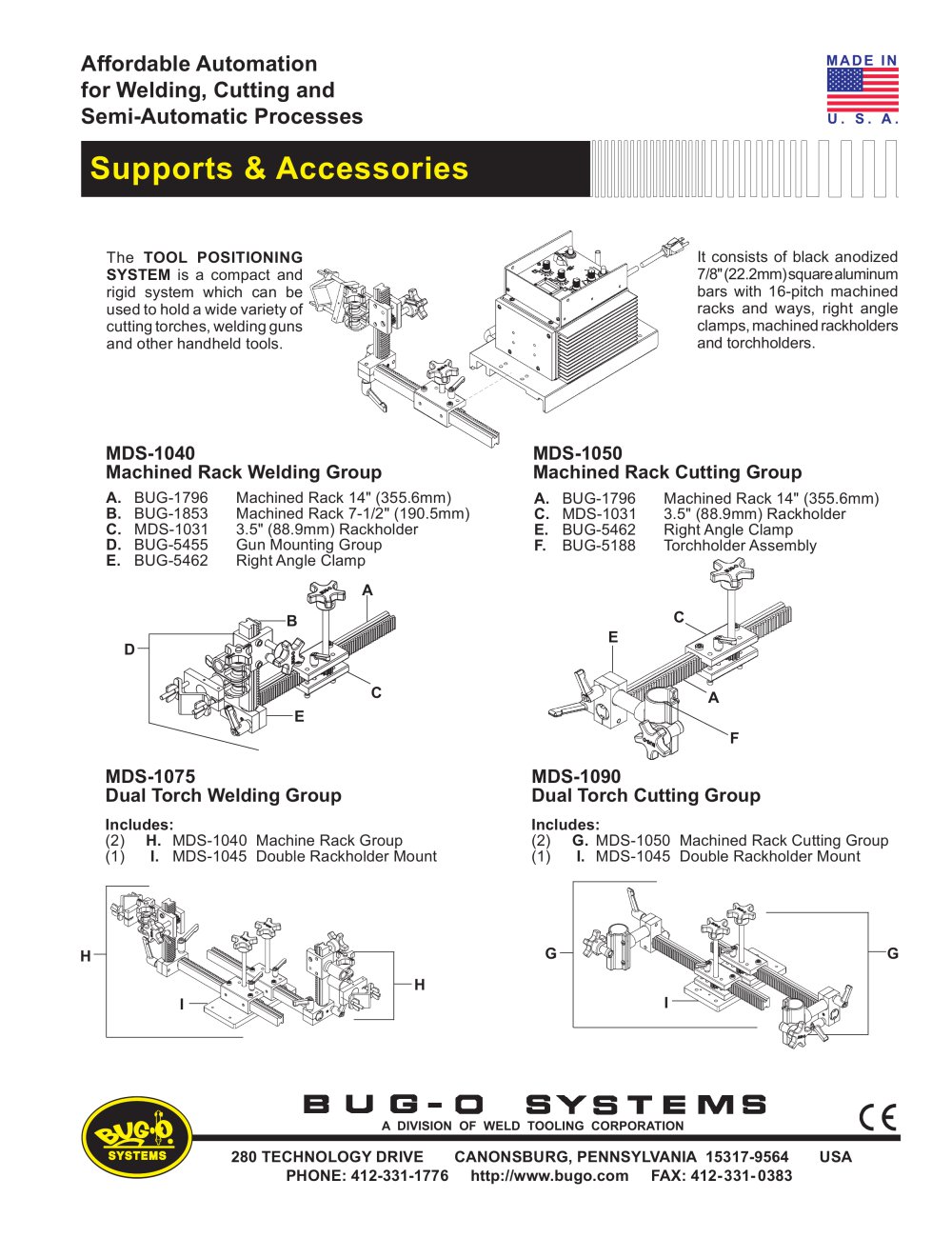

Affordable Automation for Welding, Cutting and Semi-Automatic Processes

Supports & Accessories

It consists of black anodized 7/8" (22.2mm) square aluminum bars with 16-pitch machined racks and ways, right angle clamps, machined rackholders and torchholders.

The TOOL POSITIONING SYSTEM is a compact and rigid system which can be used to hold a wide variety of cutting torches, welding guns and other handheld tools.

MDS-1040 Machined Rack Welding Group

MDS-1050 Machined Rack Cutting Group

A. BUG-1796

B. BUG-1853

C. MDS-1031

D. BUG-5455

E. BUG-5462

Machined Rack 14" (355.6mm) Machined Rack 7-1/2" (190.5mm) 3.5" (88.9mm) Rackholder Gun Mounting Group Right Angle Clamp

A. BUG-1796

C. MDS-1031

E. BUG-5462

F. BUG-5188

Machined Rack 14" (355.6mm) 3.5" (88.9mm) Rackholder Right Angle Clamp Torchholder Assembly

MDS-1075

Dual Torch Welding Group

Includes:

(2) H. MDS-1040 Machine Rack Group (1) I. MDS-1045 Double Rackholder Mount

MDS-1090

Dual Torch Cutting Group Includes:

(2) G. MDS-1050 Machined Rack Cutting Group (1) I. MDS-1045 Double Rackholder Mount

C3 - O SYS T E IVI

A DIVISION OF WELD TOOLING CORPORATION

280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA USA 15317-9564 PHONE: 1-800-245-3186 http://www.bugo.com FAX: 1-412-331-0383
