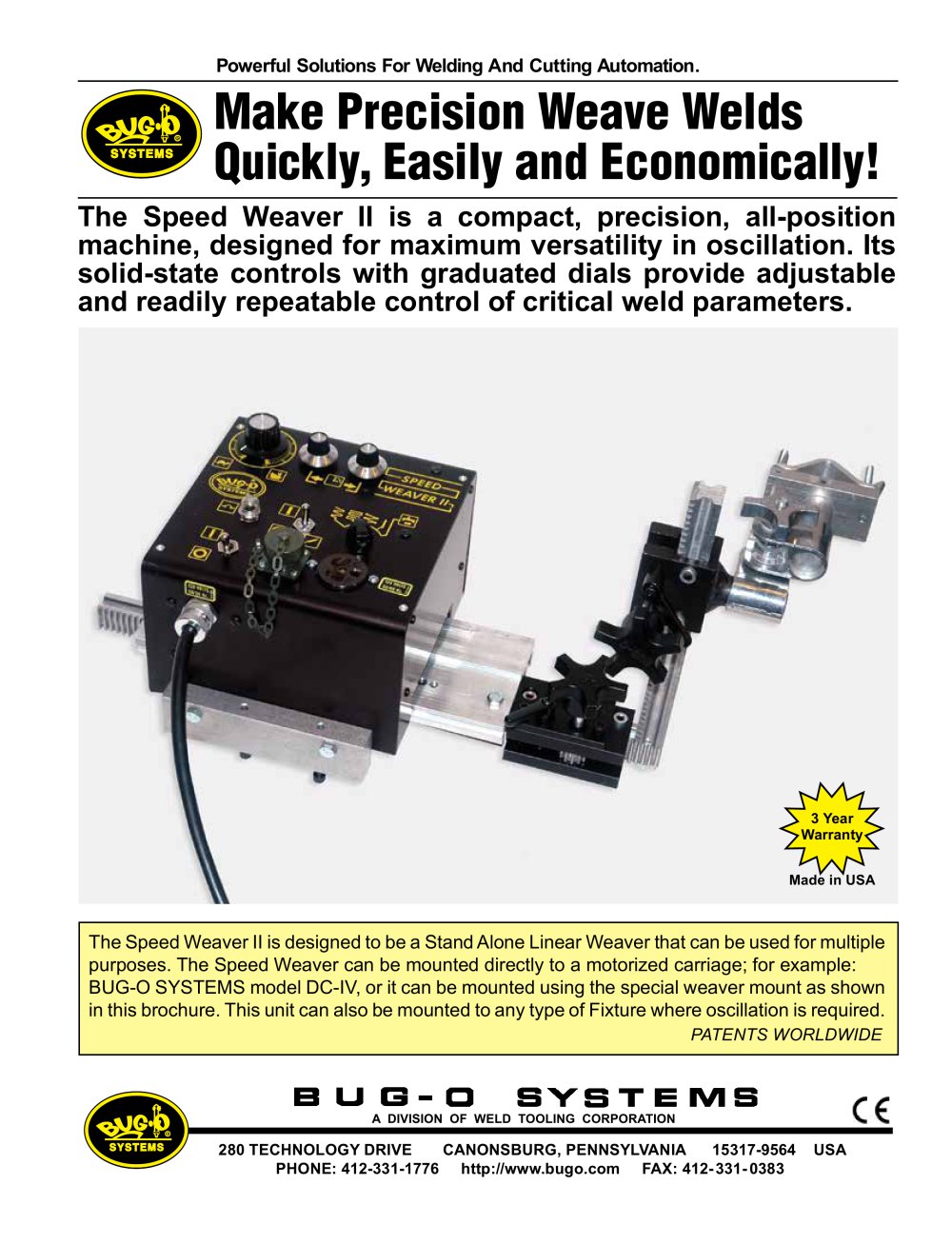

Powerful Solutions For Welding And Cutting Automation. Make Precision Weave Welds Quickly, Easily and Economically! The Speed Weaver II is a compact, precision, all-position machine, designed for maximum versatility in oscillation. Its solid-state controls with graduated dials provide adjustable and readily repeatable control of critical weld parameters. BUG-O DC-IV 1.5-30 ipm (38-750 mm/min) SPEED WEAVER II Weaver Swivel Mount Cable Mounting Assembly H.D. Rigid Rail 93-1/2" (2.37 m) H.D. Rigid Rail 46-1/2" (1.18 m) Magnet Bar, Swivel w/Release BUG-1917 DC SPEED WEAVING KIT (240/50-60/1) BUG-1918 DC SPEED WEAVING KIT (42/50-60/1) 3 Year Warranty Made in USA The Speed Weaver II is designed to be a Stand Alone Linear Weaver that can be used for multiple purposes. The Speed Weaver can be mounted directly to a motorized carriage; for example: BUG-O SYSTEMS model DC-IV, or it can be mounted using the special weaver mount as shown in this brochure. This unit can also be mounted to any type of Fixture where oscillation is required. PATENTS WORLDWIDE Net Weight of Kit: 91 lbs. (41.5 kg) Shipping Weight of Kit: 101 lbs. (46 kg) A DIVISION OF WELD TOOLING CORPORATION A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA ROM 1:16 Litho in U.S.A. LIT- SPWV-BRO-1014 A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 PHONE: 412-331-1776 http://www.bugo.com FAX: 412- 331- 0383

 Open the catalogue to page 1

SPEED WEAVER II The SPEED WEAVER II with solid-state design eliminates relays and limit switches. Integrated circuits control all functions and the SPEED WEAVER II extends the usefulness of weave welding by ensuring accurate control of amplitude and constant speed, up to 150 ipm (3800 mm/min). Technical Data: Weld Patterns: A rotary mode selector switch allows you to choose the following patterns: 0 to 3 Seconds Each Side; Independent Maximum; (Zero Dwell Left and Right) Net Weight: 23 lbs. (10.5 kg) (Not including rail and torch mounting.) Shipping Weight: Stroke Width Adjustable Rack Circuit...

 Open the catalogue to page 2

SPEED WEAVER II The SPEED WEAVER II with solid-state design eliminates relays and limit switches. Integrated circuits control all functions and the SPEED WEAVER II extends the usefulness of weave welding by ensuring accurate control of amplitude and constant speed, up to 150 ipm (3800 mm/min). Technical Data: Weld Patterns: A rotary mode selector switch allows you to choose the following patterns: 0 to 3 Seconds Each Side; Independent Maximum; (Zero Dwell Left and Right) Net Weight: 23 lbs. (10.5 kg) (Not including rail and torch mounting.) Shipping Weight: Stroke Width Adjustable Rack Circuit...

 Open the catalogue to page 3

Powerful Solutions For Welding And Cutting Automation. Make Precision Weave Welds Quickly, Easily and Economically! The Speed Weaver II is a compact, precision, all-position machine, designed for maximum versatility in oscillation. Its solid-state controls with graduated dials provide adjustable and readily repeatable control of critical weld parameters. BUG-O DC-IV 1.5-30 ipm (38-750 mm/min) SPEED WEAVER II Weaver Swivel Mount Cable Mounting Assembly H.D. Rigid Rail 93-1/2" (2.37 m) H.D. Rigid Rail 46-1/2" (1.18 m) Magnet Bar, Swivel w/Release BUG-1917 DC SPEED WEAVING KIT (240/50-60/1) BUG-1918...
