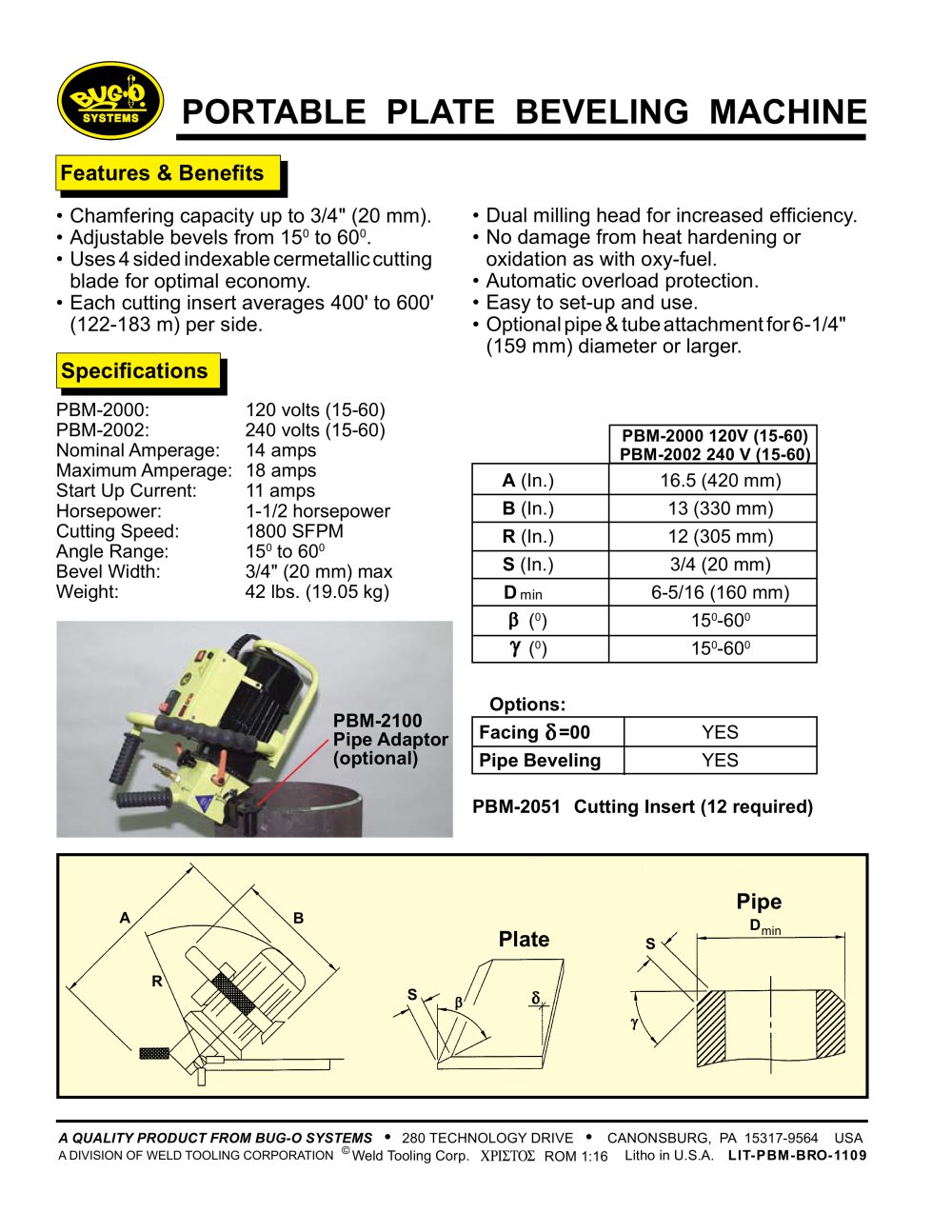

PORTABLE PLATE BEVELING MACHINE

Features & Benefits

•Chamfering capacity up to 3/4" (20 mm).Adjustable bevels from 15 Dual milling head for increased efficiency.No damage from heat hardening oroxidation as with oxy-fuel.Automatic overload protection. Easy to set-up and use.Optional pipe & tube attachment for 6-1/4"(159 mm) diameter or larger.

to 60 .Uses 4 sided indexable cermetallic cuttingblade for optimal economy.Each cutting insert averages 400' to 600'(122-183 m) per side.

Specifications

Power Supply:120 volts Nominal Amperage:14 ampsMaximum Amperage:18 ampsStart Up Current:11 amps Horsepower:1-1/2 horsepowerCutting Speed:1800 SFPMAngle Range:15
PBM-2000 (15-60) standard A (In.)16.5 (420 mm) B (In.)13 (330 mm)
to 60
R (In.)12 (305 mm) Bevel Width:3/4" (20 mm) maxWeight:42 lbs. (19.05 kg) S (In.)3/4 (20 mm) D min6-5/16 (160 mm)O (
min )15
-60
O (
)15
-60
PBM-2100Pipe Adaptor (optional) Options:Facing O=00 YES Pipe Beveling YES PBM-2051Cutting Insert (12 required)
ARBSS

PlatePipe

D min A QUALITY PRODUCT FROM BUG-O SYSTEMS © •
280 TECHNOLOGY DRIVE
CANONSBURG, PA USA 15317-9564Litho in U.S.A. A DIVISION OF WELD TOOLING CORPORATION Weld Tooling Corp.ROM 1:16 LIT-PBM-BRO-0408
