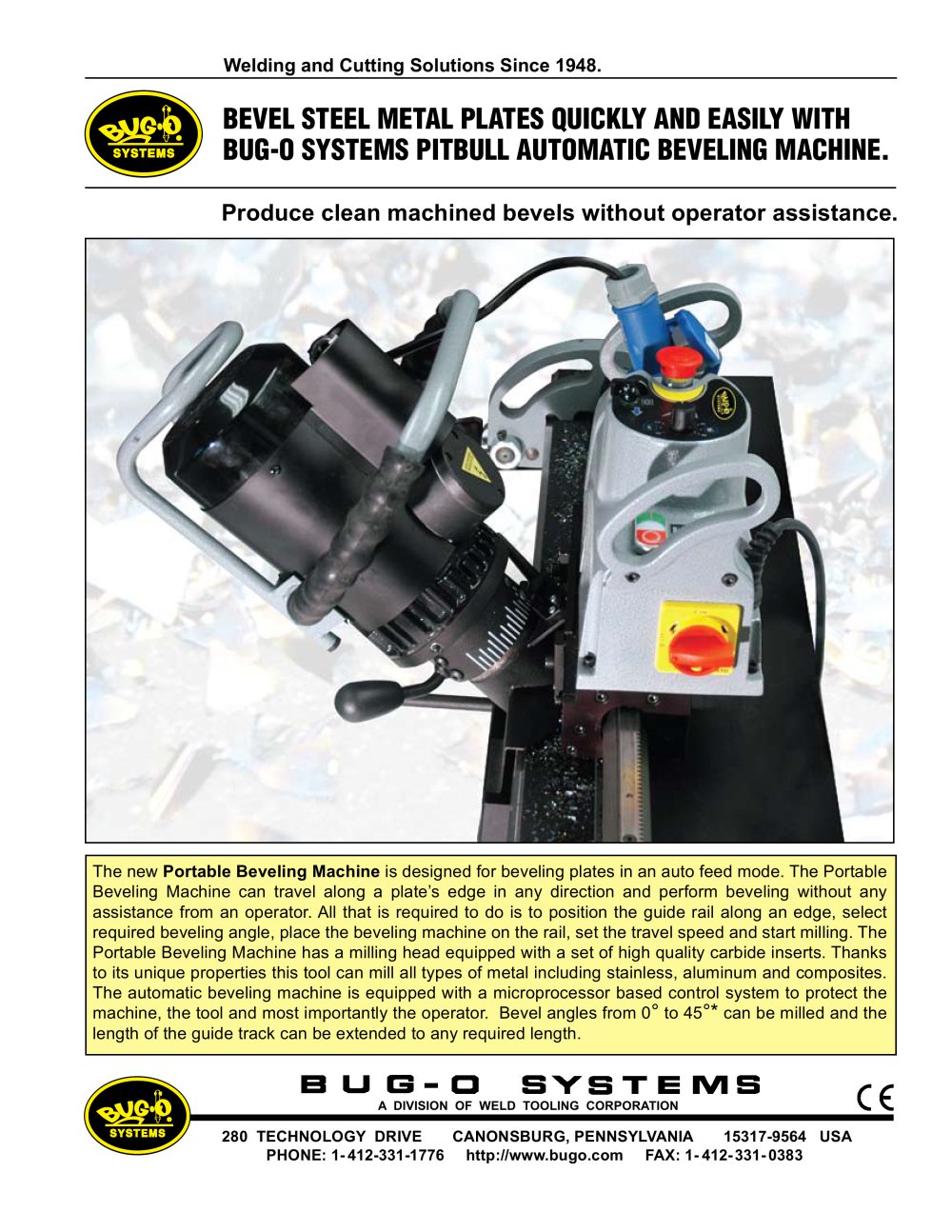

Welding and Cutting Solutions Since 1948. BEVEL STEEL METAL PLATES QUICKLY AND EASILY WITH BUG-O SYSTEMS PITBULL AUTOMATIC BEVELING MACHINE. Produce clean machined bevels without operator assistance. The new Portable Beveling Machine is designed for beveling plates in an auto feed mode. The Portable Beveling Machine can travel along a plate’s edge in any direction and perform beveling without any assistance from an operator. All that is required to do is to position the guide rail along an edge, select required beveling angle, place the beveling machine on the rail, set the travel speed and start milling. The Portable Beveling Machine has a milling head equipped with a set of high quality carbide inserts. Thanks to its unique properties this tool can mill all types of metal including stainless, aluminum and composites. The automatic beveling machine is equipped with a microprocessor based control system to protect the machine, the tool and most importantly the operator. Bevel angles from 0° to 45°* can be milled and the length of the guide track can be extended to any required length. A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 USA PHONE: 1- 412-331-1776 http://www.bugo.com FAX: 1- 412- 331- 0383

Open the catalog to page 1

PITBULL PORTABLE AUTOMATIC BEVELER Max. bevel width depending on the angle 00 300 450 600 Technical Data: Order Number: Power Supply: Motor Power: Bevelling width: Angle Range: Length of the guide track in standard equipment: Feed System: Length x Width x Height: Weight: * - up to 750 on customer's request ** - without guide track *** - with 2-section guide track and positioners / 3 pcs / Equipment Included with Beveler (Part Number SPB-3000): • 2 Rail 47.24'' (1200 mm) • Spare Set of Cutting Inserts. • Automatic Beveler • Rail Positioners • Angle Attachment: 00, 22.50, 37.50, 450 Optional...
