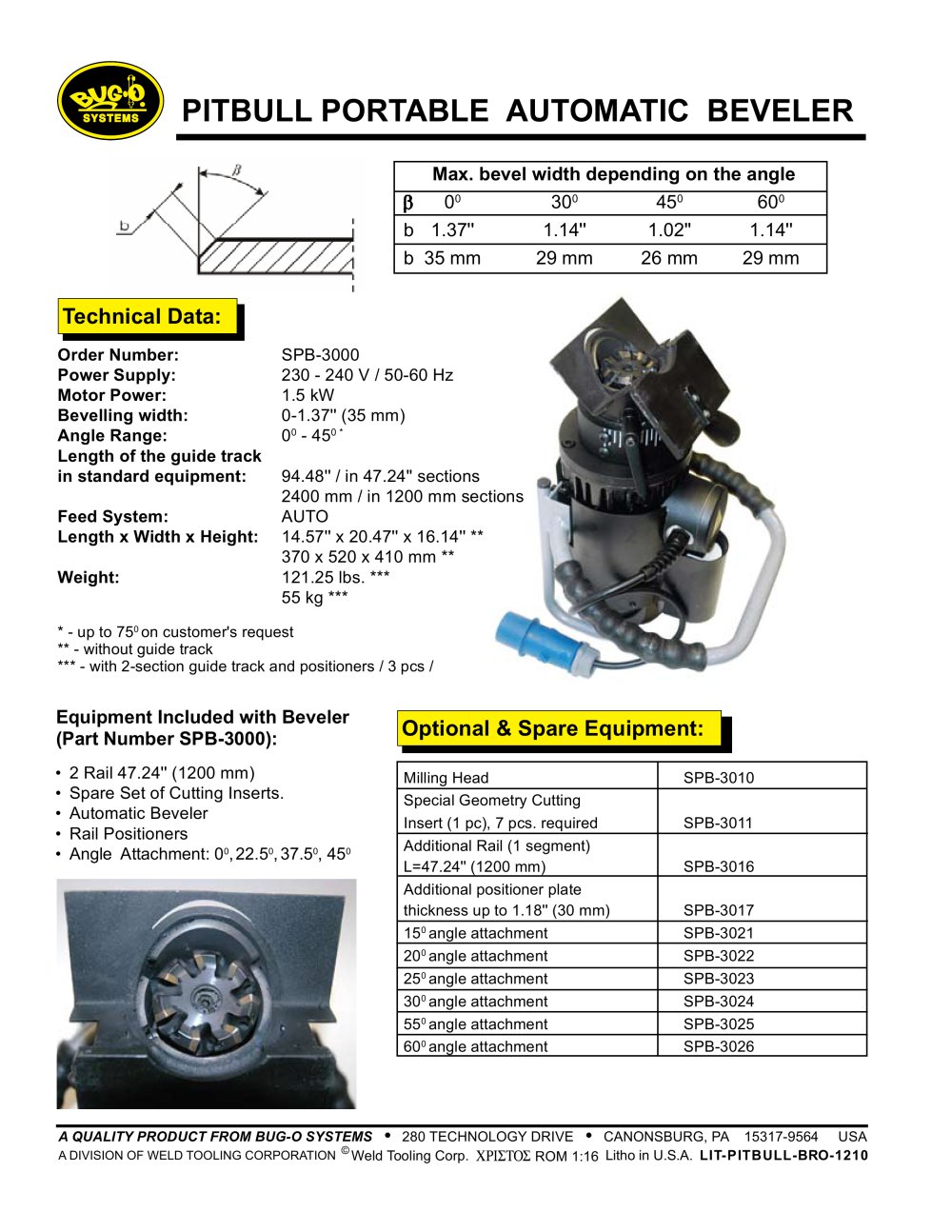

PITBULL PORTABLE AUTOMATIC BEVELER

Max. bevel width depending on the angle

30 45 60 b 1.37'' 1.14'' 1.02'' 1.14''b 35 mm 29 mm 26 mm 29 mm

Technical Data:

Order Number: SPB-3000 Power Supply: 230 - 240 V / 50-60 Hz Motor Power: 1.5 kW Bevelling width: 0-1.37'' (35 mm) Angle Range:
- 60
0 * Length of the guide track in standard equipment: Feed System: AUTO 94.48'' / in 47.24'' sections 2400 mm / in 1200 mm sections Length x Width x Height: Weight: 121.25 lbs. *** 55 kg *** 14.57'' x 20.47'' x 16.14'' ** 370 x 520 x 410 mm **
* - up to 75 on customer's request** - without guide track *** - with 2-section guide track and positioners / 3 pcs /

Equipment Included with Beveler (Part Number SPB-3000):

Optional & Spare Equipment:

• 2 Rail 47.24'' (1200 mm)• Spare Set of Cutting Inserts. • Automatic Beveler • Rail Positioners • Angle Attachment: 0
Milling Head SPB-3010Special Geometry Cutting Insert (1 pc), 7 pcs. required SPB-3011 Additional Rail (1 segment) L=47.24'' (1200 mm) SPB-3016Additional positioner plate thickness up to 1.18'' (30 mm) SPB-3017Additional 0 , 15
, 30
, 45


angle attachment SPB-3020Additional 15 angle attachment SPB-3021Additional 20 angle attachment SPB-3022Additional 25 angle attachment SPB-3023Additional 30 angle attachment SPB-3024Additional 45 angle attachment SPB-3019Additional 55 angle attachment SPB-3025Additional 60 angle attachment SPB-3026 A QUALITY PRODUCT FROM BUG-O SYSTEMS ©

•
