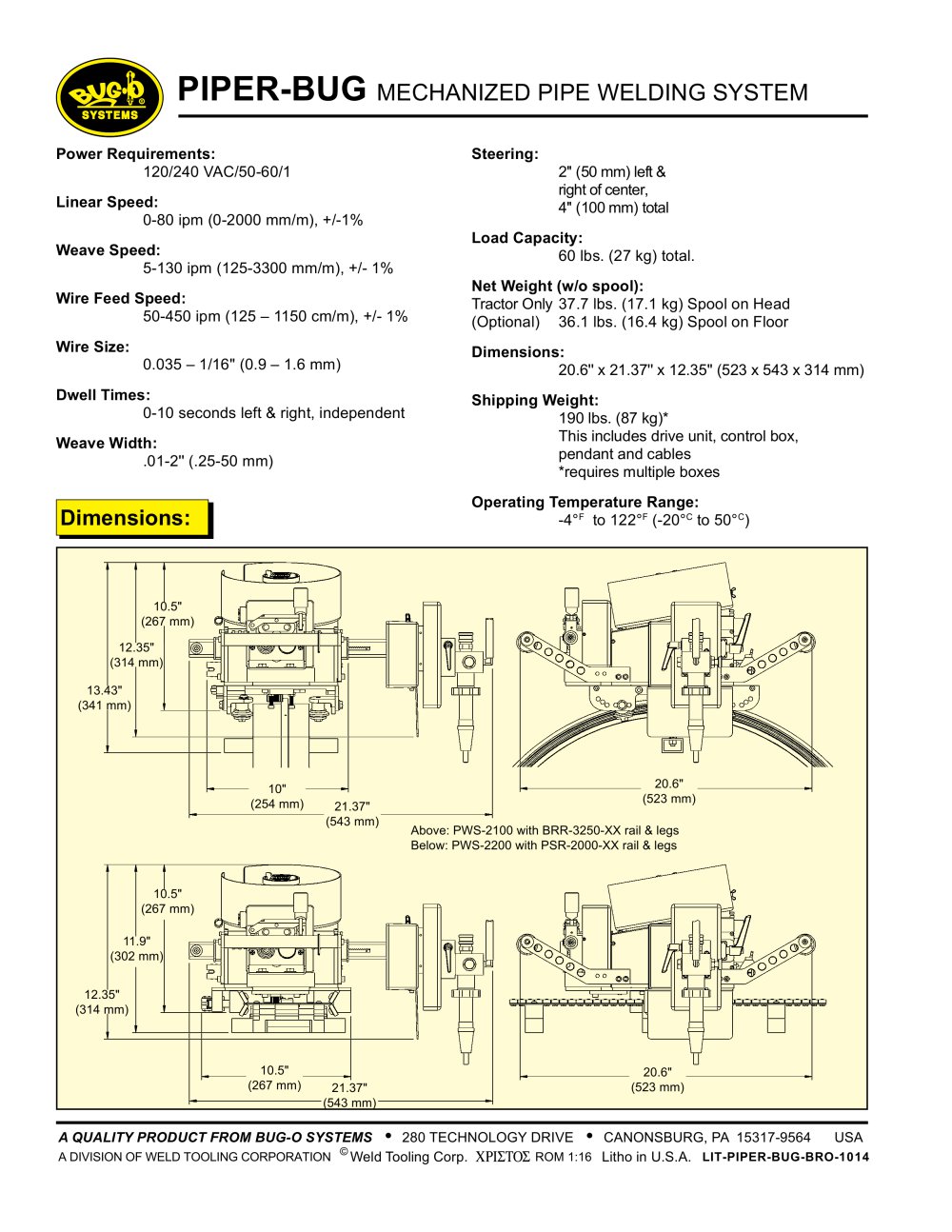

A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA
A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-PIPER-BUG-BRO-0909
Power Requirements:
120/240 VAC/50-60/1
Linear Speed:
0-2000 mm/m (0-80 ipm), +/-1%
Weave Speed:
125-3300 mm/m (5-130 ipm), +/- 1%
Wire Feed Speed:
125 – 1150 cm/m (50-450 ipm), +/- 1%
Wire Size:
0.9 – 1.6 mm (0.035 – 1/16'')
Dwell Times:
0-10 seconds left & right, independent
Weave Width:
.25-50 mm (.01-2'')
Steering:
50 mm (2'') left &
right of center,
100 mm (4'') total
Dimensions:
Mechanized Pipe Welding System
543mm
(21.37'')
523mm
(20.6'')
314mm
(12.35'')
267mm
(10.5'')
254mm
(10'')
Load Capacity:
27 Kg (60 lbs.) total.
Net Weight (w/o spool):
17.1 Kg (37.7 lbs.) Feeder on Head
(Optional) 12.9 Kg (28.4 lbs.) Feeder on Floor
Dimensions:
523 x 543 x 314 mm (20.6'' x 21.37'' x 12.35'')
Operating Temperature Range:
-20° C to 50° C (-4° F to 122° F)
