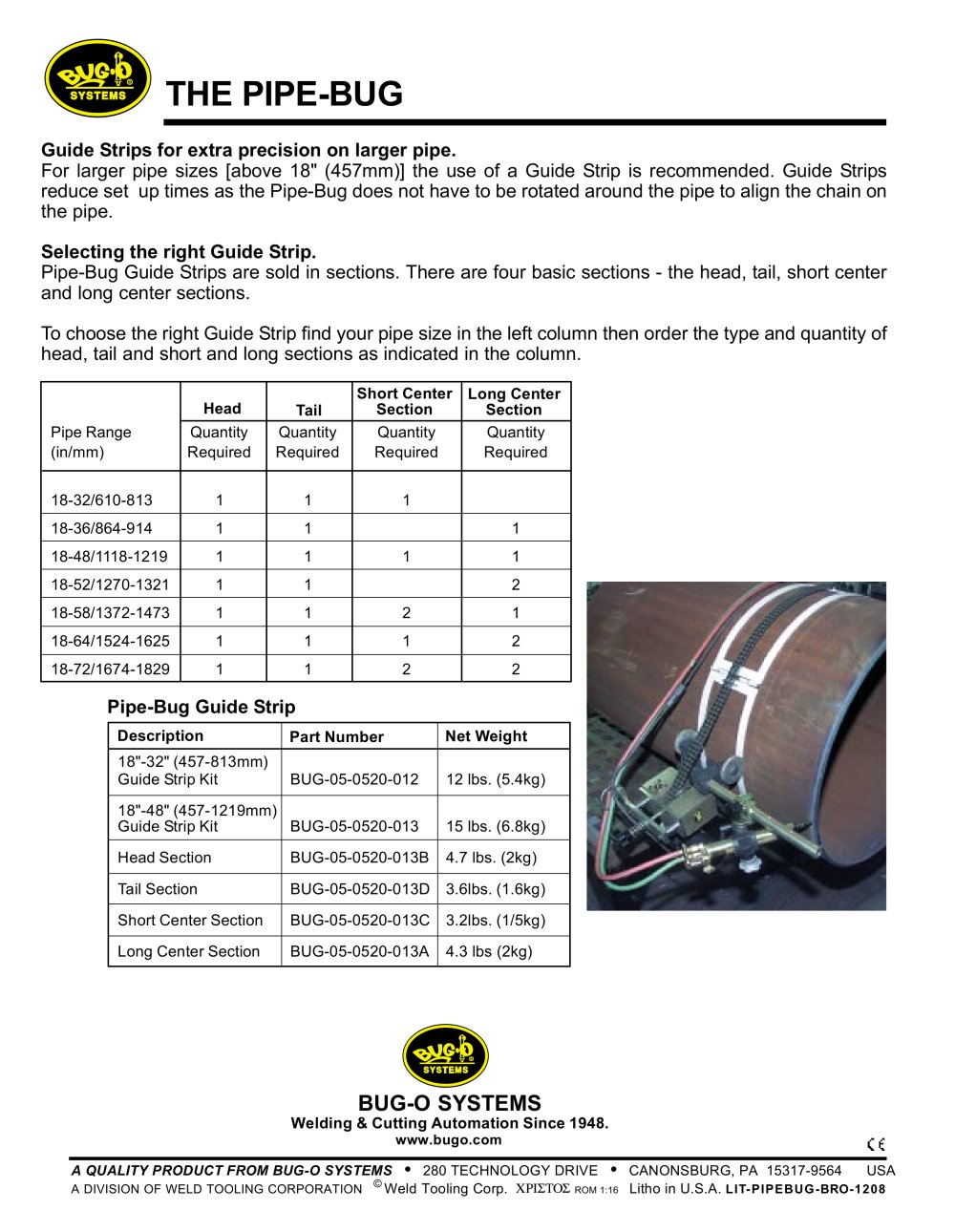

THE PIPE-BUG

Guide Strips for extra precision on larger pipe.

For larger pipe sizes [above 18" (457mm)] the use of a Guide Strip is recommended. Guide Strips reduce set up times as the Pipe-Bug does not have to be rotated around the pipe to align the chain on the pipe.

Selecting the right Guide Strip.

Pipe-Bug Guide Strips are sold in sections. There are four basic sections - the head, tail, short center and long center sections.

To choose the right Guide Strip find your pipe size in the left column then order the type and quantity of head, tail and short and long sections as indicated in the column.


	Head	Tail	Short Center Section	Long Center Section
Pipe Range (in/mm)	Quantity Required	Quantity Required	Quantity Required	Quantity Required

18-32/610-813			1
18-36/864-914				1
18-48/1118-1219			1	1
18-52/1270-1321				2
18-58/1372-1473			2	1
18-64/1524-1625			1	2
18-72/1674-1829			2	2

Pipe-Bug Guide Strip


Description	Part Number	Net Weight
18"-32" (457-813mm) Guide Strip Kit	05-0520-012	12 lbs. (5.4kg)
18"-48" (457-1219mm) Guide Strip Kit	05-0520-013	15 lbs. (6.8kg)
Head Section	05-0520-013B	4.7 lbs. (2kg)
Tail Section	05-0520-013D	3.6lbs. (1.6kg)
Short Center Section	05-0520-013C	3.2lbs. (1/5kg)
Long Center Section	05-0520-013A	4.3 lbs (2kg)
