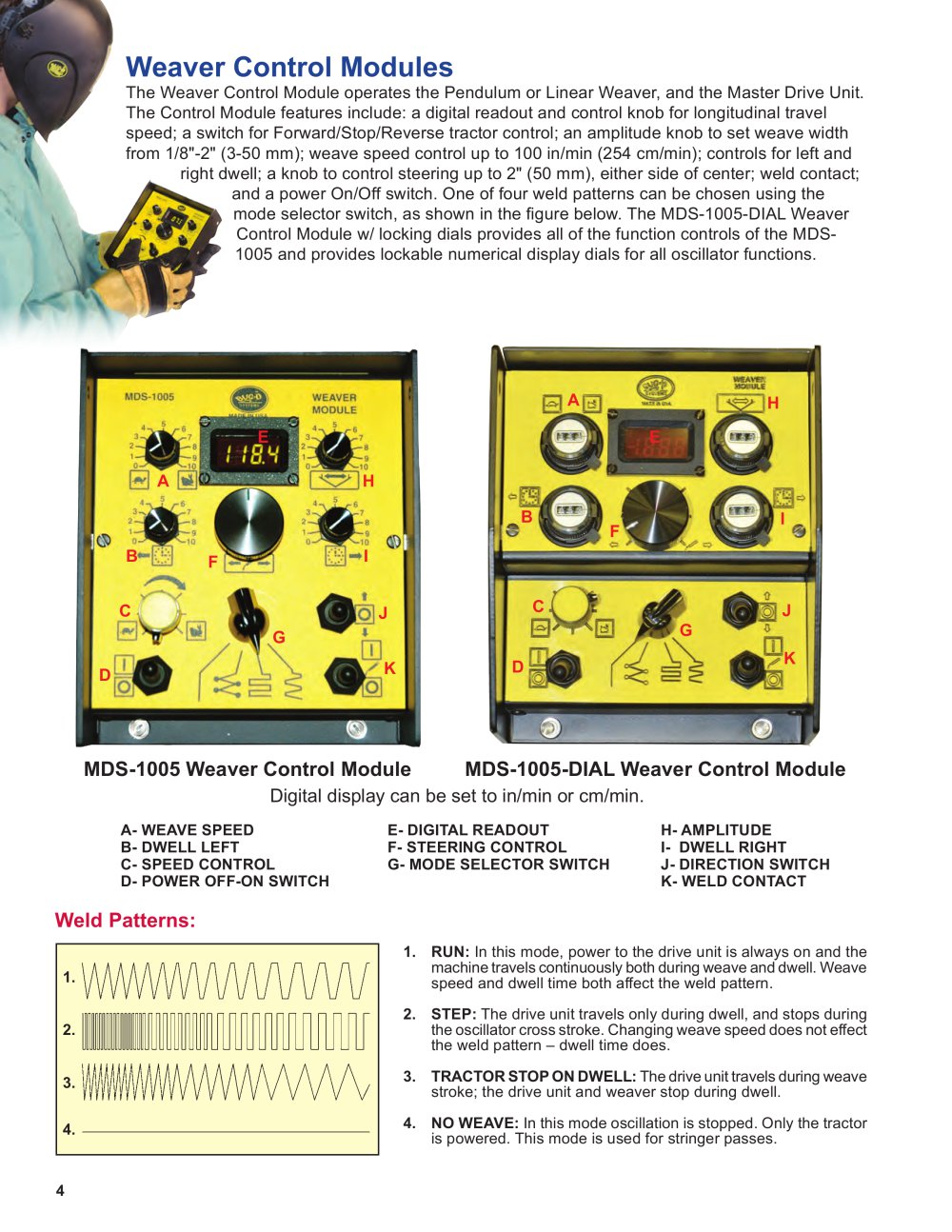

MDS-1005 Weaver Control Module

Modular Drive System - 11660 Control Modules

adds a pendulum weaving motion to the Modular Drive System. The Pendulum Weaver is particularly useful for weaving fillet welds in a corner joint. A Control Module plugs onto the top of the Master Drive Unit and operates various machine functions. Three Control Modules are available; for straight-line cutting and/or welding, programmable stitch welding and one for weave welding capability.

Control Modules

MDS-1004 PROGRAM-MABLE MODULE provides stitch controls for welding or cut- ting with the Modular Drive System. All stitching parameters are set and displayed on a graphic screen. This allows each setting to be set exactly the same every time.The The MDS-1002 Straight Control Module provides direction and speed control for continuous cutting or welding.The
MDS-1005 Weaver Control Module *MDS-1004 Programmable Stitch Module *MDS-1004: Program Stitch by distance, automatic stop and/or return to start at the end of the cycle, independent timers for puddle-buildup.

Master Drive Unit

At the heart of the Modular Drive System is the Master Drive Unit which houses the motor, speed control board, power supply, and clutch, that allows rapid manual positioning of the carriage anywhere along the track. The unit runs from 2-120 in/min (51-3048 mm/min) with a vertical load capacity of 60 lbs (27 kg) and a horizontal load capacity of 100 lbs (45 kg). Order reference: MPD-1000 120 VAC/50-60 Hz MPD-1002 240 VAC/50-60 Hz MPD-1004 42 VAC/50-60 Hz
MPD-1000 Master Drive Unit MDS-1002 Straight Module 4
