Bug-6140 PC Option SpeedControlStart/ RunManual JogY Axis Reset Manual JogX Axis Stop/Pause

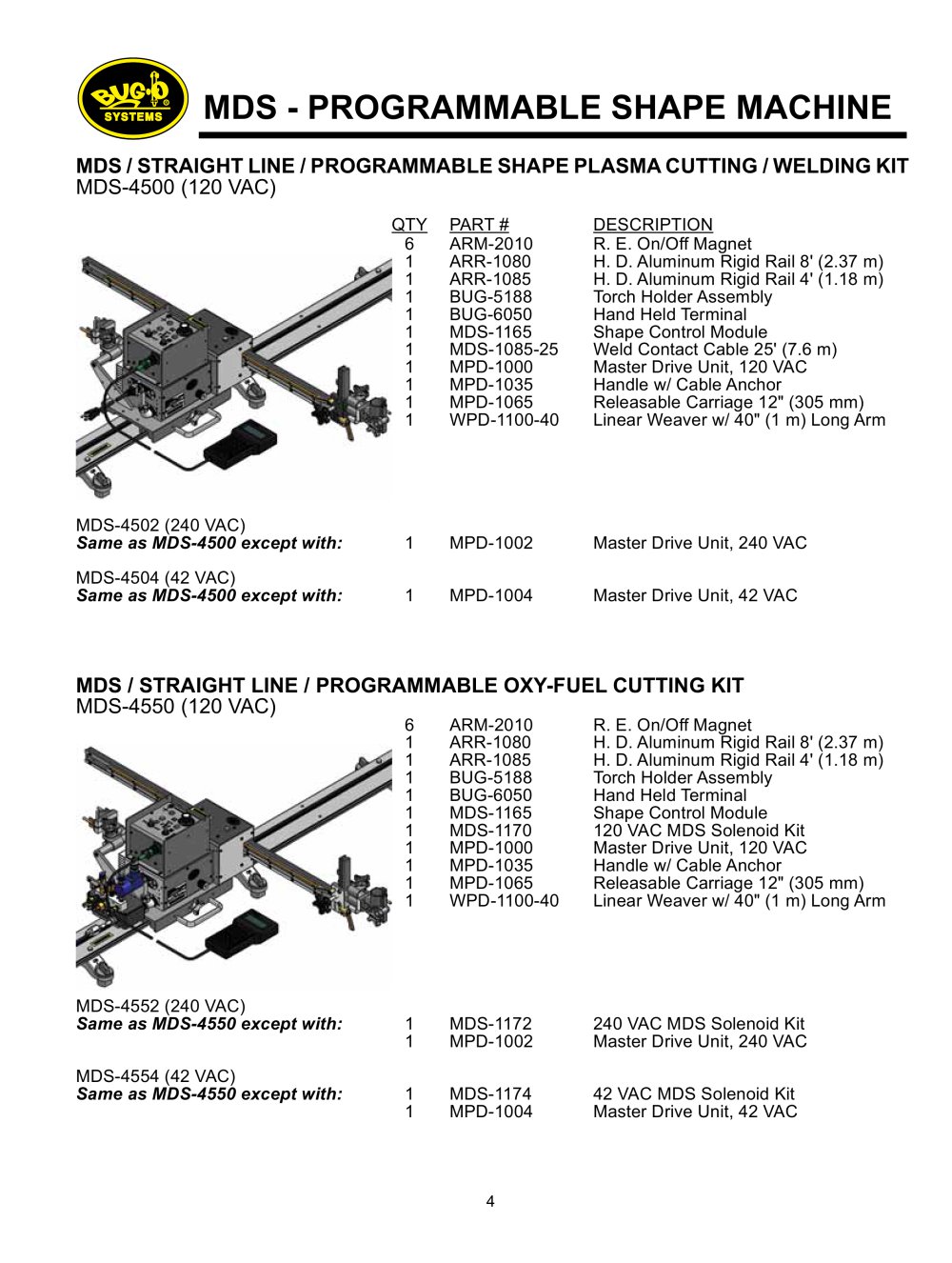

MDS Programmable Shape Machine - 11660 MDS - PROGRAMMABLE SHAPE MACHINE

Operation:

The machine is in the reference start position,when first plugged in.There are 3 options (the handheld terminal is notneeded for the first two): 1.MOVE: To change the home position, push theSTOP/PAUSE button, move the machine manually to the required position using the joy stick, and push the reset button. 2.RUN: Push the START/RUN button to cut/weld a shape. 3.PROGRAM: The programming operationrequires the use of the handheld terminal.

Technical Data:

This Windows based software package providesComputer-Aided Programming for Shape Machines and other BUG-O programmable machines. The software will run on any PC with the Windows Operating System. A cable is provided to interface the BUG-O to the PC's serial port. (A USB to RS-232 serial adaptor can be used if a serial port is not available).The program enables easy creation and editing ofa shape while viewing it on screen. When a shape is loaded into the program the segment list is shown on the left, and the shape diagram on the right. Selecting (mouse-click) a segment in the list highlights the corresponding segment in the diagram. Buttons are provided to select Add, Edit, Insert or Delete a segment.A print function lets you print out the Segment Listand/or Shape Diagram.Any number of shapes can be saved and stored ondisk. Saved shapes can be loaded from disk into memory slots corresponding to the 20 shape numbers in the BUG-O machine.The software is distributed as a single SETUP file,which when run will install the program on your PC.
Travel Speed: 5-100 ipm (127-2540 mm/min) Cross Travel: 24" (610 mm) Max. SegmentDimension: 72" (1800 mm)Within Limits of Travel Min. IncrementDimension: .01" (0.1 mm) Delay Increment: .01 seconds A QUALITY PRODUCT FROM BUG-O SYSTEMS © ?
3001 WEST CARSON STREET ?
PITTSBURGH, PA USA 15204-1899Litho in U.S.A. A DIVISION OF WELD TOOLING CORPORATION Weld Tooling Corp. ROM 1:16 LIT-MDSPSM-BRO-1008
