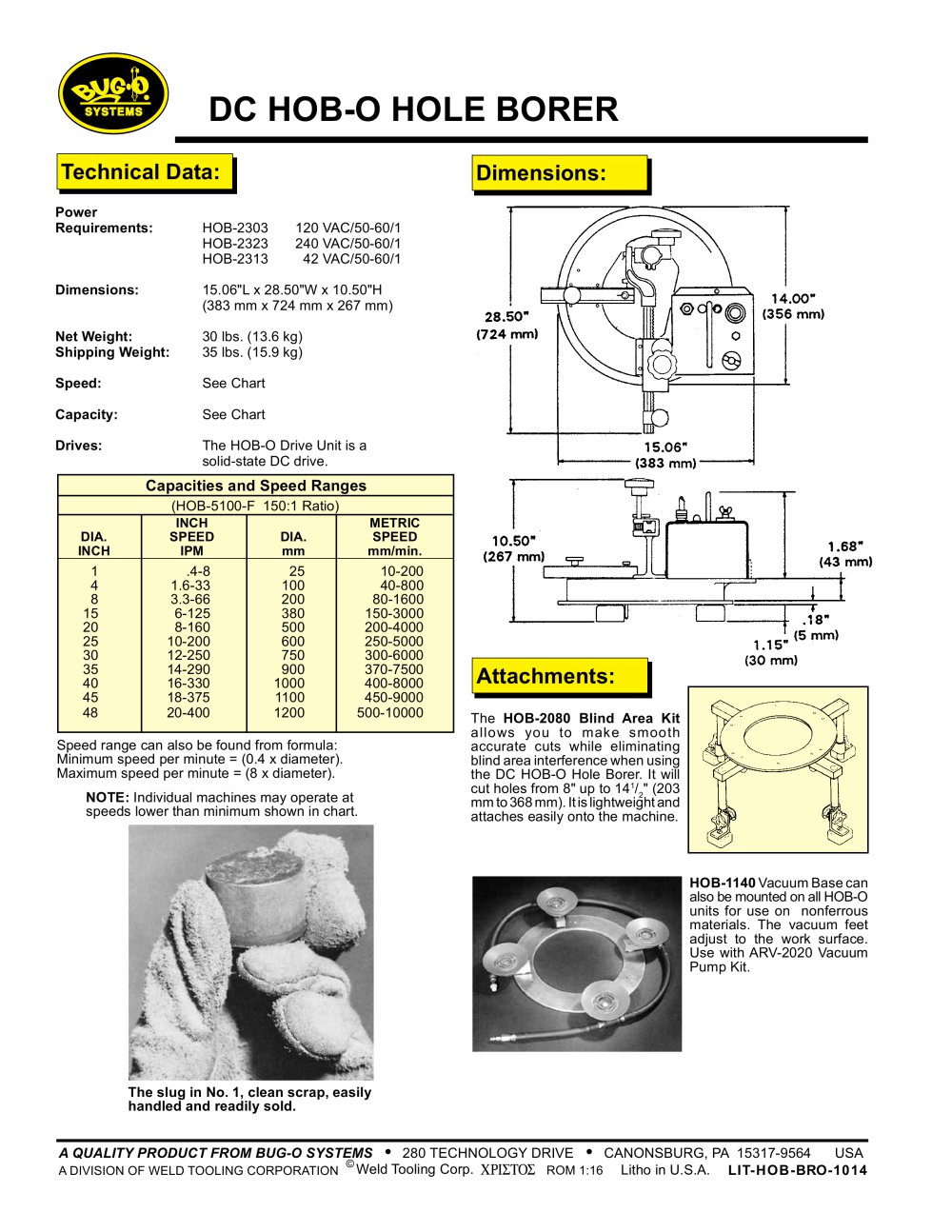

DC HOB-O HOLE BORER Power Requirements: HOB-2303 120 VAC/50-60/1 HOB-2323 240 VAC/50-60/1 HOB-2313 42 VAC/50-60/1 Dimensions: 15.06"L x 28.50"W x 10.50"H (383 mm x 724 mm x 267 mm) Net Weight: 30 lbs. (13.6 kg) Shipping Weight: 35 lbs. (15.9 kg) Speed: See Chart Capacity: See Chart Drives: The HOB-O Drive Unit is a solid-state DC drive. Technical Data: Dimensions: Attachments: Capacities and Speed Ranges (HOB-5100-F 150:1 Ratio) 1 .4-8 25 10-200 4 1.6-33 100 40-800 8 3.3-66 200 80-1600 15 6-125 380 150-3000 20 8-160 500 200-4000 25 10-200 600 250-5000 30 12-250 750 300-6000 35 14-290 900 370-7500 40 16-330 1000 400-8000 45 18-375 1100 450-9000 48 20-400 1200 500-10000 Speed range can also be found from formula: Minimum speed per minute = (0.4 x diameter). Maximum speed per minute = (8 x diameter). The slug is No. 1, clean scrap, easily handled and readily sold. NOTE: Individual machines may operate at speeds lower than minimum shown in chart. HOB-1140 Vacuum Base can also be mounted on all HOB-O units for use on nonferrous materials. The vacuum feet adjust to the work surface. Use with ARV-1020 Vacuum Pump Kit. INCH METRIC DIA. SPEED DIA. SPEED INCH IPM mm mm/min. The HOB-2080 Blind Area Kit allows you to make smooth accurate cuts while eliminating blind area interference when using the DC HOB-O Hole Borer. It will cut holes from 8" up to 141/2" (203 mm to 368 mm). It is lightweight and attaches easily onto the machine. A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-HOB-BRO-0309
