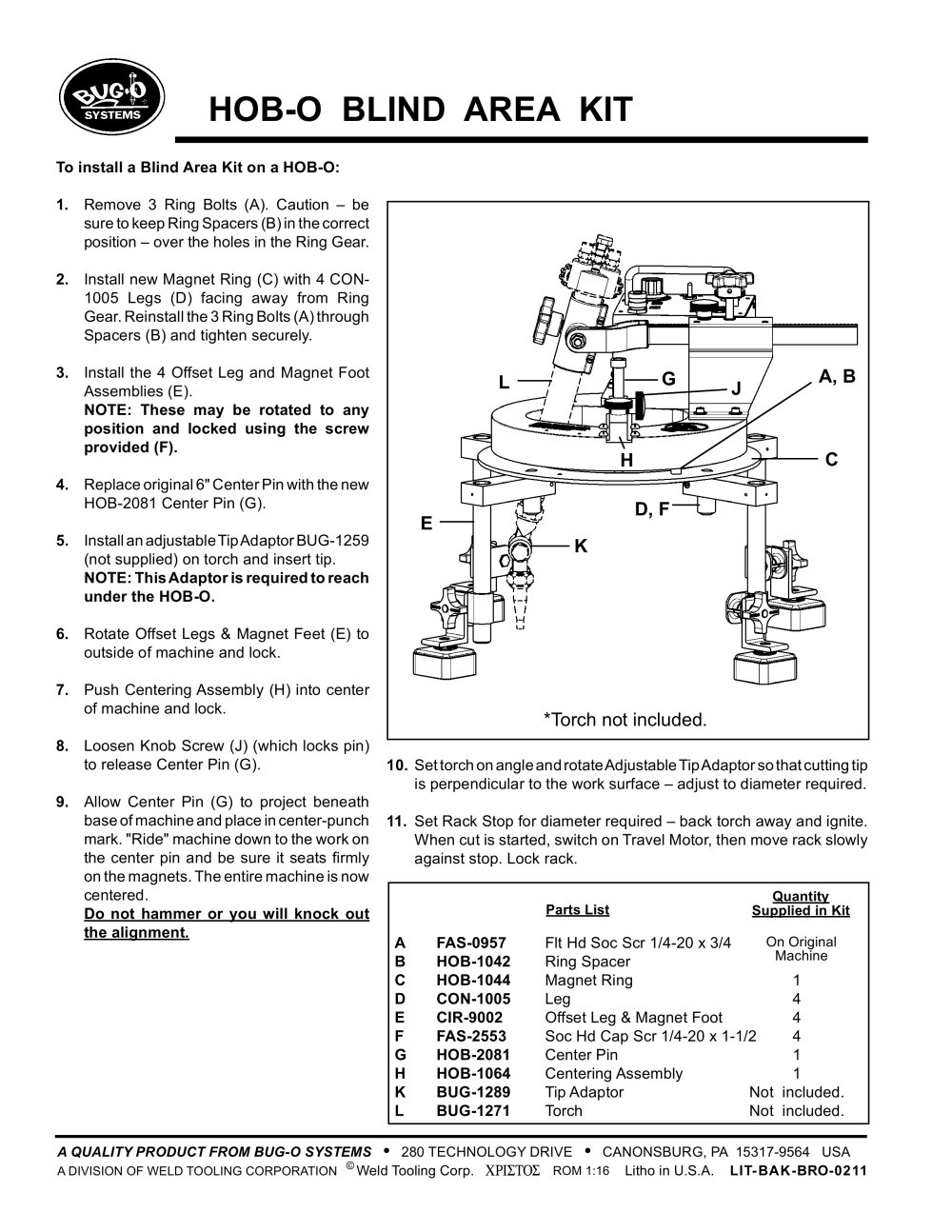

BLIND AREA KIT

To install a Blind Area Kit on a HOB-O:1. Remove 3 Ring Bolts (A). Caution – besure to keep Ring Spacers (B) in the correct position – over the holes in the Ring Gear. 2. Install new Magnet Ring (C) with 4 CON-1005Legs (D) facing away from Ring Gear. Reinstall the 3 Ring Bolts (A) through Spacers (B) and tighten securely. 3. Install the 4 Offset Leg and Magnet FootAssemblies (E). NOTE: These may be rotated to any position and locked using the screw provided (F).4. Replace original 6" Center Pin with the newHOB-2081 Center Pin (G). 5. Install an adjustable Tip Adaptor BUG-1259 (notsupplied) on torch and insert tip. NOTE: This Adaport is required to reach under the HOB-O.6. Rotate Offset Legs & Magnet Feet (E) tooutside of machine and lock.

HFDCBGJ AE K

7. Push Centering Assembly (H) into center ofmachine and lock. 8. Loosen Knob Screw (J) (which locks pin) torelease Center Pin (G). 9. Allow Center Pin (G) to project beneath base ofmachine and place in center-punch mark. "Ride" machine down to the work on the center pin and be sure it seats firmly on the magnets. The entire machine is now centered. Do not hammer or you will knock out the alignment.10. Set torch on angle and rotate Adjustable TipAdaptor so that cutting tip is perpendicular to the work surface – adjust to diameter required.
Quantity Parts List Supplied in Kit 11. Set Rack Stop for diameter required – backtorch away and ignite. When cut is started, switch on Travel Motor, then move rack slowly against stop. Lock rack. AFAS-0957 Flt Hd Soc Scr 1/4-20 x 3/4
On OriginalMachine BHOB-1042 Ring Spacer CHOB-1044 Magnet Ring1 DCON-1005 Leg4 ECIR-9002 Offset Leg & Magnet Foot4 FFAS-2553 Soc Hd Cap Scr 1/4-20 x 1-1/24 GHOB-2081 Center Pin1 KARM-2218 Sleeve-Magnet Cover4
