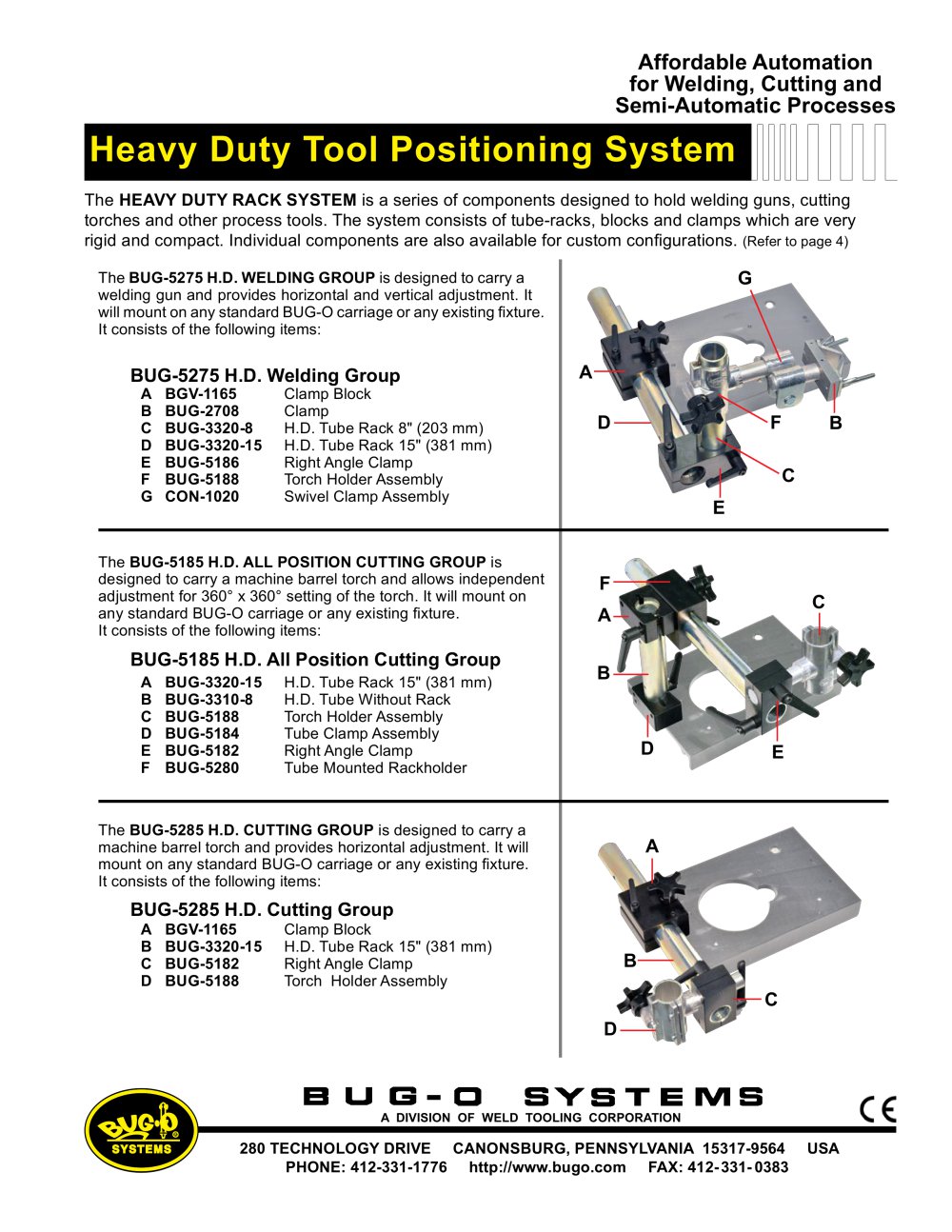

Affordable Automation for Welding, Cutting and Semi-Automatic Processes Heavy Duty Tool Positioning System The HEAVY DUTY RACK SYSTEM is a series of components designed to hold welding guns, cutting torches and other process tools. The system consists of tube-racks, blocks and clamps which are very rigid and compact. Individual components are also available for custom configurations. (Refer to page 4) The BUG-5275 H.D. WELDING GROUP is designed to carry a welding gun and provides horizontal and vertical adjustment. It will mount on any standard BUG-O carriage or any existing fixture. It consists of the following items: Clamp Block Clamp H.D. Tube Rack 8" (203 mm) H.D. Tube Rack 15" (381 mm) Right Angle Clamp Torch Holder Assembly Swivel Clamp Assembly The BUG-5185 H.D. ALL POSITION CUTTING GROUP is designed to carry a machine barrel torch and allows independent adjustment for 360° x 360° setting of the torch. It will mount on any standard BUG-O carriage or any existing fixture. It consists of the following items: BUG-5185 H.D. All Position Cutting Group A BUG-3320-15 H.D. Tube Rack 15" (381 mm) H.D. Tube Without Rack Torch Holder Assembly Tube Clamp Assembly Right Angle Clamp Tube Mounted Rackholder The BUG-5285 H.D. CUTTING GROUP is designed to carry a machine barrel torch and provides horizontal adjustment. It will mount on any standard BUG-O carriage or any existing fixture. It consists of the following items: Clamp Block B BUG-3320-15 H.D. Tube Rack 15" (381 mm) C BUG-5182 Right Angle Clamp D BUG-5188 Torch Holder Assembly A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 PHONE: 412-331-1776 http://www.bugo.com FAX: 412- 331- 0383
Open the catalog to page 1Heavy Duty Tool Positioning System - Panographs HEAVY DUTY PANOGRAPHS are designed to carry a cutting torch or welding gun along an irregular or wavy surface and maintain nozzle-to-work distance. They will mount on any standard BUG-O carriage. H BUG-3310-8 H.D. Tube Without Rack I BUG-5188 Torchholder Assembly J BUG-5182 Right Angle Clamp K PAN-1145 Swivel Wheel Assembly L BUG-2708 Clamp M CON-1020 Swivel Clamp Assembly Clamp Block Assembly 3" (74 mm) H.D. Tube Rack Rod Clamp Torchholder Assembly H.D. Spring Tube Assembly Mounting Arm Assembly Clamp Assembly BUG-3340 CORNER FOLLOWER The...
Open the catalog to page 2Heavy Duty Tool Positioning System - COMPONENTS For those who wish to build their own Heavy Duty Rack System, the following parts are available: BUG-3320-_" (Specify Length) H.D. Tube Rack At the heart of the Heavy Duty Rack System is the BUG-3320-_" HEAVY DUTY TUBE RACK. This rack consists of a 1-3/8" (35 mm) diameter steel tube that has a steel 32 pitch rack secured into a machined groove. Choose the length that best suits your application. Standard Lengths Available (Specify Length) 8" (203 mm) 15" (381 mm) 24" (609 mm) 30" (760 mm) 44" (1120 mm) At one end of the Heavy Duty Tube Rack...
Open the catalog to page 3Heavy Duty Tool Positioning System - ACCESSORIES CON-1020 Swivel Clamp Assembly [for 7/8" (22.2 mm) rod] BUG-9180_ 7/8" (22.2 mm) Rod (Specify Length) Additional lengths available. BUG-_3310 1-3/8" (35 mm) H.D. Tube w/o rack. (Specify Length) Additional lengths available. BUG-5186 Right Angle Clamp BUG-5182 Right Angle Clamp PAN-1164 Spacer Block BUG-5184 Tube Clamp Assembly (used w/ limit switch) 1-3/8" (35 mm) BUG-5245 Welding Gun Mounting Assembly BUG-5280 Tube Mounting BUG-5189 Clamp Block Assembly Rackholder BUG-5462 Right Angle Clamp Assembly [for 7/8" (22.2 mm) Rods The BGV-1165...
