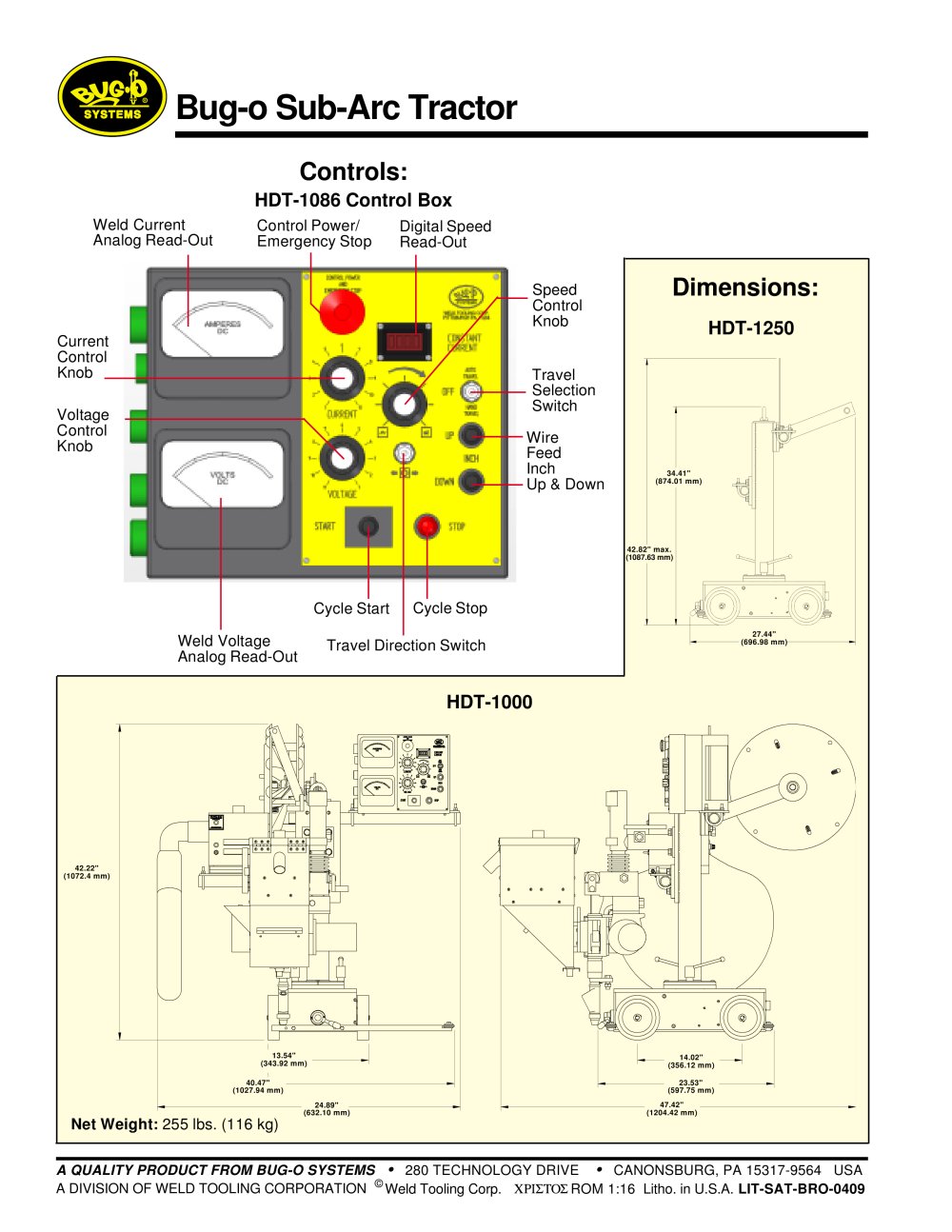

Dimensions: Bug-o Sub-Arc Tractor HDT-1000 Net Weight: 255 lbs. (116 kg) 14.02" (356.12 mm) 23.53" (597.75 mm) 47.42" (1204.42 mm) 42.22" (1072.4 mm) 13.54" (343.92 mm) 40.47" (1027.94 mm) 24.89" (632.10 mm) HDT-1250 34.41" (874.01 mm) 42.82" max. (1087.63 mm) 27.44" (696.98 mm) Controls: HDT-1086 Control Box Weld Current Analog Read-Out Weld Voltage Analog Read-Out Cycle Start Control Power/ Emergency Stop Voltage Control Knob Current Control Knob Speed Control Knob Cycle Stop Wire Feed Inch Up & Down Digital Speed Read-Out Travel Selection Switch Travel Direction Switch A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho. in U.S.A. LIT-SAT-BRO-0409
