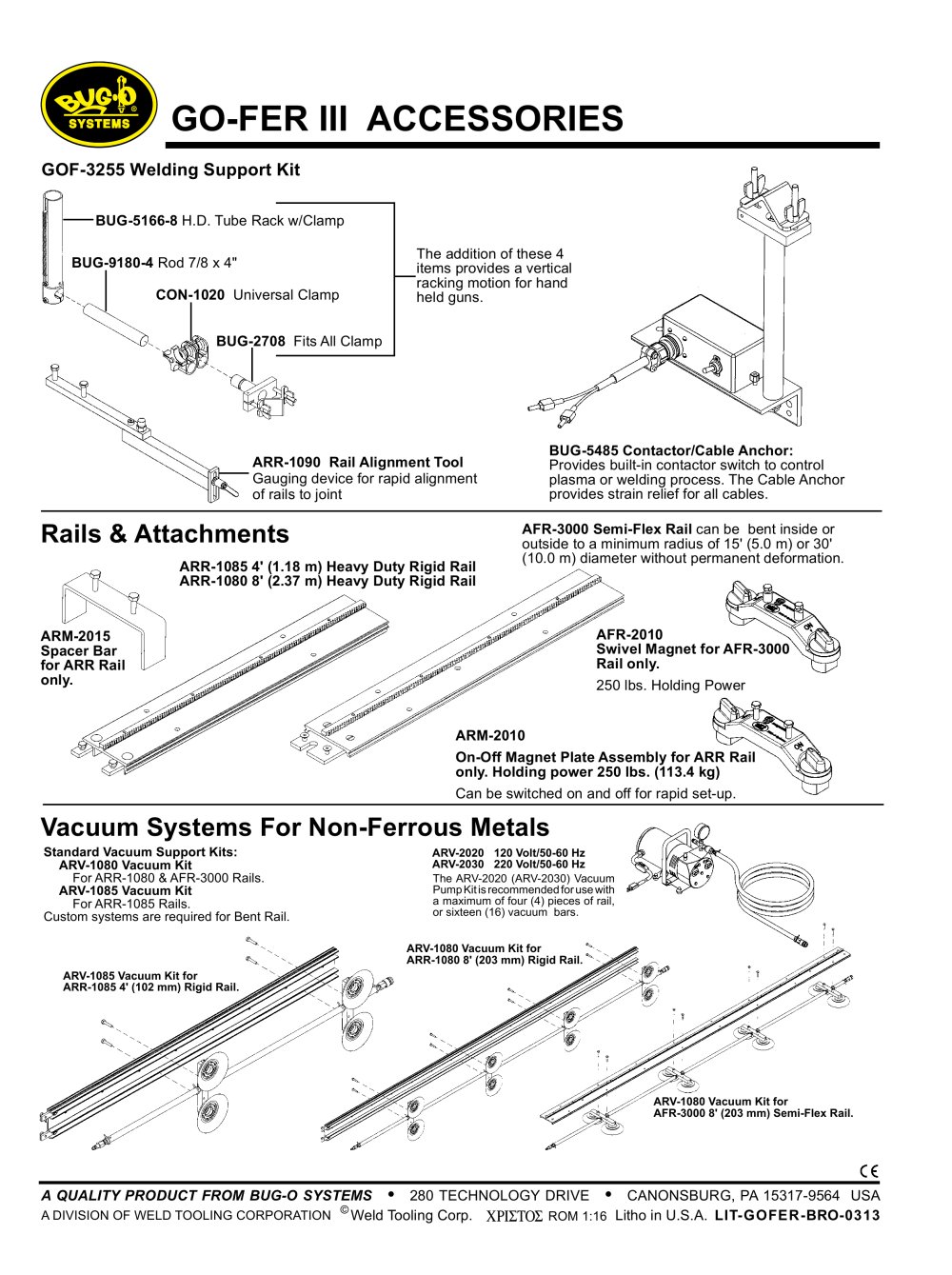

GO-FER III ACCESSORIES

BUG-5166-8 H.D. Tube Rack w/Clamp BUG-9180-4 Rod 7/8 x 4" CON-1020 Universal Clamp BUG-2708 Fits All Clamp BUG-5485 Contactor/Cable Anchor: Provides built-in contactor switch to control plasma or welding process. The Cable Anchor provides strain relief for all cables. The addition of these 4items provides a vertical racking motion for hand held guns.

Rails & Attachments

AFR-3000 Semi-Flex Rail can be bent inside oroutside to a minimum radius of 15' (5.0 m) or 30' (10.0 m) diameter without permanent deformation. ARR-1085 4' (1.18 m) Heavy Duty Rigid Rail ARR-1080 8' (2.37 m) Heavy Duty Rigid RailARM-2505Spacer Bar for ARR Rail only.ARM-2500On-Off Magnet Plate Assembly for ARR Rail only. Holding power 100 lbs. (45 kg) ARM-2425 Swivel Magnet for AFR-3000 Rail only. 250 lbs. Holding Power Can be switched on and off for rapid set-up.

Vacuum Systems For Non-Ferrous Metals

Standard Vacuum Support Kits:ARV-1080 Vacuum Kit ARV-2020120 Volt/50-60 HzARV-2030220 Volt/50-60 Hz For ARR-1080 & AFR-3000 Rails. The ARV-2020 (ARV-2030) VacuumPump Kit is recommended for use witha maximum of four (4) pieces of rail, or sixteen (16) vacuum bars. ARV-1085 Vacuum Kit For ARR-1085 Rails.Custom systems are required for Bent Rail. ARV-1080 Vacuum Kit forARR-1080 8' (203 mm) Rigid Rail.ARV-1085 Vacuum Kit forARR-1085 4' (102 mm) Rigid Rail. ARV-1080 Vacuum Kit forAFR-3000 8' (203 mm) Semi-Flex Rail. A QUALITY PRODUCT FROM BUG-O SYSTEMS
©

?

280 TECHNOLOGY DRIVE

?

CANONSBURG, PA USA 15317-9564Litho in U.S.A.
A DIVISION OF WELD TOOLING CORPORATION Weld Tooling Corp.
ROM 1:16 LIT-GOFER-BRO-0908
