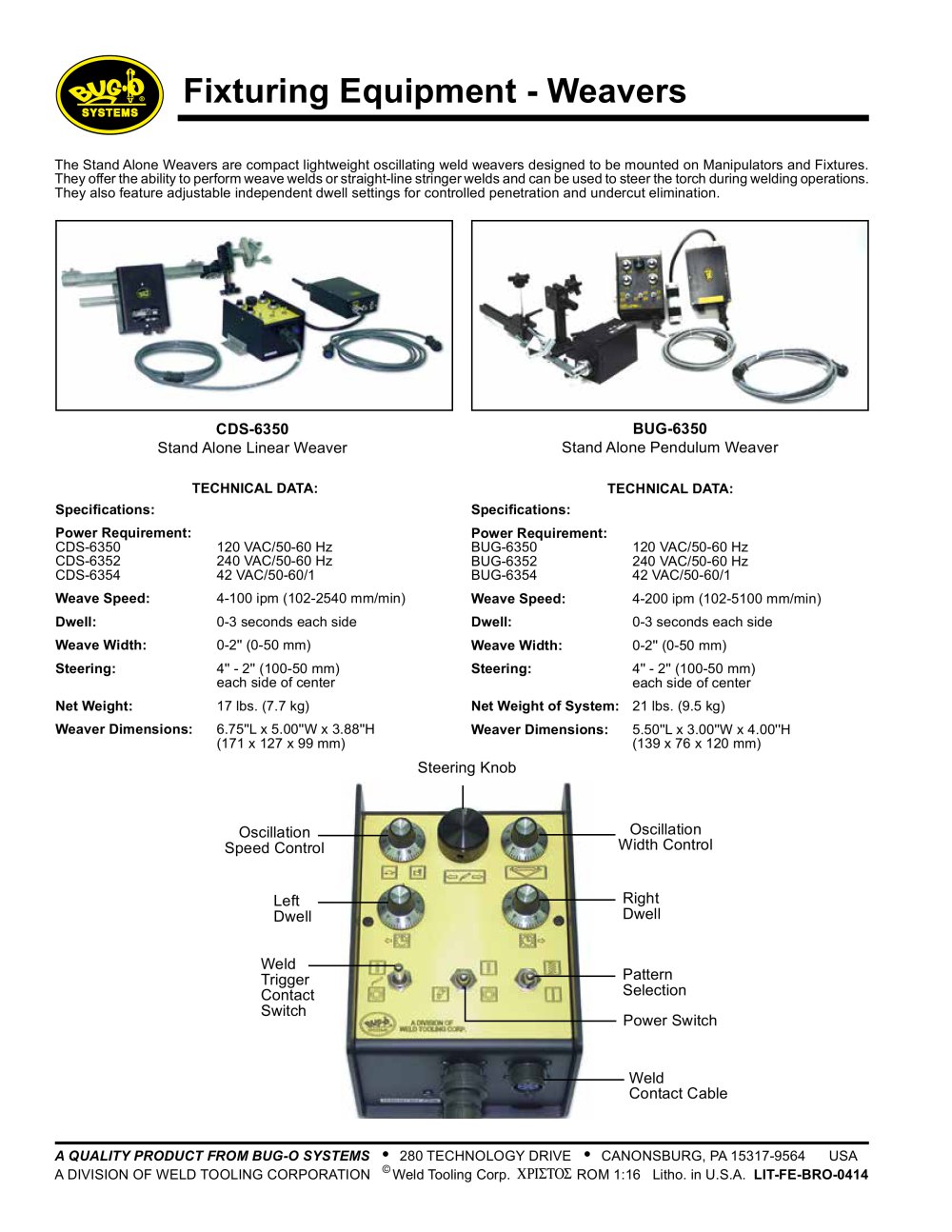

CDS-6350 Stand Alone Linear Weaver BUG-6350 Stand Alone Pendulum Weaver Positioning Equipment - Weavers The Stand Alone Weavers are compact lightweight oscillating weld weavers designed to be mounted on Manipulators and Fixtures. They offer the ability to perform weave welds or straight-line stringer welds and can be used to steer the torch during welding operations. They also feature adjustable independent dwell settings for controlled penetration and undercut elimination. TECHNICAL DATA: Specifications: Power Requirement: CDS-6350 120 VAC/50-60 Hz CDS-6352 240 VAC/50-60 Hz CDS-6354 42 VAC/50-60/1 Weave Speed: 4-100 ipm (102-2540 mm/min) Dwell: 0-3 seconds each side Weave Width: 0-2'' (0-50 mm) Steering: 4'' - 2'' (100-50 mm) each side of center Net Weight: 17 lbs. (7.7 kg) Weaver Dimensions: 6.75''L x 5.00''W x 3.88''H (171 x 127 x 99 mm) TECHNICAL DATA: Specifications: Power Requirement: BUG-6350 120 VAC/50-60 Hz BUG-6352 240 VAC/50-60 Hz BUG-6354 42 VAC/50-60/1 Weave Speed: 4-200 ipm (102-5100 mm/min) Dwell: 0-3 seconds each side Weave Width: 0-2'' (0-50 mm) Steering: 4'' - 2'' (100-50 mm) each side of center Net Weight of System: 21 lbs. (9.5 kg) Weaver Dimensions: 5.50''L x 3.00''W x 4.00''H (139 x 76 x 120 mm) Weld Contact Cable Steering Knob Oscillation Speed Control Oscillation Width Control Right Dwell Left Dwell Power Switch Pattern Selection Weld Trigger Contact Switch A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho. in U.S.A. LIT-PE-BRO-0309
