Fixtures & Positioning Equipment - 3 / 4 Pages

Positioning Equipment

Torch Supports

Turning Roll Assembly

Welding Positioners
• DC Drive protected against
high frequency.
• Turn Table tilts from 0-1200.
• Spindle has 1.38" through
hole for pipe work or gas
purge.

Positioning Equipment
• DC Drive protected against
high frequency.
• Remote foot switch run/stop
controller.
• Forward/stop/reverse
switch with potentiometer
for stepless speed
adjustment.

• 8 slot turntable provides
quick mounting for holding
fixture.
• Timer controlled weld
period.
• Includes foot pedal.

Freestanding Torch Support
FTS-1020
The Freestanding Torch Support
FTS-1020 is a small manually operated
torch manipulator. Rack and pinion
movement on hardened “V” ways
35.5''
provides effortless and smooth (902mm)
positioning of cutting torch or welding
gun. The “T” base comes with predrilled holes for quick installation into
your fixture.
Total Vertical
Adjustment:
FTS-1020 shown above.

25'' (635 mm)

40.42''
(1.03 m)

Total Horizontal
25'' (635 mm)
Adjustment:

Net Weight: 35 lbs. (11.34 kg)

Freestanding Torch Support
FTS-1025 110 volt FTS-1025-240 240 volt
The NEW FTS-1025 Free Standing Torch
Support with Automatic Height Control is
a compact, easy to use system, designed to
maintain a constant torch-to-work distance
automatically. This system can be used for SubArc, Innershield and MIG welding The actual weld
current is sensed continuously using a shunt. The
signal is filtered, amplified and compared to a set
point value. Any error from the set point is noticed
by the controller and it will raise the torch up or
down to maintain precise torch to work distance
automatically.

BPG-450L Chuck sold separately.
Chuck capacity 1/4"-17 1/2" (4 mm-450 mm)

F

D

D

C

C

E

A


Item

B

2

A

B

Part #
Part #
BPT-100A BPT-200A
BPT-450M
BPT-100B BPT-200B

Power Input
1 Phase 110V 60 Hz
Capacity (lb) (Horiz./Vert) 220/165 440/330
Rated Center of Gravity
4
Rated Eccentricity (in)
4
Table Dimension D (in)
12-5/8
Rotation Speed (rpm)
A: 1~15/B: 0~4
Spindle Thru Hole (in)
1/1/2
Table Slot Bolt Size (in)
3/8
Earthing (amp)
300
Rotation Motor (hp)
1/20 1/12
Tilt Range (degree)
0-120
Welding Timer (second)
0-60
Overall Length A (in)
16-1/4
Overall Width B (in)
16-1/4
Overall Height C (in)
13-3/8
Center to Floor E (in)
10
Weight (lb/kg)
A: 82/37 B: 88/40

E

1 Phase 220V
990/660
2 (Max)
6 (Max)
17-11/16
0.12-2.5
1
1/2
300
1/6
0-135
0-60
25
24
25
21-1/4
280/127

Part #

Item BTR-0100

Part #
BTR-3504

Power Input
1 Phase 110V 60 Hz 1 Phase 220V 60 Hz
Turning Capacity (lb)
2200
7700
Load Capacity (lb)
(Drive & Idler)
2200
7700
Diameter Range, F (in)
1~31-3/8
3/8~55
Speed Range (in/min)
3-1/8~63
3~47
Rotation Motor (hp)
1/12
1/2
Roller Dia., D (in)
8
8
Roller Width, E (in)
2
4
Overall Length, A (in)
(Drive/Idler)
12-5/8 / 6-5/16
17/11
Overall Width, B (in)
(Drive Idler)
18-1/2
31-1/2/28
Overall Height, C (in)
13-5/16
20
Net Weight (lb)
(Drive/Idler)
81.5/37.5 242.3/121

Total Vertical
Adjustment:
Application of FTS-1025 Automatic Height
Control with Linear Weaver shown above.

35''
(889 mm)

25'' (635 mm)

Total Horizontal
25'' (635 mm)
Adjustment:

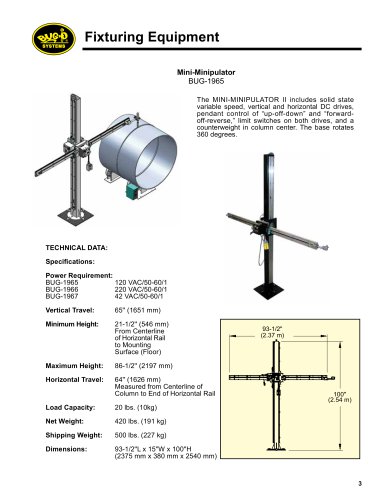

Mini-Minipulator
BUG-1965
The MINI-MINIPULATOR II includes solid state variable
speed, vertical and horizontal DC drives, pendant control
of “up-off-down” and “forward-off-reverse,” limit switches
on both drives, and a counterweight in
column center. The base rotates 360
degrees.

43''
(1.09 m)

Net Weight: 41 lbs. (19 kg)

TECHNICAL DATA:

93-1/2"
(2.37 m)

Specifications:
Power Requirement:
BUG-1965
120 VAC/50-60/1
BUG-1966
220 VAC/50-60/1
BUG-1967
42 VAC/50-60/1
Vertical Travel:

65'' (1651 mm)

Minimum Height:



21-1/2'' (546 mm)
From Centerline
of Horizontal Rail
to Mounting
Surface (Floor)

Maximum Height:

86-1/2'' (2197 mm)

Horizontal Travel:

64'' (1626 mm)
Measured from Centerline of Column to
End of Horizontal Rail

Load Capacity:

20 lbs. (10kg)

Net Weight:

420 lbs. (191 kg)

Shipping Weight:

500 lbs. (227 kg)

Dimensions:

93-1/2''L x 15''W x 100''H
(2375 mm x 380 mm x 2540 mm)

100''
(2.54 m)

3
