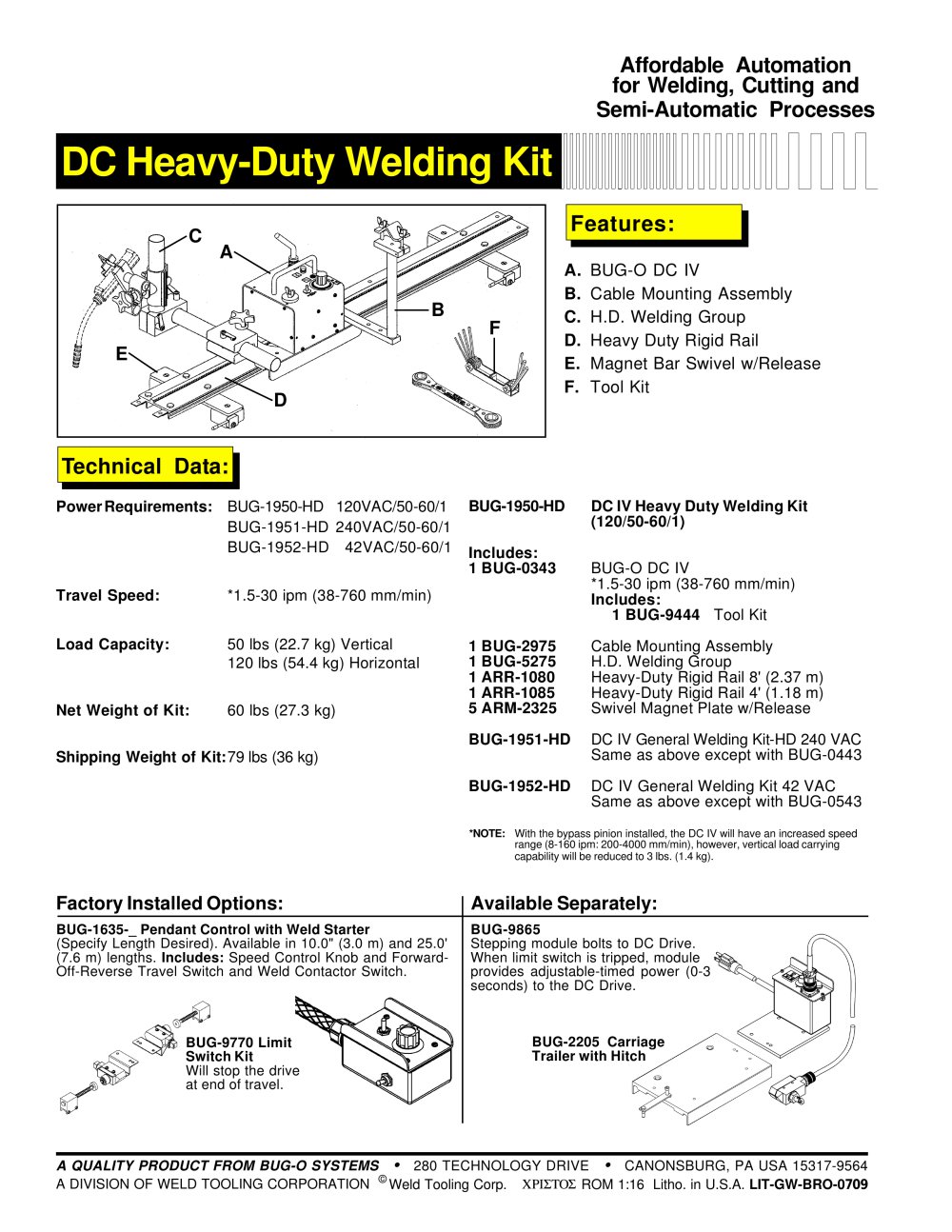

Technical Data: Power Requirements: BUG-1950-HD 120VAC/50-60/1 BUG-1951-HD 240VAC/50-60/1 BUG-1952-HD 42VAC/50-60/1 Travel Speed: *1.5-30 ipm (38-760 mm/min) Load Capacity: 50 lbs (22.7 kg) Vertical 120 lbs (54.4 kg) Horizontal Net Weight of Kit: 60 lbs (27.3 kg) Shipping Weight of Kit:79 lbs (36 kg) Features: A. BUG-O DC IV B. Cable Mounting Assembly C. H.D. Welding Group D. Heavy Duty Rigid Rail E. Magnet Bar Swivel w/Release F. Tool Kit BUG-1950-HD DC IV Heavy Duty Welding Kit (120/50-60/1) Includes: 1 BUG-0343 BUG-O DC IV *1.5-30 ipm (38-760 mm/min) Includes: 1 BUG-9444 Tool Kit 1 BUG-2975 Cable Mounting Assembly 1 BUG-5275 H.D. Welding Group 1 ARR-1080 Heavy-Duty Rigid Rail 8' (2.37 m) 1 ARR-1085 Heavy-Duty Rigid Rail 4' (1.18 m) 5 ARM-2325 Swivel Magnet Plate w/Release BUG-1951-HD DC IV General Welding Kit-HD 240 VAC Same as above except with BUG-0443 BUG-1952-HD DC IV General Welding Kit 42 VAC Same as above except with BUG-0543 D E C A B *NOTE: With the bypass pinion installed, the DC IV will have an increased speed range (8-160 ipm: 200-4000 mm/min), however, vertical load carrying capability will be reduced to 3 lbs. (1.4 kg). Affordable Automation for Welding, Cutting and Semi-Automatic Processes Factory Installed Options: BUG-1635-_ Pendant Control with Weld Starter (Specify Length Desired). Available in 10.0" (3.0 m) and 25.0' (7.6 m) lengths. Includes: Speed Control Knob and Forward- Off-Reverse Travel Switch and Weld Contactor Switch. BUG-9865 Stepping module bolts to DC Drive. When limit switch is tripped, module provides adjustable-timed power (0-3 seconds) to the DC Drive. Available Separately: DC Heavy-Duty Welding Kit A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA USA 15317-9564 A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho. in U.S.A. LIT-GW-BRO-0709 F BUG-9770 Limit Switch Kit Will stop the drive at end of travel. BUG-2205 Carriage Trailer with Hitch
