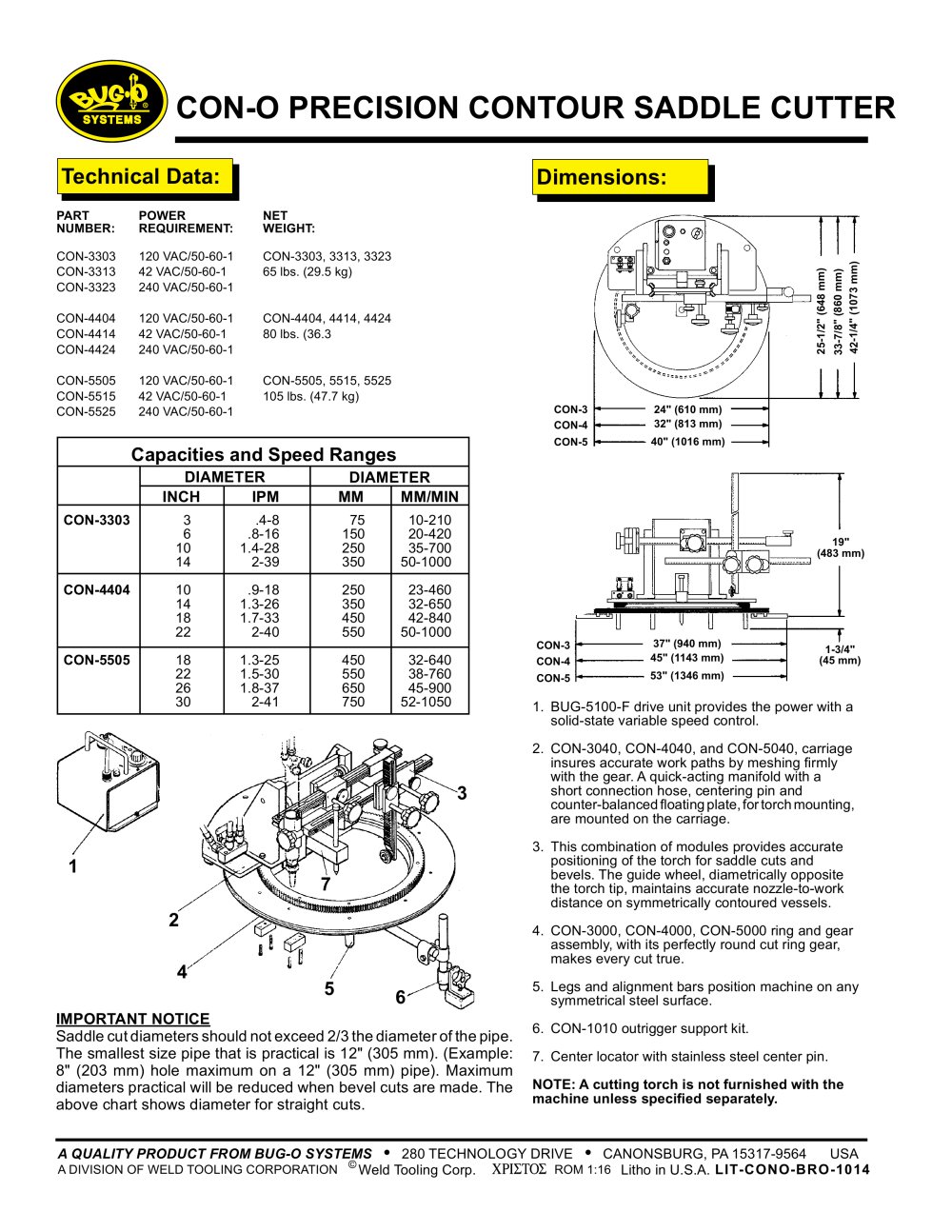

CON-O PRECISION CONTOUR SADDLE CUTTER Technical Data: Dimensions: PART POWER NET SHIPPING NUMBER: REQUIREMENT: WEIGHT: WEIGHT: CON-3303 120 VAC/50-60-1 CON-3303, 3313, 3323 CON-3313 42 VAC/50-60-1 65 lbs. (29.5 kg) 83 lbs. (37.6 kg) CON-3323 240 VAC/50-60-1 CON-4404 120 VAC/50-60-1 CON-4404, 4414, 4424 CON-4414 42 VAC/50-60-1 80 lbs. (36.3 98 lbs. (44.5 kg) CON-4424 240 VAC/50-60-1 CON-5505 120 VAC/50-60-1 CON-5505, 5515, 5525 CON-5515 42 VAC/50-60-1 105 lbs. (47.7 kg) 130 lbs. (59.0 kg) CON-5525 240 VAC/50-60-1 CON-3303 3 .4-8 75 10-210 6 .8-16 150 20-420 10 1.4-28 250 35-700 14 2-39 350 50-1000 CON-4404 10 .9-18 250 23-460 14 1.3-26 350 32-650 18 1.7-33 450 42-840 22 2-40 550 50-1000 CON-5505 18 1.3-25 450 32-640 22 1.5-30 550 38-760 26 1.8-37 650 45-900 30 2-41 750 52-1050 DIAMETER DIAMETER INCH IPM MM MM/MIN Capacities and Speed Ranges IMPORTANT NOTICE Saddle cut diameters should not exceed 2/3 the diameter of the pipe. The smallest size pipe that is practical is 12" (305 mm). (Example: 8" (203 mm) hole maximum on a 12" (305 mm) pipe). Maximum diameters practical will be reduced when bevel cuts are made. The above chart shows diameter for straight cuts. 1 2 4 5 6 3 1. BUG-5100-F drive unit provides the power with a solid-state variable speed control. 2. CON-3040, CON-4040, and CON-5040, carriage insures accurate work paths by meshing firmly with the gear. A quick-acting manifold with a short connection hose, centering pin and counter-balanced floating plate, for torch mounting, are mounted on the carriage. 3. This combination of modules provides accurate positioning of the torch for saddle cuts and bevels. The guide wheel, diametrically opposite the torch tip, maintains accurate nozzle-to-work distance on symmetrically contoured vessels. 4. CON-3000, CON-4000, CON-5000 ring and gear assembly, with its perfectly round cut ring gear, makes every cut true. 5. Legs and alignment bars position machine on any symmetrical steel surface. 6. CON-1010 outrigger support kit. 7. Center locator with stainless steel center pin. NOTE: A cutting torch is not furnished with the machine unless specified separately. CON-3 CON-4 CON-5 24" (610 mm) 32" (813 mm) 40" (1016 mm) 25-1/2" (648 mm) 33-7/8" (860 mm) 42-1/4" (1073 mm) CON-3 CON-4 CON-5 37" (940 mm) 45" (1143 mm) 53" (1346 mm) 19" (483 mm) 1-3/4" (45 mm) A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-CONO-BRO-0309
